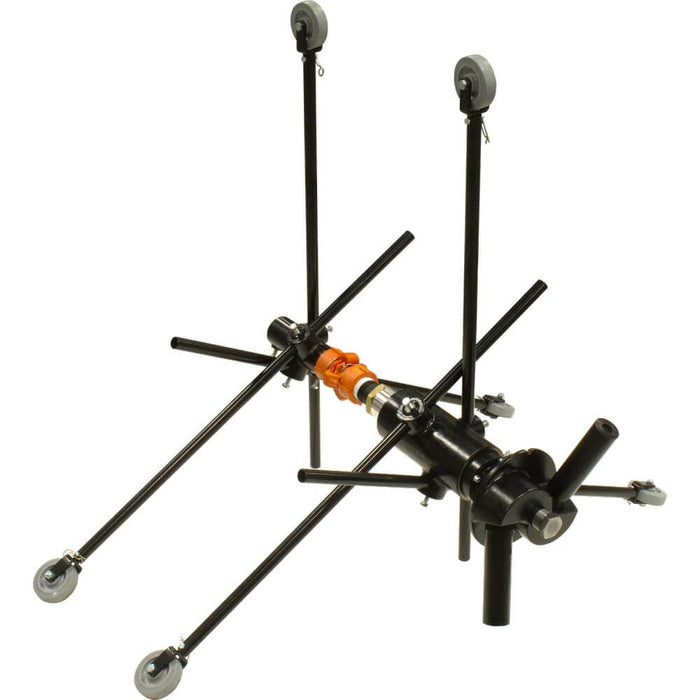

Typhoon Pipe Blaster Large Range Carriage Set – Adjustable 40″ to 60″

Part Number: 016500
Category: Sandblasting & Abrasive Accessories
Type: Typhoon Pipe Blaster Large Range Carriage Set – Adjustable 40″ to 60″

The 016500 Large Range Carriage Set extends the Typhoon™ Pipe Blaster’s reach for oversized pipe interiors, delivering stable centering and smooth tracking in diameters from 40″ to 60″. Engineered for large-scale industrial applications, this system keeps both the tool and lance aligned for uniform surface preparation while minimizing vibration and misalignment. Its streamlined leg assembly design allows fast adjustment in the field, ensuring reliable performance in wide-diameter pipelines.

Product Specifications

• Model: 016500

• Type: Optional Large Range Carriage Set for Typhoon™ Pipe Blaster

• Adjustment Range: 40″ – 60″ Internal Diameter

• Weight: 20.80 lbs

• Condition: New

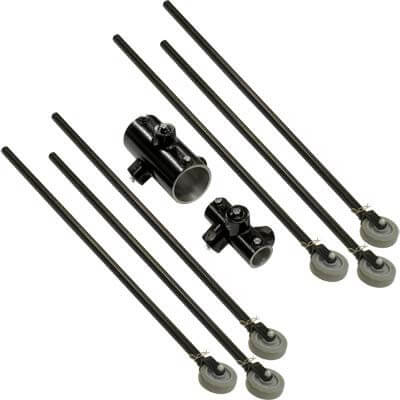

Included Components:

• (1) Front carriage body

• (1) Rear lance carriage body

• (3) Leg assemblies

Features & Benefits

• Expands Typhoon™ capability for large-diameter pipes

• Maintains precise centering of tool and lance

• Promotes smooth tracking and consistent blast coverage

• Reduces vibration and angular misalignment

• Quick-adjust design for efficient field setup

Installation Notes

1. Slide the back end of the tool into the larger front carriage body.

2. Position the front of the body flush with the front face of the centrifugal speed limiter housing.

3. Ensure the body is located in front of the breather vent holes on the seal retainer body—do not block the vent holes.

4. Tighten the two (2) screws on the body to secure it to the tool.

5. Fit the smaller lance carriage body to the lance pipe, positioning it to prevent bowing and angular misalignment.

6. Install the appropriate leg assemblies on both carriage bodies and adjust until the tool and lance are centered.

7. Confirm that all wheels are aligned with the direction of travel.

Note: Large and mid-range carriages track best when configured in a “Y” formation, with one leg pointing downward.
