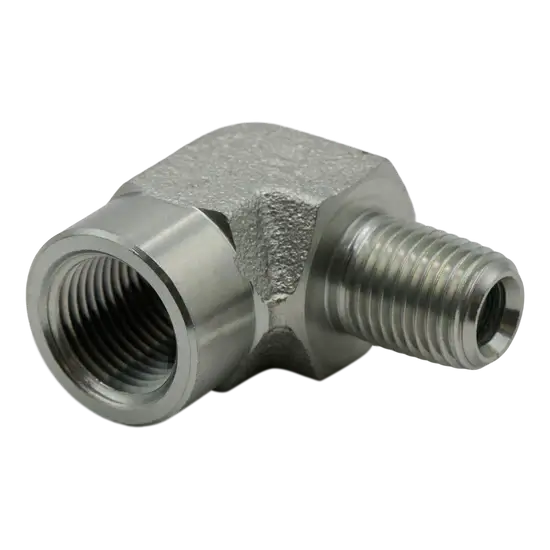

Steel Compact Street Elbow 3/8" MPT x 3/8" FPT 4000 PSI – OEM Replacement Fitting
Part Number: 4614
Category: Pressure Washer Parts → Fittings & Adapters → Steel Elbows
Type: Steel Compact 90° Street Elbow Fitting
The Steel Compact Street Elbow 3/8" MPT x 3/8" FPT (Part #4614) is a heavy-duty OEM replacement fitting designed to provide a reliable 90-degree change in flow direction while minimizing space requirements in pressure washer systems, pumps, hydraulic equipment, compressed air systems, and industrial fluid transfer applications. Featuring a 3/8-inch Male Pipe Thread (MPT) connection on one end and a 3/8-inch Female Pipe Thread (FPT) connection on the other, this compact street elbow allows for direct connection between threaded components without the need for additional adapters.
Key Features & Benefits
- Genuine OEM replacement fitting
- Compact 90-degree street elbow design
- 3/8" MPT x 3/8" FPT connections
- Heavy-duty steel construction
- Rated up to 4000 PSI
- Space-saving compact configuration
- Direct male-to-female connection design
- Leak-resistant threaded connections
- Suitable for high-pressure applications
- Simplifies plumbing layouts
- Durable commercial-grade construction
- Long service life and reliable performance
Technical Specifications
Part Number: 4614
Product Type: Compact 90° Street Elbow Fitting
Connection Size I: 3/8" MPT
Connection Size II: 3/8" FPT
Thread Type: Male Pipe Thread (MPT) x Female Pipe Thread (FPT)
Material: Steel
Maximum Pressure: 4000 PSI
Configuration: Compact 90° Street Elbow
OEM Replacement: Yes
Application: Fluid Direction Change and Component Connection
Common Applications
- Pressure washer systems
- High-pressure pump assemblies
- Hydraulic equipment
- Compressed air systems
- Water transfer systems
- Industrial fluid transfer equipment
- Chemical application equipment
- Agricultural equipment
- Wash-down systems
- Commercial cleaning equipment
- Pressure gauge and accessory installations
Performance Benefits
- Provides efficient 90-degree flow redirection
- Compact design saves installation space
- Allows direct connection between threaded components
- Helps reduce hose and plumbing stress
- Supports high-pressure operation up to 4000 PSI
- Durable steel construction for demanding environments
- Leak-resistant threaded connections
- Reliable long-term performance
Signs Replacement May Be Needed
Replace the fitting if you notice:
- Fluid or air leaks
- Damaged or stripped threads
- Visible corrosion or rust
- Cracks or deformation in the fitting body
- Restricted flow due to internal damage
- Loose or unreliable connections
- Excessive wear from long-term service
Installation Notes
- Shut off system pressure before servicing.
- Inspect all mating threads for wear or damage.
- Apply appropriate thread sealant or PTFE thread tape.
- Thread the male end into the receiving component.
- Connect the mating component to the female threaded port.
- Tighten securely using the proper tools.
- Pressurize the system and inspect for leaks.
Important: Verify compatibility with your system's thread sizes and pressure requirements before installation. Always ensure the fitting's pressure rating meets or exceeds system operating pressure.
Maintenance Recommendations
- Inspect fittings regularly for leaks.
- Check threaded connections during routine maintenance.
- Replace damaged or worn fittings promptly.
- Keep threads clean and free from debris.
- Verify proper sealing after servicing.
- Monitor fitting condition during operation.
