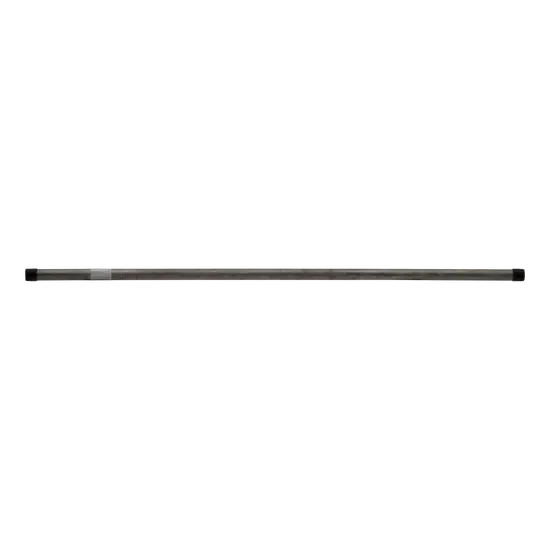

Stainless Steel Pressure Washer Wand Pipe – 1/2" x 48" Replacement Lance, 680268
Part Number: 680268
Category: Pressure Washer Parts & Accessories → Spray Guns, Wands & Lances → Pressure Washer Wands & Lances
Type: Stainless Steel Pressure Washer Wand Pipe – 1/2" x 48" Replacement Lance
The Stainless Steel Pressure Washer Wand Pipe (Part #680268) is a professional-grade 48-inch replacement pressure washer lance manufactured by Mecline for commercial and industrial pressure washing applications. Constructed from durable stainless steel, this heavy-duty wand provides extended reach while delivering dependable performance for high-pressure cleaning tasks.
Key Features & Benefits
- Part Number: 680268
- Genuine Mecline replacement pressure washer wand pipe
- 48-inch stainless steel lance
- 1/2" MPT inlet
- 1/2" BSP outlet
- Rated for up to 4,000 PSI
- Maximum flow rate: 32 GPM
- Maximum operating temperature: 320°F
- Corrosion-resistant stainless steel construction
- Extends reach for safer and more efficient cleaning
- Compatible with hot- and cold-water pressure washer systems
Technical Specifications
Part Number: 680268
Manufacturer: Mecline
Product Type: Pressure Washer Wand Pipe (Lance)
Length: 48 in.
Material: Stainless Steel
Inlet Connection: 1/2" MPT
Outlet Connection: 1/2" BSP
Maximum Working Pressure: 4,000 PSI
Maximum Flow Rate: 32 GPM
Maximum Temperature: 320°F
Compatible Applications
Ideal for use with:
- Commercial pressure washers
- Industrial pressure washing systems
- Hot-water pressure washers
- Cold-water pressure washers
- Spray guns with compatible 1/2" MPT connections
- Surface cleaning applications
- Fleet washing
- Heavy equipment cleaning
- Agricultural equipment
- Building exterior cleaning
- Industrial washdown systems
Function of the Pressure Washer Wand
The Mecline 680268 Stainless Steel Wand Pipe extends the distance between the spray gun and nozzle, providing greater reach and improved control during pressure washing applications. It helps to:
- Reach elevated and difficult-to-access surfaces
- Reduce bending and operator fatigue
- Improve safety and comfort during extended cleaning
- Maintain consistent water flow and pressure
- Support high-flow commercial and industrial pressure washing applications
Its corrosion-resistant stainless steel construction provides long-lasting durability in demanding environments.
Common Signs Replacement Is Needed
Replace the wand pipe if you notice:
- Bent or damaged lance
- Corrosion or excessive wear
- Damaged inlet or outlet threads
- Water leaks at threaded connections
- Restricted water flow
- Cracks caused by impact or freezing
- Difficulty attaching nozzles or accessories
Replacing a damaged wand restores safe operation and optimal cleaning performance.
Installation & Service Notes
Turn off the pressure washer and relieve all system pressure before installing the replacement lance.
Attach the 680268 Stainless Steel Wand Pipe to a compatible spray gun using the 1/2" MPT inlet and install a compatible nozzle or accessory to the 1/2" BSP outlet. Tighten all threaded connections securely using an appropriate thread sealant where required, and inspect the assembly for leaks before returning the equipment to service.
Important: Never exceed the maximum working pressure of 4,000 PSI, 32 GPM, or the maximum operating temperature of 320°F. Ensure all connected spray guns, nozzles, fittings, and accessories are properly rated for the system's pressure and temperature.
Maintenance Recommendations
- Flush the wand with clean water after each use.
- Inspect regularly for dents, cracks, or thread damage.
- Check all threaded connections for leaks.
- Keep the stainless steel exterior clean to prevent buildup.
- Replace worn fittings or damaged components promptly.
- Store the lance in a clean, dry location when not in use.
- Operate only within the specified pressure, flow, and temperature ratings to maximize service life and maintain safe, reliable performance.
