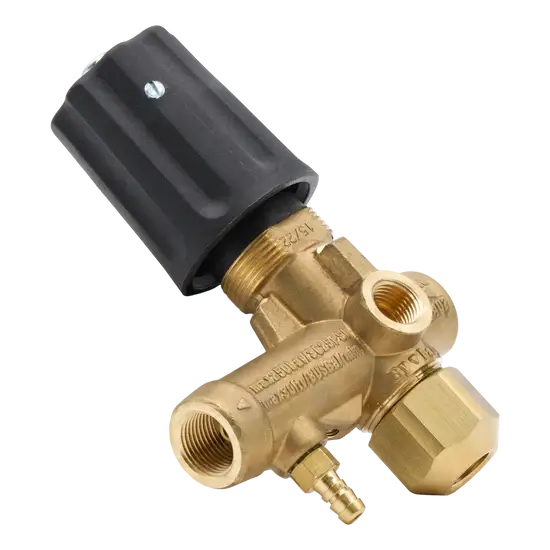

ST-261-I Pressure Washer Unloader Valve with 2.1 mm Injector – OEM Replacement Part
Part Number: 1453
Category: Pressure Washer Parts → Unloader Valves → Pressure Actuated Unloader Valves
Type: Suttner ST-261-I Pressure Washer Unloader Valve with 2.1 mm Injector
The Suttner ST-261-I Pressure Washer Unloader Valve (Part #1453) is a genuine OEM replacement pressure-actuated unloader valve featuring an integrated 2.1 mm chemical injector for commercial and industrial pressure washer systems. Manufactured by Suttner, this heavy-duty unloader is designed for systems operating up to 8 GPM and 3,625 PSI, providing dependable pressure regulation, automatic bypass operation, and efficient downstream detergent injection.
Key Features & Benefits
- Genuine Suttner OEM replacement unloader valve
- Integrated 2.1 mm downstream chemical injector
- Pressure-actuated bypass operation
- Rated for systems up to 8 GPM
- Maximum operating pressure of 3,625 PSI
- Protects pumps from damaging pressure spikes
- Built-in gauge port for pressure monitoring
- Heavy-duty brass construction for commercial applications
- Simplifies detergent injection system installation
- Reliable bypass performance
- Long service life under demanding operating conditions
- OEM-quality fit and performance
Technical Specifications
Part Number: 1453
Manufacturer: Suttner
Model: ST-261-I
Product Type: Pressure Actuated Unloader Valve with Injector
Maximum Flow Rate: 8 GPM
Maximum Pressure: 3,625 PSI
Maximum Temperature: 176°F
Injector Size: 2.1 mm
Inlet Connection: 3/8" FPT
Outlet Connection: 3/8" MPT
Bypass Connection: 1/4" FPT
Gauge Port: 1/4" FPT
Operation Type: Pressure Actuated
OEM Replacement: Yes
How the ST-261-I Works
The ST-261-I automatically regulates pressure while incorporating downstream chemical injection.
During Spraying
- Water flows through the unloader to the spray gun.
- The integrated injector can draw detergent into the water stream when used with a compatible downstream chemical system.
- Full operating pressure is maintained for effective cleaning.
During Bypass
- Releasing the spray gun causes system pressure to rise.
- The unloader piston shifts automatically.
- Water is diverted through the bypass circuit.
- Pump pressure is safely relieved, protecting the system from excessive pressure buildup.
This combination of pressure regulation and integrated chemical injection makes the ST-261-I an efficient solution for professional cleaning applications.
Common Applications
Commercial Pressure Washers
Ideal for:
- Mobile pressure washing trailers
- Fleet washing operations
- Building exterior cleaning
- Property maintenance
- Professional contract cleaning
Industrial Cleaning Equipment
Suitable for:
- Manufacturing facilities
- Agricultural equipment cleaning
- Equipment wash stations
- Municipal maintenance
- Industrial wash bays
Downstream Chemical Systems
Compatible with applications requiring:
- Soap application
- Detergent injection
- Degreaser application
- Vehicle wash chemicals
- General cleaning solutions
Performance Benefits
- Reliable pressure regulation
- Integrated detergent injection
- Smooth bypass operation
- Improved pump protection
- Reduced plumbing complexity
- Consistent cleaning performance
- Extended equipment lifespan
- Lower maintenance requirements
Signs an Unloader Valve Needs Replacement
Inspect or replace the valve if you notice:
- Pressure fluctuations
- Water leakage around the valve
- Reduced cleaning pressure
- Poor chemical draw
- Inconsistent bypass operation
- Delayed trigger response
- Internal wear or corrosion
Installation Notes
- Verify compatibility with your pressure washer's flow and pressure requirements.
- Install using the proper thread sealant on all threaded connections.
- Connect the inlet, outlet, bypass, and chemical supply line according to the system layout.
- Install a pressure gauge in the 1/4" gauge port for accurate pressure adjustment.
- Test both bypass operation and chemical injection before placing the unit into service.
- Ensure all hoses, fittings, and accessories are rated for the intended operating pressure.
Important: The integrated 2.1 mm injector is designed for compatible downstream chemical injection systems. Verify that your injector size matches your pressure washer's flow rate and detergent application requirements for optimal chemical draw.
Maintenance Recommendations
- Inspect the unloader regularly for leaks and wear.
- Keep the injector passage clean to maintain proper chemical flow.
- Flush detergent from the system after each use.
- Verify bypass operation during scheduled maintenance.
- Maintain clean inlet water filtration.
- Replace worn seals or rebuild the valve using genuine OEM Suttner repair parts as needed.
