Part Number: 16-075-21
Weight: 6.40 lbs

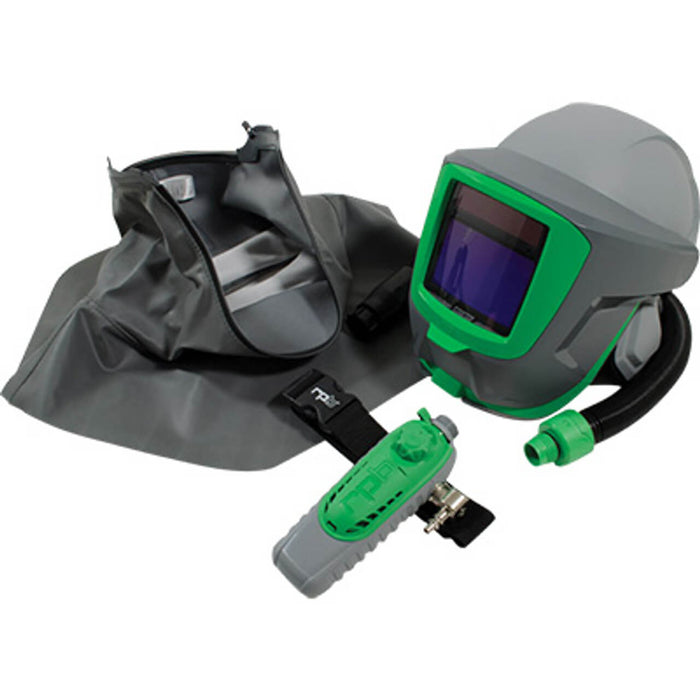

The 16-075-21 RPB® Z-Link+® Respirator is a high-performance, full-feature welding and grinding respirator engineered for extreme industrial environments. Designed around operator comfort, clarity, and protection, this configuration pairs the Zytec® Fire-Rated Shoulder Cape, Auto-Darkening Welding Visor (ADF), C40 Climate Control System, ANSI Z87+ safety lens, and ANSI Z89.1 hard hat to deliver top-tier respiratory, impact, and heat protection for metal fabrication professionals.

The Z-Link+ ADF system features a large 3.88" × 2.66" viewing area, a perfect 1/1/1/1 optical clarity rating, enhanced TIG detection, and internal adjustment controls for shade, delay, and sensitivity. When lifted, the ADF visor reveals the underlying ANSI Z87+ impact lens—ideal for grinding, setup, and inspection.

With the C40 Climate Control Device, operators can heat or cool incoming supplied air to manage comfort across all seasons and harsh work conditions. The Zytec® FR shoulder cape adds expanded high-heat, spark-resistant coverage for heavy welding and grinding tasks.

The Z-Link+® includes the Comfort-Link™ Fit System, fully adjustable 360° headband, removable padding, and an ergonomic design that reduces fatigue during long-duration work.

Specifications

Auto-Darkening Welding Filter (ADF) – Technical Specifications

Key Features & Benefits

Zytec® Fire-Rated Shoulder Cape

• High-heat and spark-resistant protection for welding, cutting, and grinding.

• Provides expanded upper-body shielding compared to face-seal-only versions.

• Fixed jaw ensures secure attachment and stable cape positioning.

Premium Auto-Darkening Welding Visor

• Large ADF window with top-tier optical clarity.

• Reduces eye strain, improves weld accuracy, and enhances safety.

• Flip-up design allows instant transition to grinding or inspection tasks.

• Impact lens below the ADF provides ANSI Z87+ protection when welding visor is lifted.

C40 Climate Control Device

• Heats or cools supplied air for year-round comfort.

• Helps manage heat stress and improve productivity in extreme environments.

• Simple temperature adjustment for personalized comfort.

Exceptional Visibility

• Wide-angle lens design for superior downward and peripheral vision.

• Helps reduce neck strain and enhances operator awareness.

Comfort-Link™ Fit System

• 360° adjustable headband allows precise eye and nose positioning.

• Molded interior padding distributes weight evenly to reduce fatigue.

• Removable side padding improves hygiene and comfort.

ANSI-Certified Head & Face Protection

• ANSI Z87+ certified impact lens.

• ANSI Z89.1 hard hat for overhead protection.

No Fit Test Required

• Loose-fitting design suitable for operators with facial hair.

• Ideal for multi-user or shift applications.

Optional Add-Ons & Accessories

Magnifying Lenses

• 16-875 – Magnifying Lens Holder

• 13-072-1 – 1.0 Lens

• 13-072-1.5 – 1.5 Lens

• 13-072-2 – 2.0 Lens

• 13-072-2.5 – 2.5 Lens

Alternate Cape Materials

• Tychem® QC – Wet painting

• Tychem® SL – Powder coating

• Zytec® FR – Welding & Grinding (included)

Alternate Visor Options

• Premium Clear (16-810)

• IR Shade 5 (16-810-IR5)

• Yellow (16-810-YT)

• Smoke (16-810-ST)

Additional Options

• Quiet-Link™ earmuff system

• Comms-Link™ communication system

• Vision-Link™ integrated LED task light

OEM Cross-Reference

Ideal Applications

• MIG, TIG, Stick & Flux-Core welding

• Grinding, cutting & fabrication

• Hot work environments

• Shipyards, foundries & heavy industry

• Automotive metalwork

• Industrial maintenance / repair
