Part Number: 16-015-11
Weight: 5.15 lbs

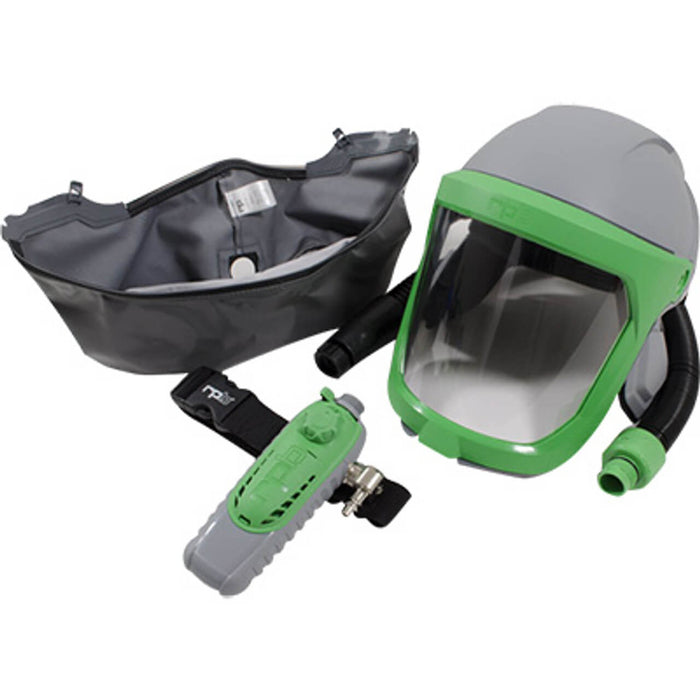

The 16-015-11 RPB® Z-Link® Respirator is a top-tier, multi-application supplied-air respirator engineered for heavy-duty welding, grinding, fabrication, and high-heat industrial environments. Outfitted with the Zytec® Fire-Rated Face Seal, C40 Climate Control Device, ANSI Z87+ impact-rated safety lens, and ANSI Z89.1-certified hard hat, this Z-Link® configuration delivers unmatched protection, comfort, and performance under the most demanding conditions.

The C40 Climate Control Device allows operators to adjust incoming air temperature—cooling or heating the supplied air stream depending on the environment—significantly enhancing comfort and reducing fatigue during long shifts. Combined with the fire-rated face seal designed for welding and spark-intensive operations, the Z-Link® is optimized for both safety and productivity.

A hinged main visor provides clear face access for communication and cooling breaks, while an optional welding visor (sold separately) can clip over the main lens and flip upward to reveal the underlying ANSI-rated impact visor. With its wide field of vision, advanced fit system, and durability, the Z-Link® delivers elite performance across welding, grinding, painting, and metalworking applications.

Specifications

Key Features & Benefits

Zytec® Fire-Rated Face Seal

• Ideal for welding, grinding, cutting, and high-spark operations.

• Fire-resistant material shields the lower face and neck from radiant heat and sparks.

• Promotes a secure, comfortable fit and improved contamination control.

C40 Climate Control Device

• Allows cooling or warming of incoming supplied air.

• In hot environments: cools air to reduce heat stress and fatigue.

• In cold environments: warms air for comfort and productivity.

• Adjustable airflow temperature via simple, intuitive controls.

Dual-Visor Functionality

• Main visor hinges open for:

  • Free air breathing

  • Quick communication

  • Fast breaks between tasks

• Optional welding visor (not included) clips over the main visor and flips up to reveal the ANSI Z87+ impact lens.

Exceptional Visibility

• Expanded field of view with excellent downward and peripheral sightlines.

• Reduces blind spots and enhances precision in detailed work.

Comfort-Link™ Fit System

• 360° adjustable headband allows precise positioning of eye and nose distance.

• Molded padding provides even weight distribution, reducing operator strain.

• Removable side padding offers customization and ease of cleaning.

No Fit Testing Required

• Loose-fitting design eliminates the need for traditional respirator fit tests.

• Suitable for workers with facial hair.

ANSI-Rated Protection

• ANSI Z87+ lens ensures high-impact face protection.

• ANSI Z89.1 hard hat provides industrial-grade head protection.

Multi-Material & Multi-Configuration System

Available cape/seal materials (sold separately):

• Tychem® QC (2000) – Wet painting

• Tychem® SL (4000) – Powder coating

• Zytec® FR – Welding & grinding (included on this model)

Available system types:

• Supplied Air

• PX4 Air® PAPR (HEPA-equipped PX4 not approved for wet painting)

Available Visor Options (Sold Separately)

• Clear Premium (16-810)

• IR-Tinted Shade 5 (16-810-IR5)

• Yellow Tinted (16-810-YT)

• Smoke-Tinted (16-810-ST)

Optional Add-Ons

• Quiet-Link™ sound-reduction earmuffs

• Comms-Link™ communication system (fits standard side pads)

• Vision-Link™ integrated work light

OEM Cross-Reference

Ideal Applications

• Welding, hot work, and metal fabrication

• Grinding, cutting & finishing

• Shipyards & heavy manufacturing

• Automotive refinishing

• Powder coating & painting (with appropriate cape material)

• Industrial maintenance & repair
