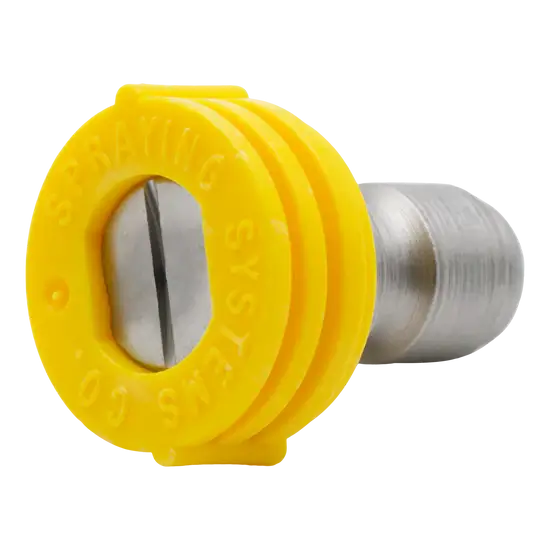

QC-MEG Quick Connect Pressure Washer Spray Nozzle – 4.0 Orifice 15° Yellow Nozzle Tip
Part Number: 1076
Category: Pressure Washer Accessories → Quick Connect Spray Nozzles
Type: QC-MEG Quick Connect Pressure Washer Spray Nozzle – 4.0 Orifice 15° Yellow Nozzle Tip
The QC-MEG Quick Connect Spray Nozzle (Part #1076) is a genuine OEM quick-change pressure washer nozzle manufactured by Spraying Systems Co. for commercial, industrial, agricultural, and residential pressure washing applications. Featuring a 4.0 orifice and a 15-degree fan spray pattern, this nozzle provides concentrated cleaning power with controlled coverage, making it ideal for removing stubborn dirt, grease, oil, mud, paint residue, mildew, and heavy buildup from hard surfaces. The QC-MEG series features color-coded nozzle guards, hardened stainless steel construction, locating ribs for fast alignment, and compatibility with standard 1/4-inch quick-connect systems.
Key Features & Benefits
- Genuine QC-MEG OEM quick-connect spray nozzle
- Part Number: 1076
- Manufactured by Spraying Systems Co.
- 15° yellow fan spray pattern
- 4.0 orifice size
- Integrated 1/4" quick disconnect plug
- Rated for systems up to 4,000 PSI
- Specially hardened stainless steel nozzle
- Durable yellow protective nozzle guard
- Molded locating ribs for quick spray alignment
- Aggressive cleaning with controlled surface coverage
- Protective guard helps prevent accidental surface damage
- Thermal insulation for hot water pressure washing
- Compatible with most standard pressure washer quick-connect systems
Technical Specifications
Part Number: 1076
Manufacturer: Spraying Systems Co.
Series: QC-MEG
Product Type: Quick Connect Pressure Washer Spray Nozzle
Nozzle Size: 4.0
Spray Pattern: 15°
Color: Yellow
Connection Type: Integrated 1/4" Quick Disconnect Plug
Maximum Pressure: 4,000 PSI
Nozzle Material: Specially Hardened Stainless Steel
OEM Replacement: Yes
Compatible Applications
Suitable for use with:
- Commercial pressure washers
- Residential pressure washers
- Hot and cold water pressure washers
- Pressure washer spray guns
- Pressure washer wands
- Quick-connect lance systems
- Heavy equipment cleaning
- Fleet washing
- Agricultural equipment cleaning
- Construction equipment maintenance
- Concrete cleaning
- Industrial facility cleaning
- Surface preparation
Always verify nozzle size, operating pressure, flow rate, and quick-connect compatibility before ordering.
Function of the Spray Nozzle
The QC-MEG 1076 spray nozzle helps:
- Produce a concentrated 15° high-pressure fan spray
- Deliver aggressive cleaning power with controlled surface coverage
- Allow rapid nozzle changes using the integrated quick-connect design
- Improve cleaning efficiency while minimizing downtime
- Maintain proper spray alignment with molded locating ribs
- Protect both the nozzle and the cleaning surface during operation
Its 15° spray pattern is ideal for removing stubborn dirt, grease, mud, mildew, paint residue, and heavy grime from concrete, heavy equipment, construction machinery, agricultural equipment, industrial equipment, and other durable surfaces.
Color-Coded Spray Pattern Guide
The QC-MEG nozzle system uses industry-standard color coding for quick identification:
- Red: 0° Solid Stream
- Yellow: 15° Fan Spray
- Green: 25° Fan Spray
- White: 40° Fan Spray
- Black: Low-Pressure Soap/Downstream Injection
Common Signs Replacement Is Needed
Replace the nozzle if you notice:
- Uneven or distorted spray pattern
- Reduced cleaning performance
- Worn or enlarged orifice
- Damaged quick-connect plug
- Cracked or damaged protective guard
- Corrosion or physical damage
- Pressure loss caused by nozzle wear
Replacing a worn nozzle restores proper spray pattern, operating pressure, and cleaning efficiency.
Installation & Service Notes
Turn off the pressure washer and relieve system pressure before changing nozzles.
Insert the integrated 1/4" quick-connect plug fully into a compatible quick-connect coupler until securely locked.
Align the spray pattern using the molded locating ribs on the nozzle guard.
Verify the nozzle is securely seated before operating the pressure washer.
Inspect the quick-connect fitting and O-rings regularly for wear or damage.
Important: Match the 4.0 orifice size to your pressure washer's GPM and PSI specifications to maintain proper operating pressure and cleaning performance. The 15° spray pattern provides greater cleaning force than a 25° nozzle and is intended for durable surfaces. Exercise caution when cleaning painted finishes, vehicles, wood, glass, or other delicate materials that may be damaged by concentrated high-pressure spray.
Maintenance Recommendations
- Flush the nozzle with clean water after each use.
- Inspect the hardened stainless steel orifice regularly for wear or mineral buildup.
- Clean clogged nozzles using an approved nozzle cleaning tool—never use wire or sharp objects that may damage the precision orifice.
- Inspect the quick-connect plug and protective guard for signs of wear or damage.
- Store the nozzle in a clean, dry location when not in use.
- Use only genuine OEM QC-MEG replacement nozzles to maintain proper spray pattern, operating pressure, and long-term performance.
