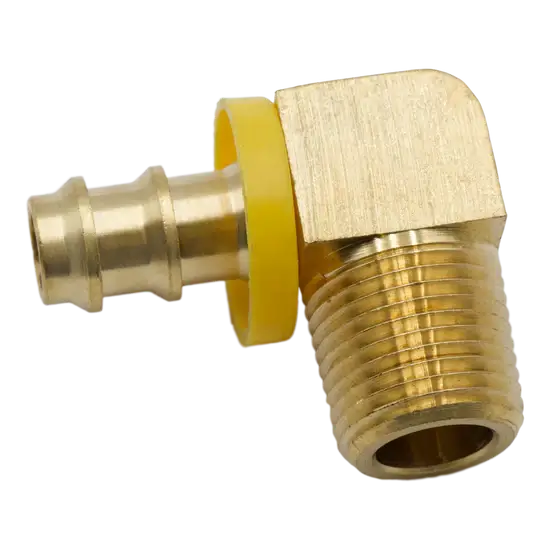

Push-On Hose Barb Elbow 1/4" Hose x 1/4" MPT – OEM Replacement Fitting
Part Number: 5017
Category: Pressure Washer Parts → Fittings & Adapters → Hose Barbs
Type: Brass 90° Push-On Hose Barb Elbow Fitting
The Push-On Hose Barb Elbow 1/4" Hose x 1/4" MPT (Part #5017) is a durable OEM replacement fitting designed to connect 1/4-inch inside diameter hose to 1/4-inch Male Pipe Thread (MPT) components while providing a 90-degree change in flow direction. This elbow fitting is ideal for pressure washer systems, chemical application equipment, air lines, water transfer systems, and industrial fluid handling applications where space constraints or hose routing requirements make a straight fitting impractical.
Key Features & Benefits
- Genuine OEM replacement fitting
- 90-degree hose barb elbow configuration
- 1/4" hose barb connection
- 1/4" Male Pipe Thread (MPT) connection
- Durable brass construction
- Corrosion-resistant material
- Helps reduce hose bending and stress
- Secure hose retention design
- Leak-resistant threaded connection
- Compact design for tight installations
- Easy installation and maintenance
- Long service life
Technical Specifications
Part Number: 5017
Product Type: Hose Barb Elbow Fitting
Connection Size I: 1/4" Hose Barb
Connection Size II: 1/4" MPT
Thread Type: Male Pipe Thread (MPT)
Material: Brass
Configuration: 90° Hose Barb x Male Thread Elbow
OEM Replacement: Yes
Application: Hose-to-Thread Connection with Direction Change
Common Applications
- Pressure washer systems
- Chemical application equipment
- Air systems
- Water transfer systems
- Pump assemblies
- Agricultural equipment
- Wash-down systems
- Fluid transfer equipment
- Commercial cleaning equipment
- Industrial plumbing systems
- General maintenance and repair applications
Performance Benefits
- Provides efficient 90-degree hose routing
- Helps reduce hose kinking and stress
- Corrosion-resistant brass construction
- Secure hose-to-thread connection
- Improves installation flexibility in confined spaces
- Durable performance in demanding environments
- Supports reliable fluid transfer
- Long-lasting service life
Signs Replacement May Be Needed
Replace the fitting if you notice:
- Hose connection leaks
- Damaged or worn barb surfaces
- Cracked or deformed fitting body
- Corrosion affecting performance
- Damaged threads
- Loose hose retention
- Excessive wear from prolonged service
Installation Notes
- Verify compatibility with 1/4" inside diameter hose.
- Inspect the hose and fitting before installation.
- Push the hose fully onto the barb fitting.
- Secure with an appropriate hose clamp if required.
- Apply thread sealant or PTFE thread tape to the male threads.
- Thread the fitting into the receiving component and tighten securely.
- Pressurize the system and inspect for leaks.
Important: Always verify hose size, thread compatibility, fluid compatibility, and operating conditions before installation.
Maintenance Recommendations
- Inspect hose connections regularly.
- Check hose clamps periodically.
- Monitor for leaks or excessive wear.
- Keep threaded connections clean and secure.
- Replace damaged hoses or fittings promptly.
- Verify proper sealing during routine maintenance.
