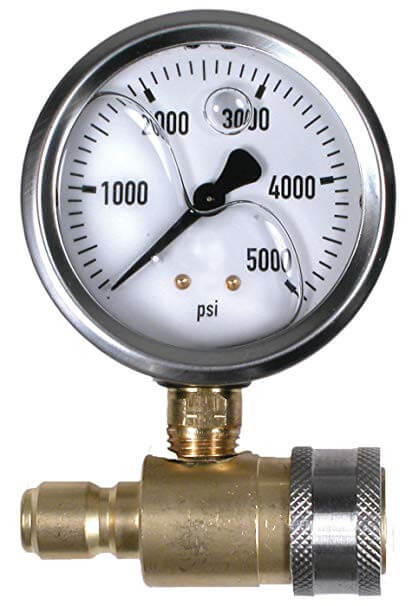

Pressure Test Gauge 5000 PSI with 3/8" Quick Connects – OEM Replacement Part
Part Number: 5744
Category: Pressure Washer Components → Pressure Gauges → Diagnostic & Testing Equipment
Type: Pressure Test Gauge 5000 PSI with Quick Connect Couplers
The Pressure Test Gauge 5000 PSI with 3/8" Quick Connects is a professional diagnostic tool designed to quickly and accurately measure operating pressure in pressure washer systems. Featuring an easy-to-read pressure gauge and integrated 3/8" quick connect fittings, this testing assembly allows technicians and operators to quickly connect the gauge to the system without modifying plumbing or installing permanent monitoring equipment.
Cross Reference: 8.712-208.0
Key Features & Benefits
- Professional pressure washer diagnostic tool
- Measures system pressure up to 5000 PSI
- Integrated 3/8" quick connect fittings
- Fast installation and removal without plumbing modifications
- Helps diagnose pressure loss and system performance issues
- Ideal for pump testing and troubleshooting
- Assists with unloader valve adjustment
- Supports preventative maintenance programs
- Suitable for commercial and industrial pressure washer systems
- Durable construction for field and shop use
Technical Specifications
Product Type: Pressure Test Gauge Assembly
Pressure Range: 0–5000 PSI
Connection Type: 3/8" Quick Connect Couplers
Application: Pressure Testing & Diagnostics
Cross Reference: 8.712-208.0
OEM Replacement: Yes
Typical Applications
- Pressure washer diagnostics
- Pump performance testing
- Unloader valve adjustment
- Pressure system troubleshooting
- Commercial pressure washer maintenance
- Industrial cleaning equipment service
- Fleet washing equipment repairs
- Preventative maintenance inspections
Performance Advantages
- Provides fast and accurate pressure readings
- Allows quick connection to pressure washer systems
- Helps identify pressure-related problems
- Assists in diagnosing worn pumps, unloaders, and valves
- Supports proper equipment setup and calibration
- Reduces troubleshooting time
- Improves maintenance efficiency
- Helps prevent unnecessary component replacement
- Essential tool for pressure washer service professionals
Common Diagnostic Uses
The Pressure Test Gauge is commonly used to:
- Verify operating pressure
- Adjust unloader valve settings
- Diagnose pressure fluctuations
- Test pump performance
- Troubleshoot pressure loss
- Verify system repairs
- Inspect pressure washer operation before returning equipment to service
Maintenance Recommendations
- Inspect quick connect fittings regularly for wear or leakage.
- Verify gauge accuracy during routine service intervals.
- Protect the gauge from excessive impact and vibration.
- Store in a clean, dry environment when not in use.
- Replace damaged gauges or fittings immediately.
- Use only within the rated pressure range.
