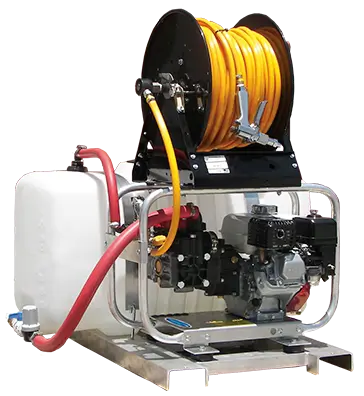

Pressure-Pro RCS/G1050HH Pro-ATV Series Roll Cage Skid Chemical Sprayer Power Unit – 10.0 GPM @ 500 PSI, Honda GX200 Gas Engine, Hypro Gear Drive Pump

Part Number: RCS/G1050HH
Category: ATV Chemical Sprayer Systems
Type: Pro-ATV Series Roll Cage Skid Chemical Sprayer Power Unit – Gas, Tank-Fed

The Pressure-Pro RCS/G1050HH Pro-ATV Series Roll Cage Skid Chemical Sprayer Power Unit is a high-flow, low-pressure spraying system engineered for chemical application, agricultural spraying, dust control, and property maintenance. Delivering 10.0 GPM at 500 PSI, this unit is powered by a Honda GX-series gas engine and paired with a Hypro gear-drive pump, providing consistent flow and reliable performance for extended spraying operations.

Built on an aircraft-grade aluminum roll cage skid, this system is lightweight, chemical-resistant, rustproof, and designed for ATV / UTV mounting. When paired with the included 50-gallon tank assembly, it becomes a fully self-contained mobile spraying solution ideal for off-road and remote applications.

Chemical Sprayer Specifications

• Model: RCS/G1050HH

• Flow Rate: 10.0 GPM

• Pressure: 500 PSI

• Engine: Honda GX160 Gas Engine

• Horsepower: 4.8 HP

• Pump: Hypro 9910-D30GRGI Gear-Drive Pump

• Drive System: Gear Drive

• Water/Chemical Feed: Tank-Fed

• Series: Pro-ATV Roll Cage Skid

Skid Kit Includes (Exactly as Listed)

• RCS/G1050HH Chemical Sprayer Power Unit

• AST050-GATOR – 50-Gallon Tank Assembly with Aluminum Skid & Inlet Plumbing

• KBP100 – Tank Feed Unloader Bypass Return & Hose Assembly

• 266693 – Agricultural Spray Gun

• 4465-1702 – 3/8″ Yellow Agricultural Hose, 200 ft

• AHR250 – Hosetract Hose Reel with Hardware (250′ x 3/8″ capacity)

Construction & Design

• Aircraft-grade aluminum roll cage skid

• Chemical-resistant and rustproof construction

• Integrated tank-fed system for mobile operation

• Adjustable pressure unloader valve

• Designed for secure mounting to ATV / UTV platforms

• Ideal for off-road and remote spraying applications

Applications

• Agricultural and vegetation spraying

• Herbicide and pesticide application

• Dust suppression

• Property and grounds maintenance

• Utility, municipal, and facility spraying

• Remote or off-grid chemical application

Important Notes

• Only accessories listed above are included

• Not all accessories shown in photos are included

• Designed specifically for low-pressure, high-flow chemical spraying

• Not intended for pressure washing applications

• Verify ATV payload capacity before installation
