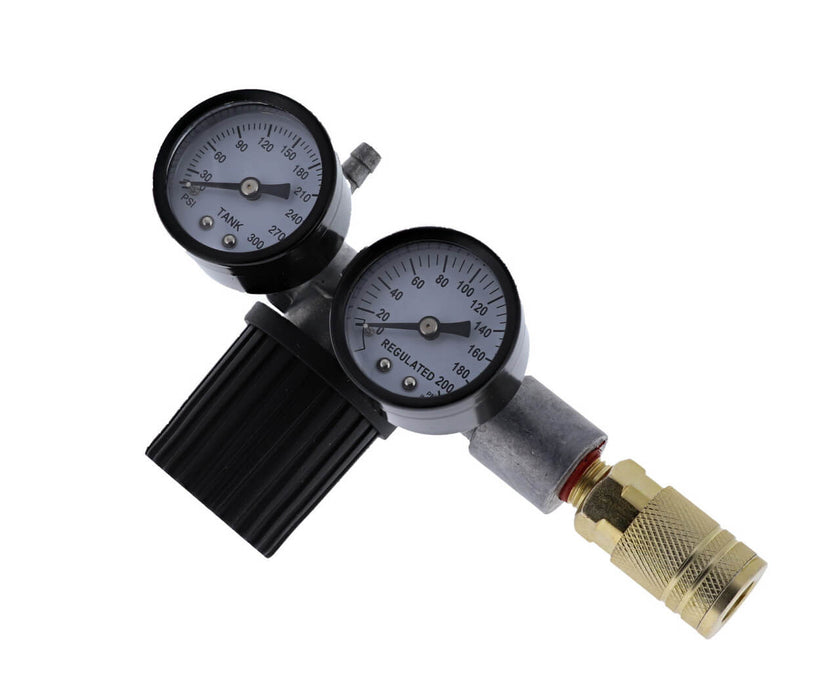

Porter-Cable N246884 Manifold Assembly – Genuine OEM Replacement Air Compressor Regulator Manifold
Part Number: N246884
Category: Air Compressor Parts → Manifolds & Regulators → Manifold Assemblies
Type: Porter-Cable N246884 Manifold Assembly – Genuine OEM Replacement Air Compressor Regulator Manifold
The Porter-Cable N246884 Manifold Assembly is a genuine OEM replacement regulator manifold designed for compatible Porter-Cable, Craftsman, and Stanley portable air compressors. This complete manifold assembly regulates the air pressure delivered from the compressor tank while serving as the mounting point for the pressure gauges, regulator knob, and quick-connect outlets. Manufactured to original equipment specifications, the N246884 assembly provides a direct-fit replacement for damaged or leaking manifolds, restoring safe and reliable compressor operation.
Key Features & Benefits
- Part Number: N246884
- Genuine OEM Porter-Cable replacement part
- Complete regulator manifold assembly
- Includes integrated pressure regulator
- Includes two pressure gauges
- Includes two brass quick-connect fittings
- Includes regulator adjustment knob
- Restores proper outlet pressure regulation
- Direct-fit OEM replacement for compatible compressors
Technical Specifications
Part Number: N246884
Manufacturer: Porter-Cable / Stanley Black & Decker
Product Type: Regulator Manifold Assembly
Application: Portable Air Compressor
OEM Part: Yes
Quantity: Sold Individually
Includes:
- Regulator body
- Two pressure gauges
- Regulator adjustment knob
- Two brass quick-connect fittings
Compatible Applications
The Porter-Cable N246884 Manifold Assembly fits compatible air compressors including:
Porter-Cable
- C2005 Type 4
- C2005 Type 5
- PCFP02003 Type 1
- PCFP02003 Type 2
Craftsman
- CMCC2520M1
Stanley
- STFP12799 Type 1
Always verify your compressor model, type number, and original part number before ordering to ensure proper compatibility.
Function of the Manifold Assembly
The N246884 Manifold Assembly is designed to:
- Regulate air pressure leaving the compressor tank
- Provide adjustable outlet pressure for air tools
- Support mounting of pressure gauges
- Supply air through the quick-connect outlets
- Help maintain consistent airflow and pressure
- Restore the factory air distribution and regulation system of compatible compressors
Common Signs Replacement Is Needed
Replace the manifold assembly if you notice:
- Air leaking from the regulator or manifold
- Regulator no longer adjusts outlet pressure
- Broken or cracked manifold housing
- Damaged pressure gauges
- Broken regulator knob
- Air not flowing properly to the hose connection
Because the regulator is integrated into the manifold assembly, replacement of the complete assembly is typically required when the regulator fails.
Installation & Service Notes
Disconnect electrical power and completely drain all air pressure from the compressor tank before beginning service.
Remove the air hose and disconnect the existing N246884 Manifold Assembly from the compressor. Note the orientation of all gauges, fittings, and air lines before removal. Install the replacement manifold using the original hardware and apply an appropriate thread sealant to threaded air fittings where specified by the manufacturer. After installation, pressurize the compressor and inspect every connection for air leaks before returning the unit to service.
Important: Never service the manifold while the compressor tank is pressurized. Always verify compatibility using your compressor's model and type number before ordering.
Maintenance Recommendations
- Inspect the manifold periodically for air leaks.
- Keep the regulator knob clean and operating smoothly.
- Drain the compressor tank after each use to reduce moisture buildup.
- Check gauges and quick-connect fittings for damage.
- Inspect threaded fittings during routine maintenance.
- Use genuine OEM replacement parts to maintain factory fit, accurate pressure regulation, and long-term compressor performance.
