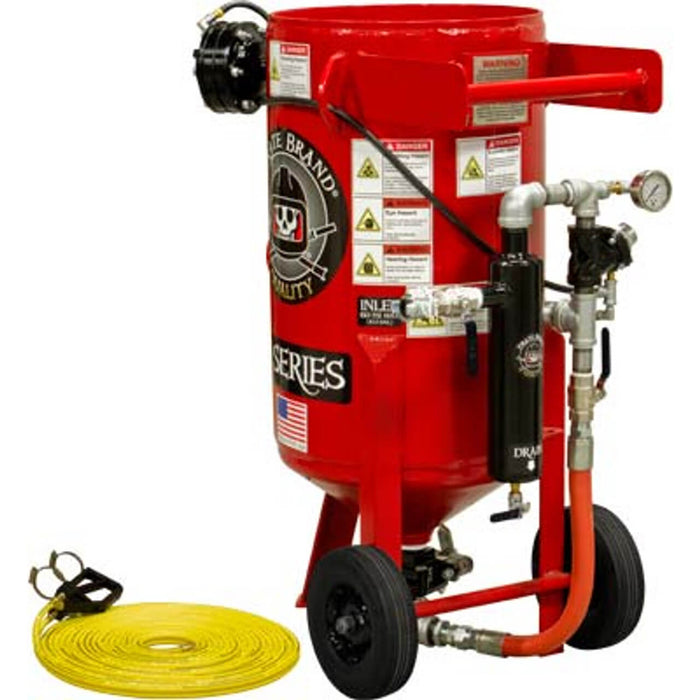

Portable 3.5 cu ft E-Series Pneumatic Blast Pot – Manual Pinch Valve with X-TREME DUTY™ Metering Tube, 1" Piping & Built-In Moisture Separator
Part Number: 211-103-A
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #211103
Weight: 377.56 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty
Overview
The Portable 3.5 cu ft (100 L) E-Series Pneumatic Blast Pot is a heavy-duty, industrial-grade abrasive blasting system built for consistent performance, long service life, and maximum reliability in demanding environments.
Equipped with a Manual Pinch Valve featuring the X-TREME DUTY™ Metering Tube, this model ensures smooth, precise abrasive control while withstanding high wear conditions. The system's Pressure Release Design automatically depressurizes the vessel when blasting stops, simplifying operation and improving safety.
With a Heavy-Duty Moisture Separator, 1" Galvanized Piping, and a Pneumatic D-Handle Control, this portable unit offers excellent durability and consistent performance for professional surface preparation, cleaning, and coating removal.
Features & Benefits of 3.5 cu ft EPR Pneumatic System
A. Pressure Vessel
3.5 cu ft (100 L) capacity rated for 150 PSI (10.3 BAR)
Built to A.S.M.E. Section VIII Division 1 standards
C.R.N. certified for all Canadian provinces
B. Pressure Release System
Automatically depressurizes the vessel when the control handle is released
Reduces downtime and enhances operator safety
Simplified troubleshooting for in-field maintenance
C. Heavy-Duty Moisture Separator
Delivers clean, dry air to improve media flow and prevent clogging
D. 1" Galvanized Piping
Corrosion-resistant for long-term use in industrial environments
E. Full-Port Ball Valves
Heavy-duty design ensures unrestricted air flow and long service life
F. Schedule 80 Heavy-Duty Nipples
Built to resist abrasive wear and extend system longevity
G. Pusher Line with JIC Fittings
Eliminates gasket issues and allows for easy field replacement
H. Manual Pinch Valve with X-TREME DUTY™ Pinch Tube
Constructed from 100% gum rubber for flexibility and wear resistance
Carbon black composition allows for static dissipation
Long-life design minimizes maintenance and operating costs
I. #2 Exhaust Valve with X-TREME DUTY™ Ball
Enhances air control and extends valve service life

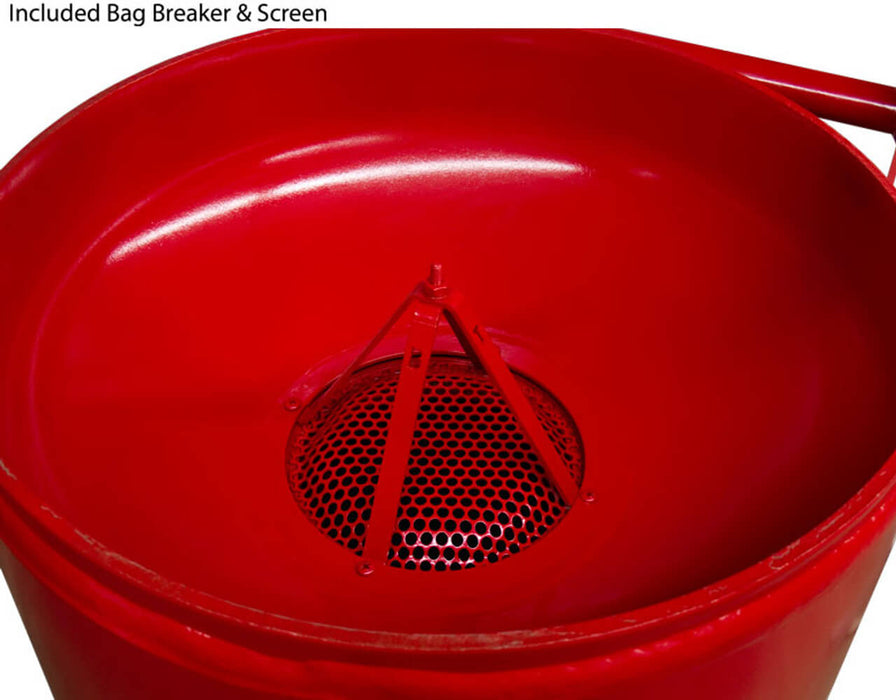

J. Bag-Breaker and Screen Assembly
Standard over the pop-up lid to prevent foreign debris contamination
K. 6" FAST-FILL™ Pop-Up
Speeds up abrasive refills for continuous operation
Specifications
| Specification | Detail |
|---|---|
| Model | 211-103-A |
| Vessel Capacity | 3.5 cu ft (100 L) |
| Working Pressure | 150 PSI (10.3 BAR) |
| System Type | Pneumatic Pressure Release |
| Valve Type | Manual Pinch Valve with X-TREME DUTY™ Tube |
| Piping Size | 1" Galvanized |
| Moisture Separator | Built-In Heavy-Duty |
| Control Handle | Pneumatic D-Handle |
| Fill Type | 6" FAST-FILL™ Pop-Up |
| Certifications | A.S.M.E. Section VIII, C.R.N. (All Provinces) |
| Weight | 377.56 lbs |
| Warranty | 5-Year Limited / 10-Year Vessel Warranty |
Applications
Industrial surface preparation and coating removal
Shipyard, refinery, and pipeline maintenance
Concrete and steel structure blasting
Heavy-duty restoration and fabrication work
Compatibility
OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #211103
Fully compatible with Empire E-Series pneumatic blast systems, hoses, and fittings
