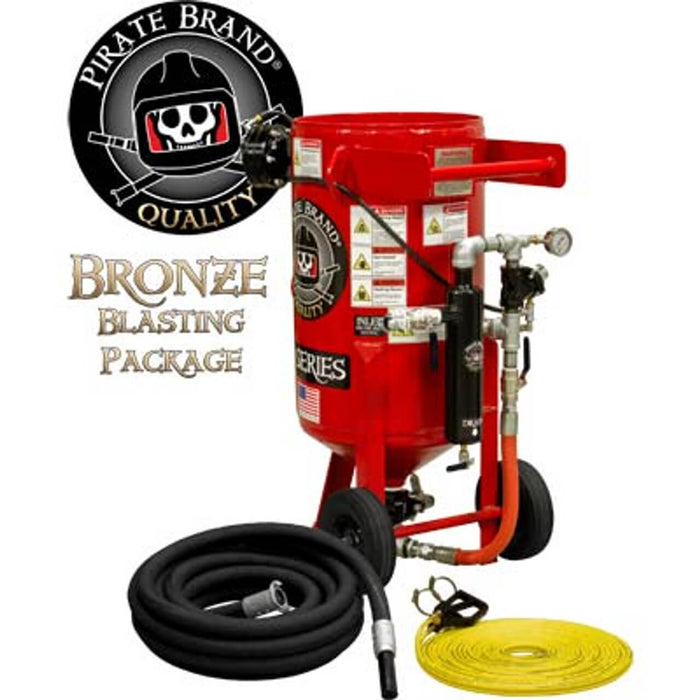

Portable 3.5 cu ft E-Series Pneumatic Blast Pot – Manual Pinch Valve with X-TREME DUTY™ Metering Tube, 1" Piping with Moisture Separator, Bronze Sandblasting Package

Part Number: 211-103-B
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #211103
Weight: 390.15 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The Portable 3.5 cu ft (100 L) E-Series Pneumatic Blast Pot – Bronze Package is a robust and efficient pressure release abrasive blasting system engineered for heavy-duty industrial use. Designed for high-performance operation in shipyards, refineries, and construction sites, this unit delivers reliability and long service life with minimal maintenance requirements.

Featuring a Manual Pinch Valve with X-TREME DUTY™ Metering Tube, 1" Galvanized Piping, and an integrated Moisture Separator, it ensures precise abrasive flow, reduced wear, and smoother operation. The included Bronze Blasting Package provides essential hoses and nozzles to get you blasting faster.

Note: Not for use with steel grit. The pneumatic control handle may jam when used with metallic media. For steel grit applications, use the equivalent electric-control blaster.

Bronze Blasting Package Includes

• (1) 10-100BLK-050-3AL — 1" Blast Hose Assembly Kit with Couplings (50')

• (1) 1201-1173 — #4 Tungsten Carbide, All-Poly Nozzle

• (1) 55' Twinline Hose Assembly with Pneumatic D-Handle Control

• (1) Built-In Moisture Separator and 1" Galvanized Piping

This package includes all core components needed for setup and operation in most industrial blasting environments.

Features & Benefits of 3.5 cu ft EPR Pneumatic System

A. Pressure Vessel

• 3.5 cu ft (100 L) capacity rated to 150 PSI (10.3 BAR)

• Constructed per A.S.M.E. Section VIII Division 1 standards

• C.R.N. approved for all Canadian provinces

B. Pressure Release System

• Automatically blows down vessel when control handle is released

• Simple, low-maintenance design for extended field use

• Quick troubleshooting and easy repairs

C. Heavy-Duty Moisture Separator

• Provides clean, dry air for consistent abrasive flow

D. 1" Galvanized Piping

• Corrosion-resistant and long-lasting in industrial applications

E. Full-Port Ball Valves

• High-flow design increases efficiency and reliability

F. Schedule 80 Heavy-Duty Nipples

• Extended life through abrasion resistance and strength

G. Pusher Line with JIC Fittings

• Eliminates gasket failures and simplifies on-site maintenance

H. Manual Pinch Valve with X-TREME DUTY™ Tube

• Constructed from 100% gum rubber with carbon black for static dissipation

• Designed for long wear life and precise abrasive metering

I. #2 Exhaust Valve with X-TREME DUTY™ Ball

• Longer service life with consistent pressure control

J. Bag-Breaker and Screen Assembly

• Prevents contamination and clogs during abrasive loading

K. 6" FAST-FILL™ Pop-Up

• Speeds up refills and reduces downtime

Specifications

Applications

• Industrial coating removal and surface prep

• Shipyard, refinery, and marine maintenance

• Pipeline, concrete, and steel structure cleaning

• Heavy-duty restoration and construction use

Compatibility

• OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #211103

• Compatible with Empire-style E-Series pneumatic blasting systems, hoses, and accessories
