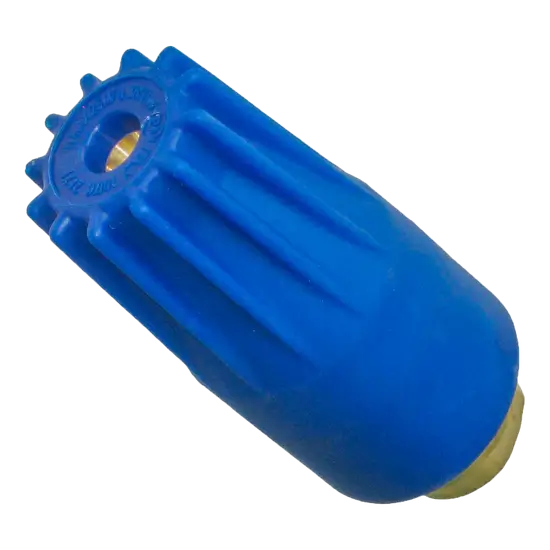

PA UR25 Blue Rotating Turbo Nozzle 3650 PSI 5.0 – OEM Replacement Part

Part Number: 6709
Category: Pressure Washer Nozzles → Rotating Turbo Nozzles
Type: PA UR25 Blue Rotating Turbo Nozzle

The PA UR25 Blue Rotating Turbo Nozzle 5.0 (Part #6709) is a professional-grade rotary pressure washer nozzle engineered to deliver the concentrated cleaning force of a 0-degree spray pattern while providing the wider coverage of a rotating turbo stream. Designed for commercial and industrial cleaning applications, this nozzle offers exceptional cleaning performance on heavily soiled surfaces while increasing productivity compared to conventional flat fan nozzles.

Key Features & Benefits

• Genuine PA OEM replacement turbo nozzle
• Combines 0° impact with rotating cleaning coverage
• Rotating spray action improves cleaning efficiency
• Precision ceramic orifice and seat for extended service life
• High-strength forged brass housing
• No gears, bearings, or teeth to wear out
• Replaceable wear components for longer nozzle life
• Standard 1/4" FPT inlet connection
• Ideal for commercial and industrial cleaning applications
• Designed for demanding pressure washing tasks

Technical Specifications

Part Number: 6709

Manufacturer: PA

Model: UR25

Color: Blue

Product Type: Rotating Turbo Nozzle

Nozzle Size: 5.0

Maximum Pressure: 3,650 PSI

Maximum Temperature: 212°F

Inlet Connection: 1/4" FPT

Housing Material: Forged Brass

Orifice Material: Precision Ceramic

Spray Action: Rotating Turbo Stream

OEM Replacement: Yes

How the Turbo Nozzle Works

Rotating Jet Technology

• Produces the concentrated impact of a 0° spray pattern
• Rotates rapidly in a circular motion
• Covers a larger area than a standard zero-degree nozzle
• Provides additional agitation for stubborn contaminants

Enhanced Cleaning Performance

• Removes heavy dirt, mud, and buildup efficiently
• Improves productivity on demanding cleaning jobs
• Delivers aggressive cleaning action with broader coverage
• Ideal for professional pressure washing applications

Typical Applications

• Concrete cleaning
• Driveway and sidewalk restoration
• Heavy equipment washing
• Construction equipment cleaning
• Fleet vehicle maintenance
• Agricultural equipment cleaning
• Industrial facility cleaning
• Surface preparation
• Masonry cleaning
• Commercial pressure washing operations

Performance Advantages

• Combines concentrated cleaning force with wider coverage
• More efficient than traditional flat fan spray nozzles
• Rotating action helps remove stubborn deposits quickly
• Precision ceramic components resist wear and abrasion
• No internal gears or bearings reduce maintenance requirements
• Replaceable wear parts extend service life
• Forged brass housing withstands demanding environments
• Improves productivity and reduces cleaning time
• Suitable for heavy-duty cleaning applications

Important Operating Guidelines

• Always use a high-pressure inlet filter when operating this nozzle.
• The filter helps protect the ceramic nozzle and seat from contamination and premature wear.
• Always start the nozzle in the downward position.
• Inspect the nozzle regularly for wear or damage.
• Operate only within the specified pressure and temperature ratings.
• Verify all system connections are secure before operation.

Maintenance Recommendations

• Flush clean water through the nozzle after each use.
• Use a high-pressure filter to protect ceramic components.
• Inspect the ceramic orifice and seat regularly for wear.
• Replace worn internal components as needed.
• Keep the inlet free of dirt and debris.
• Store in a clean, dry environment when not in use.
