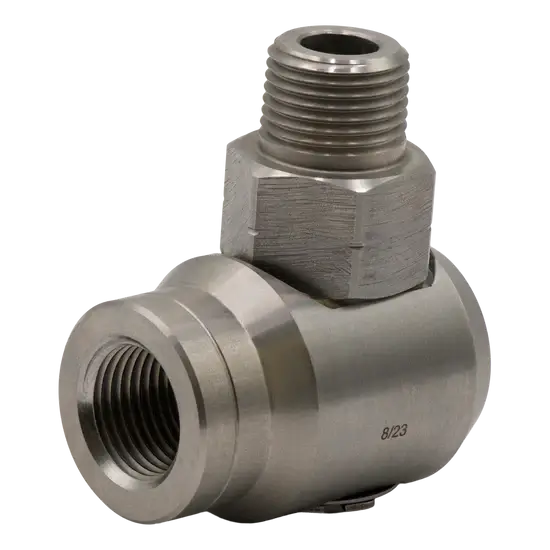

Mosmatic WDEI 90° Hose Reel Rotary Swivel – 3/8" FPT x 3/8" MPT, Stainless Steel
Part Number: 7143
Category: Pressure Washer Parts → Swivels & Fittings
Type: Mosmatic WDEI 90° Hose Reel Rotary Swivel – 3/8" FPT x 3/8" MPT Stainless Steel
The Mosmatic WDEI 90° Hose Reel Rotary Swivel (Part #7143) is a genuine Mosmatic maintenance-free rotary swivel designed specifically for pressure washer hose reels and other applications requiring continuous hose movement. Its compact 90-degree design allows hoses to rotate freely while preventing twisting and tangling, improving hose management and extending hose service life.
Key Features & Benefits
- Genuine Mosmatic maintenance-free rotary swivel
- Part Number: 7143
- WDEI 90° compact swivel design
- Specifically designed for hose reels
- 3/8" Female NPT inlet
- 3/8" Male NPT outlet
- Smooth 360° continuous rotation
- Maintenance-free sliding bearing system
- Complete stainless steel construction
- Rated for systems up to 725 PSI
- Maximum operating temperature: 250°F
- Maximum speed: 30 RPM
- Maximum torque: 37 ft-lbs
- Corrosion-resistant construction
- Long-life NBR O-ring seals help prevent leaks
- Helps eliminate hose twisting and tangling
- Provides unrestricted fluid flow
Technical Specifications
Part Number: 7143
Manufacturer: Mosmatic
Series: WDEI
Product Type: 90° Hose Reel Rotary Swivel
Inlet Connection: 3/8" Female NPT
Outlet Connection: 3/8" Male NPT
Maximum Working Pressure: 725 PSI
Maximum Temperature: 250°F
Maximum Speed: 30 RPM
Maximum Torque: 37 ft-lbs
Body Material: Stainless Steel
Seal Material: NBR O-Rings
Bearing System: Sliding Bearing
Swivel Rotation: 360°
OEM Replacement: Yes
Compatible Applications
Suitable for use with:
- Pressure washer hose reels
- Low-pressure wash systems
- Vehicle wash equipment
- Industrial hose reels
- Water transfer systems
- Agricultural spray equipment
- Commercial cleaning systems
- Fleet wash equipment
- Industrial fluid handling applications
Always verify connection size, operating pressure, temperature rating, RPM, and equipment compatibility before ordering.
Function of the Rotary Swivel
The Mosmatic WDEI 90° Rotary Swivel helps:
- Provide smooth 360° hose rotation
- Prevent hose twisting and tangling
- Maintain unrestricted fluid flow
- Reduce stress on hoses and reel plumbing
- Improve hose reel efficiency
- Extend hose service life
- Deliver maintenance-free operation with a sliding bearing system
Its compact 90° configuration makes it ideal for installations with limited space while ensuring smooth hose movement during operation.
Common Signs Replacement Is Needed
Replace the swivel if you notice:
- Water leaking around the swivel body
- Restricted or rough rotation
- Damaged or worn threads
- Excessive hose twisting
- Corrosion or physical damage
- Excessive rotational play or seal wear
Replacing a worn swivel restores smooth hose movement and helps protect hoses and connected equipment.
Installation & Service Notes
Turn off the system and relieve all pressure before installation.
Apply an appropriate thread sealant where required and install the swivel using the 3/8" Female NPT inlet and 3/8" Male NPT outlet connections.
Tighten all threaded fittings securely without overtightening.
Verify the swivel rotates freely and inspect for leaks before placing the equipment into service.
Important: Never exceed the maximum 725 PSI working pressure, 250°F operating temperature, 30 RPM, or 37 ft-lbs of torque. Always verify compatibility with your hose reel and operating system before installation.
Maintenance Recommendations
- The maintenance-free design requires no routine lubrication.
- Inspect the swivel periodically for leaks and smooth rotation.
- Check threaded connections during routine equipment maintenance.
- Inspect NBR seals for signs of wear if leakage develops.
- Keep the swivel clean and free of dirt or debris.
- Use only genuine OEM Mosmatic replacement parts if service is required to maintain reliable, long-term performance.
