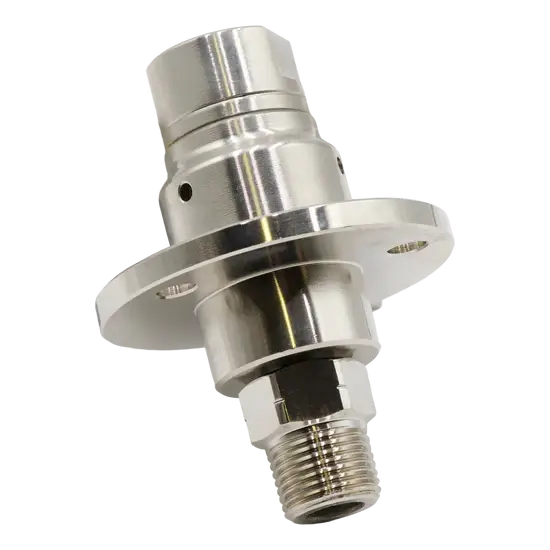

Mosmatic 58.153 DYF Rotary Union Swivel – 3/8" FPT x 3/8" MPT Stainless Steel
Part Number: 58.153
Category: Pressure Washer Parts → Swivels & Fittings
Type: Mosmatic 58.153 DYF Rotary Union Swivel – 3/8" FPT x 3/8" MPT Stainless Steel, 4000 PSI
The Mosmatic 58.153 DYF Rotary Union Swivel is a genuine Mosmatic premium rotary union designed for professional pressure washing, industrial cleaning, vehicle wash systems, rotating spray equipment, surface cleaners, and high-pressure fluid transfer applications. Featuring a 3/8-inch Female NPT inlet and 3/8-inch Male NPT outlet, this precision-engineered rotary union provides smooth 360-degree continuous rotation while maintaining unrestricted fluid flow under demanding operating conditions.
Key Features & Benefits
- Genuine Mosmatic OEM rotary union
- Manufacturer Model: 58.153
- DYF series rotary union
- 3/8" Female NPT inlet
- 3/8" Male NPT outlet
- Smooth 360° continuous rotation
- Maintenance-free sealed design
- Nickel-plated brass body
- Stainless steel internal components
- Precision radial and thrust ball bearings
- Premium carbide seal system
- Built-in weep holes indicate seal wear
- Rated for systems up to 4,000 PSI
- Supports rotational speeds up to 2,000 RPM
- Maximum operating temperature: 250°F
- Excellent corrosion resistance
- Designed for continuous-duty industrial applications
Technical Specifications
Manufacturer: Mosmatic
Manufacturer Model: 58.153
Series: DYF
Product Type: Rotary Union Swivel
Inlet Connection: 3/8" Female NPT
Outlet Connection: 3/8" Male NPT
Maximum Working Pressure: 4,000 PSI
Maximum Speed: 2,000 RPM
Maximum Temperature: 250°F
Body Material: Nickel-Plated Brass
Internal Components: Stainless Steel
Seal Material: Carbide
Bearing Type: Radial Ball Bearings & Thrust Ball Bearings
Swivel Rotation: 360°
OEM Replacement: Yes
Compatible Applications
Suitable for use with:
- Commercial pressure washers
- Industrial pressure washing systems
- Automatic vehicle wash equipment
- Surface cleaners
- Rotary spray equipment
- High-pressure hose reels
- Wash booms
- Rotating nozzles
- Industrial cleaning equipment
- High-pressure fluid transfer systems
Always verify thread size, pressure rating, RPM requirements, and equipment compatibility before ordering.
Function of the Rotary Union
The Mosmatic 58.153 DYF Rotary Union helps:
- Provide smooth 360° continuous rotation
- Maintain unrestricted high-pressure fluid flow
- Reduce hose twisting and kinking
- Minimize stress on hoses and plumbing components
- Support high-speed rotating equipment up to 2,000 RPM
- Extend the service life of connected hoses and equipment
Its sealed bearing system and carbide seal provide maintenance-free operation with excellent wear resistance for demanding continuous-duty applications.
Common Signs Replacement Is Needed
Replace the rotary union if you notice:
- Water leaking around the swivel body
- Restricted or rough rotation
- Excessive rotational play
- Damaged or worn threads
- Corrosion or physical damage
- Reduced performance under pressure
- Leakage from the weep holes indicating seal wear
Replacing a worn rotary union restores smooth operation and helps protect connected equipment from premature wear.
Installation & Service Notes
Turn off the pressure washer or equipment and relieve all system pressure before installation.
Apply an appropriate thread sealant to the 3/8" Female NPT connection where required and connect the 3/8" Male NPT outlet to the mating component.
Tighten all threaded connections securely without overtightening.
Verify smooth rotation and inspect the system for leaks before returning equipment to service.
Important: Never exceed the maximum 4,000 PSI working pressure, 2,000 RPM rotational speed, or 250°F operating temperature. Always verify compatibility with your equipment before installation.
Maintenance Recommendations
- Inspect the rotary union regularly for leaks and smooth rotation.
- Monitor the weep holes for early signs of seal wear.
- Keep the swivel clean and free of dirt, debris, and mineral buildup.
- Inspect threaded connections during routine maintenance.
- Replace worn seals or damaged components promptly.
- Use only genuine OEM Mosmatic replacement parts to maintain proper fit, reliable performance, and long-term service life.
