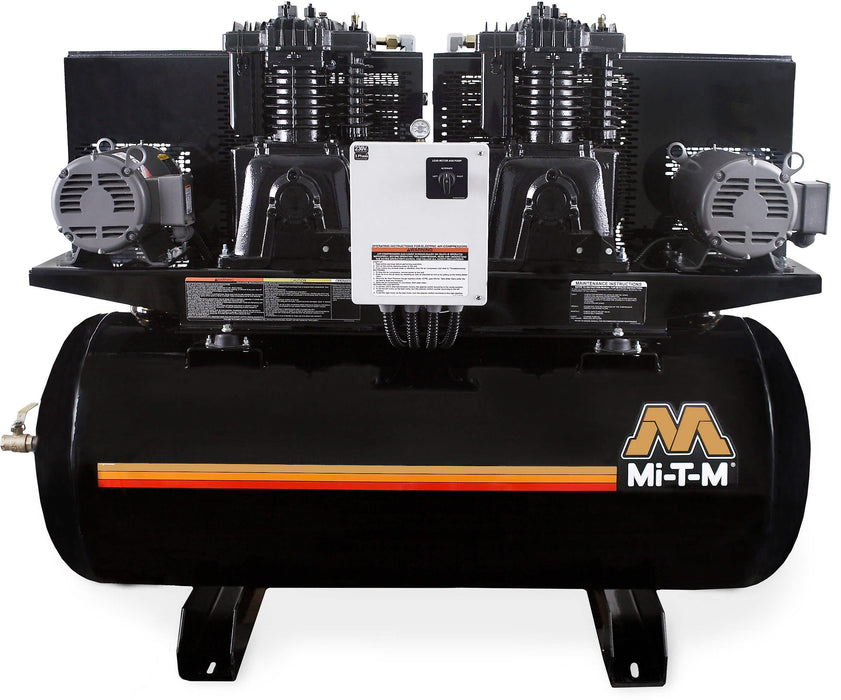

Mi-T-M Two-Stage Duplex Horizontal Air Compressor – 5 HP, 120-Gallon, 175 PSI, 1-Phase, 230V

Part Number: ACD-23105-120H
Category: Duplex Electric Air Compressor (Two-Stage, Horizontal)

The Mi-T-M ACD Series 5.0 HP Duplex Horizontal Air Compressor is engineered for shops and service facilities that require high air volume, continuous-duty performance, and maximum reliability. With two pumps and dual 5 HP motors, this duplex system alternates between units to balance wear or runs simultaneously to deliver full output when demand increases.

Designed with a cast-iron pump, magnetic starter, low-RPM industrial motors, and a heavy-duty ASME 120-gallon tank, this model provides efficient operation and long service life—ideal for automotive, industrial, and commercial environments.

Key Features

Compressor Pump

• Cast iron, heavy-duty two-stage pump

• Splash lubrication for long-term durability

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Motor

• Industrial low-RPM motor for cooler, quieter performance

• Magnetic starter with thermal overload protection

• 230V, 1-Phase, 46.0A configuration

Frame & Construction

• Powder-coated ASME-rated 120-gallon horizontal tank

• Reinforced 3/16-inch base plate minimizes vibration

• Powder-coated two-piece belt guard

• Removable base plate for easier installation or truck mounting

Components

• ASME safety valves

• Tank pressure gauge

• Hour meter for maintenance tracking

• Large flywheel for smooth operation

• Intake filter/silencer

• Manual tank shut-off valve

• Three-position selector:
  • Compressor 1 (lead)
  • Automatic alternating
  • Compressor 2 (lead)

• Dual start/stop pressure settings:
  • 110–140 PSI
  • 145–175 PSI

Specifications

Performance

Weights & Dimensions

Warranty

• 1-Year – Electric Motor

• 2-Year – Pump Exchange
