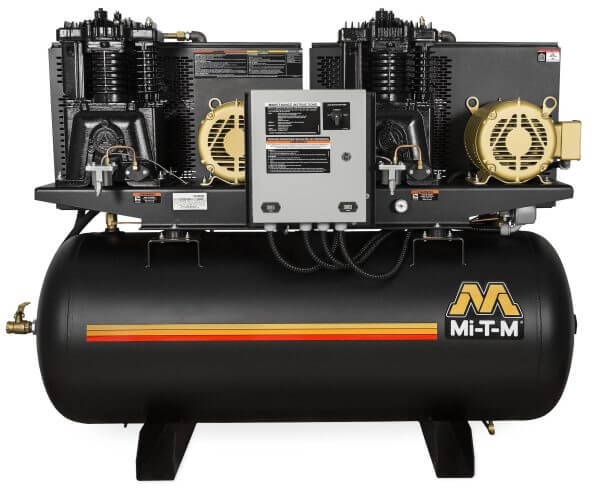

Mi-T-M M-Series Two-Stage Duplex Horizontal Air Compressor – 7.5 HP, 120-Gallon, 175 PSI, 3-Phase, 460V

Part Number: ACD-46375-120HM
Category: Duplex Electric Air Compressor (Two-Stage, Horizontal)

The Mi-T-M M-Series 7.5 HP Duplex Horizontal Air Compressor (460V, 3-Phase) is built for demanding industrial environments requiring both high-volume air and continuous-duty reliability. With dual pump/motor assemblies, this duplex unit alternates between compressors to balance load—or runs together to deliver maximum CFM for peak-demand applications.

Featuring a cast-iron two-stage pump, magnetic starter, low-RPM industrial motors, and a powder-coated ASME 120-gallon tank, this model is engineered for long-term dependability in any high-production shop or facility.

Key Features

Compressor Pump

• Cast iron, heavy-duty two-stage pump

• Splash-lubricated for optimized service life

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Motor

• Industrial low-RPM electric motor

• Magnetic starter with thermal overload protection

• 460V, 3-Phase, 20.0A

• Designed for cooler operation and extended duty cycles

Frame & Construction

• Powder-coated ASME-rated 120-gallon horizontal air tank

• Reinforced 3/16-inch base plate reduces vibration

• Powder-coated two-piece belt guard

• Removable base plate for flexible installation or truck mounting

Components

• ASME safety valves

• Tank pressure gauge

• Hour meter

• Large flywheel for smoother operation

• Intake filter/silencer

• Manual tank shut-off valve

• Three-position control selector:
  • Compressor 1 (lead)
  • Automatic alternating
  • Compressor 2 (lead)

• Dual start/stop pressure settings:
  • 110–140 PSI
  • 145–175 PSI

Specifications

Performance

Weights & Dimensions

Warranty

• 1-Year – Electric Motor

• 2-Year – Pump Exchange
