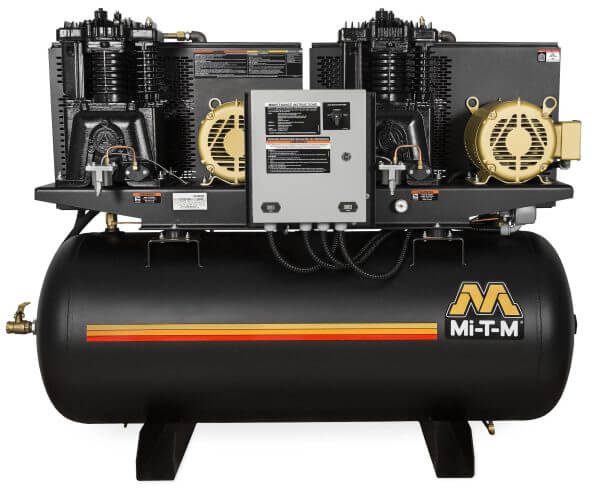

Mi-T-M M-Series Two-Stage Duplex Horizontal Air Compressor – 7.5 HP, 120-Gallon, 175 PSI, 3-Phase, 230V

Part Number: ACD-23375-120HM
Category: Duplex Electric Air Compressor (Two-Stage, Horizontal)

The Mi-T-M M-Series 7.5 HP Duplex Horizontal Air Compressor (230V, 3-Phase) is engineered for high-demand industrial environments requiring maximum air output and consistent duty cycles. With dual pump-motor assemblies, this unit allows alternating operation for balanced wear or simultaneous operation for peak CFM delivery.

Constructed with a heavy-duty cast-iron compressor pump, ASME-certified air tank, low-RPM motors, and a magnetic starter, this model provides unmatched durability and shop-ready performance.

Key Features

Compressor Pump

• Heavy-duty cast iron two-stage pump

• Splash-lubricated design for longevity

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Motor

• Industrial low-RPM electric motor

• Magnetic starter with thermal overload protection

• 230V, 3-Phase, 40.0A

Frame & Construction

• Powder-coated ASME-certified 120-gallon horizontal receiver tank

• Reinforced 3/16" base plate to reduce vibration

• Powder-coated two-piece belt guard

• Removable base plate for simplified truck/trailer installation

Components

• ASME safety valves

• Tank pressure gauge

• Hour meter

• Large flywheel

• Intake filter/silencer

• Manual tank shut-off valve

• 3-Position Selector Switch:
  • Compressor 1 (lead)
  • Auto-alternate mode
  • Compressor 2 (lead)

• Dual start/stop control ranges:
  • 110–140 PSI
  • 145–175 PSI

Specifications

Performance

Weights & Dimensions

Warranty

• 1-Year – Electric Motor

• 2-Year – Pump Exchange
