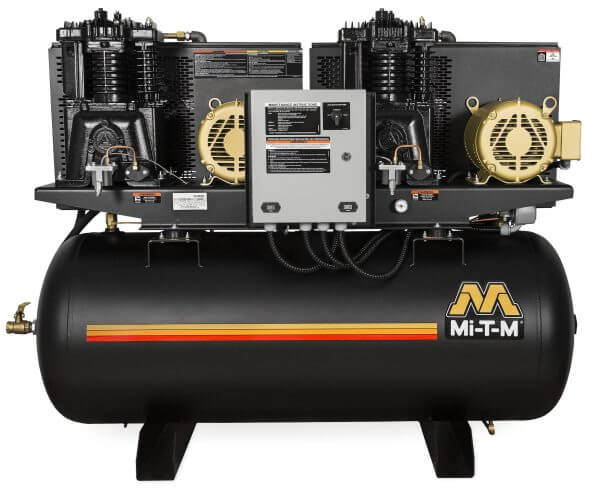

Mi-T-M M-Series Two-Stage Duplex Horizontal Air Compressor – 7.5 HP, 120-Gallon, 175 PSI, 3-Phase, 200V

Part Number: ACD-20375-120HM
Category: Duplex Electric Air Compressor (Two-Stage, Horizontal)

The Mi-T-M M-Series 7.5 HP Duplex Horizontal Air Compressor provides continuous-duty performance for high-demand industrial environments. With dual motor-pump systems, this unit can alternate between pumps for balanced use or run both simultaneously for maximum air output.

Built with a heavy-duty cast-iron pump, ASME 120-gallon tank, low-RPM industrial motor, and a magnetic starter, this duplex model is engineered for reliability and long-term shop performance.

Key Features

Compressor Pump

• Cast iron two-stage pump

• Splash lubricated for extended pump life

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Motor

• Industrial low-RPM electric motor

• Magnetic starter provides thermal overload protection

• 3-Phase, 200V, 46.0A

Frame & Construction

• Powder-coated ASME 120-gallon horizontal tank

• Reinforced 3/16" base plate minimizes vibration

• Two-piece powder-coated belt guard

• Removable base plate for flexible installation

Components

• ASME safety valves

• Tank pressure gauge

• Hour meter

• Large flywheel

• Intake filter/silencer

• Tank shut-off valve

• 3-position selector switch for:
  • Compressor 1 (lead)
  • Auto-alternate mode
  • Compressor 2 (lead)

• Start/stop control ranges:
  • 110–140 PSI
  • 145–175 PSI

Specifications

Performance

Weights & Dimensions

Warranty

• 1-Year – Electric Motor

• 2-Year – Pump Exchange
