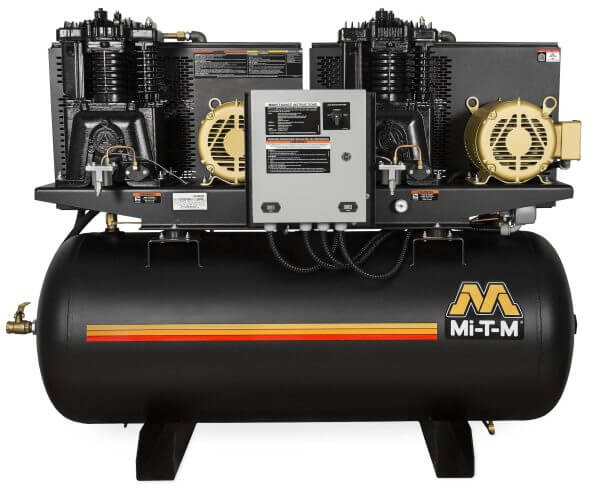

Mi-T-M M-Series Two-Stage Duplex Horizontal Air Compressor – 7.5 HP, 120-Gallon, 175 PSI, 1-Phase, 230V

Part Number: ACD-23175-120HM
Category: Duplex Electric Air Compressor (Two-Stage, Horizontal)

The Mi-T-M M-Series 7.5 HP Duplex Horizontal Air Compressor delivers powerful, continuous-duty compressed air for industrial, automotive, fabrication, and heavy shop environments. Designed with dual motor-pump assemblies, this unit automatically alternates between compressors for balanced wear—or runs both pumps simultaneously for maximum output.

With a rugged cast-iron pump, ASME-rated 120-gallon horizontal tank, low-RPM industrial motor, and integrated magnetic starter, this duplex compressor provides exceptional reliability and airflow for high-demand applications.

Key Features

Compressor Pump

• Heavy-duty cast iron two-stage pump

• Splash-lubricated for long service life

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Motor

• Industrial low-RPM electric motor

• Magnetic starter with thermal overload protection

• 1-Phase, 230V, 62.0A

Frame & Construction

• Powder-coated ASME 120-gallon horizontal receiver tank

• Reinforced 3/16" base plate minimizes vibration

• Two-piece powder-coated belt guard

• Removable base plate for flexible installation

Components

• ASME safety valves

• Tank pressure gauge

• Hour meter

• Large flywheel

• Intake filter/silencer

• Tank shut-off valve

• 3-position selector switch:
  • Compressor 1 (lead)
  • Automatic alternation
  • Compressor 2 (lead)

• Start/stop controls set at:
  • 110–140 PSI
  • 145–175 PSI

Specifications

Performance

Weights & Dimensions

Warranty

• 1-Year – Electric Motor

• 2-Year – Pump Exchange
