Electric • Duplex Two Stage • 120-Gallon • 5 HP × 2 • 230V (3-Phase)

Part Number: ACD-23305-120HM
Category: Electric Air Compressor (Duplex, Two Stage, Horizontal Tank)

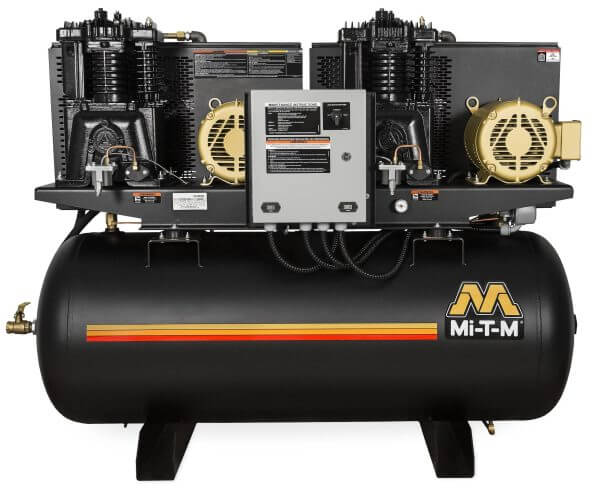

The Mi-T-M M Series Duplex 120-Gallon Horizontal Air Compressor is engineered for high-demand industrial environments, offering redundant motor/pump systems for continuous-duty operation. With dual 5.0 HP low-RPM motors and a cast-iron two-stage pump assembly, this unit delivers a powerful 36.0 CFM at 175 PSI, making it ideal for manufacturing shops, automotive service bays, fabrication facilities, and multi-station pneumatic setups.

Its duplex alternation system automatically rotates between pumps to reduce wear, while maintaining maximum air delivery when required. The ASME-certified horizontal tank and industrial-grade components ensure long-term, reliable performance.

Key Features

Compressor Pump

• Heavy-duty cast iron two-stage pump

• Splash-lubricated for durability

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Motors

• Dual 5.0 HP industrial low-RPM electric motors

• 3-Phase, 230V, 27.6A

• Magnetic starter with thermal overload protection

• Built for continuous-duty industrial workloads

Frame & Construction

• Powder-coated ASME 120-gallon horizontal receiver tank

• Reinforced 3/16-inch anti-vibration base plate

• Two-piece powder-coated belt guard

• Removable base plate for service truck or shop installation

• Bolt-down footprint: 34.5" × 23.5"

Components

• ASME safety valves

• Tank pressure gauge

• Hour meter

• Large balanced flywheel

• Intake filter/silencer

• Tank shut-off valve

• 3-mode selector switch:

  • Compressor 1 (lead pump)

  • Automatic alternating

  • Compressor 2 (lead pump)

• Start/stop pressure settings:

  • 110–140 PSI

  • 145–175 PSI

Specifications

Performance

Weights & Dimensions

Warranty

• 1-Year – Electric Motors

• 2-Year – Pump Exchange
