Electric • Duplex Two Stage • 120-Gallon • 5 HP × 2 • 200V (3-Phase)

Part Number: ACD-20305-120HM
Category: Electric Air Compressor (Duplex, Two Stage, Horizontal Tank)

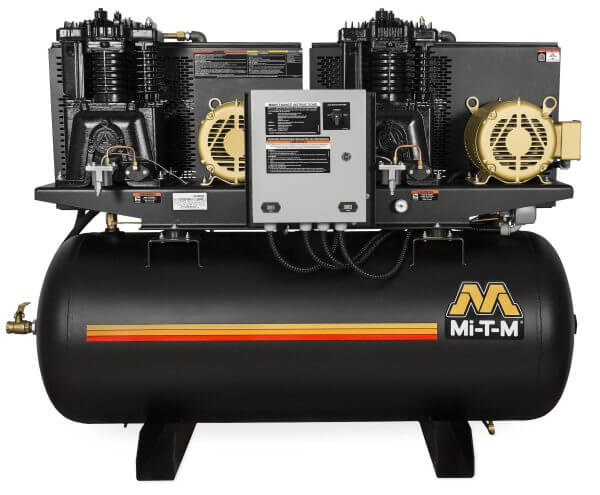

The Mi-T-M M Series Duplex 120-Gallon Horizontal Air Compressor delivers maximum air output for industrial shops, manufacturing facilities, and multi-station work environments that demand nonstop air supply. Featuring dual 5.0 HP low-RPM industrial motors and a rugged two-pump duplex design, this unit produces 36.0 CFM at 175 PSI, ensuring high performance for impact wrenches, sanders, grinders, spray guns, and heavy pneumatic systems.

Built with an ASME-certified 120-gallon tank, magnetic starters, an automatic alternation switch, and a cast-iron two-stage pump, the M Series Duplex is engineered for long-duty cycles, reduced wear, and exceptional reliability.

Key Features

Compressor Pump

• Heavy-duty cast iron two-stage pump

• Splash-lubricated for extended pump life

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Motors

• Dual 5.0 HP industrial low-RPM electric motors

• 3-Phase, 200V, 32.2A

• Magnetic starter with thermal overload protection

• Designed for continuous-duty industrial applications

Frame & Construction

• Powder-coated ASME 120-gallon horizontal tank

• Reinforced 3/16-inch base plate minimizes vibration

• Two-piece powder-coated belt guard

• Removable base plate for easier installation

• Bolt-down footprint: 34.5" × 23.5"

Components

• ASME safety valves

• Tank pressure gauge

• Hour meter

• Large balanced flywheel

• Intake filter/silencer

• Tank shut-off valve

• 3-Position Operating Modes:

  • Compressor 1 (lead pump)

  • Automatic alternation

  • Compressor 2 (lead pump)

• Dual pressure control settings:

  • 110–140 PSI

  • 145–175 PSI

Specifications

Performance

Weights & Dimensions

Warranty

• 1-Year – Electric Motors

• 2-Year – Pump Exchange
