Electric • Duplex Two Stage • 120-Gallon • 5 HP × 2 • 230V (Single Phase)

Part Number: ACD-23105-120HM
Category: Electric Air Compressor (Duplex, Two Stage, Horizontal Tank)

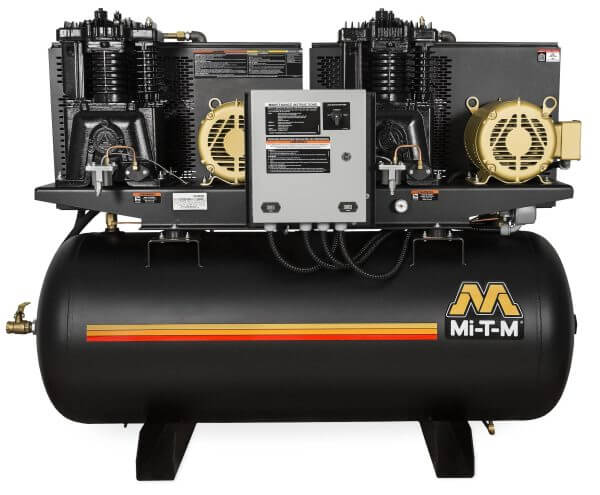

The Mi-T-M M Series Duplex 120-Gallon Horizontal Air Compressor is designed for industrial shops, manufacturing facilities, automotive service centers, and high-demand work environments that require maximum continuous air output with built-in redundancy. Equipped with dual 5.0 HP low-RPM industrial motors and a duplex two-pump system, this unit produces an impressive 36.0 CFM at 175 PSI, ensuring consistent performance for air-hungry tools and multi-user setups.

With an ASME 120-gallon tank, dual magnetic starters, an automatic alternation system, and a rugged cast-iron pump design, the M Series Duplex is built for long service life and heavy-duty shop environments.

Key Features

Compressor Pump

• Heavy-duty cast iron two-stage pump

• Splash-lubricated for extended durability

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Motors

• Dual 5.0 HP industrial low-RPM electric motors

• Magnetic starter provides thermal overload protection

• Designed for long-duty cycles and high efficiency

Frame & Construction

• Powder-coated ASME-certified 120-gallon horizontal tank

• Reinforced 3/16-inch vibration-reducing base plate

• Powder-coated two-piece belt guard

• Removable base plate for easier installation and service

Components

• ASME safety valves

• Tank pressure gauge

• Hour meter for maintenance tracking

• Large balanced flywheel for smooth operation

• Intake filter/silencer

• Tank shut-off valve

• Three-position functionality:

  • Compressor 1 (lead pump)

  • Automatic alternating

  • Compressor 2 (lead pump)

• Dual pressure controls:

  • 110–140 PSI

  • 145–175 PSI

Specifications

Performance

Weights & Dimensions

Warranty

• 1-Year – Electric Motors

• 2-Year – Pump Exchange
