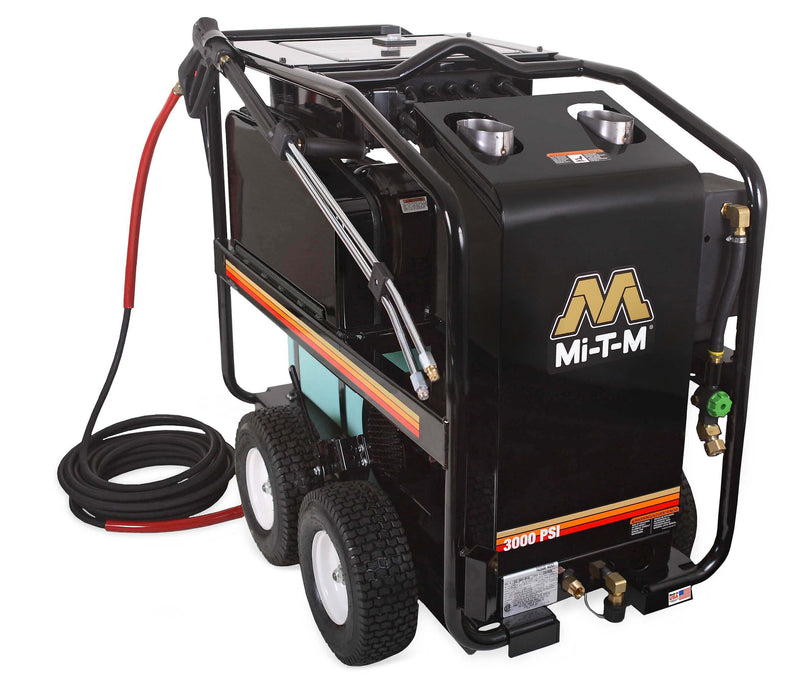

Mi-T-M HSE Series Hot Water Pressure Washer – HSE-3004-0M10, Electric, Belt Drive, 3000 PSI, 4.0 GPM

Electric • Belt Drive • 3000 PSI • 4.0 GPM

Part Number: HSE-3004-0M10
Category: Electric Hot Water Pressure Washer (Belt Drive)
Fuel Source: Electric Motor + Diesel/Kerosene Burner
Design: Heavy-Duty Industrial Portable Washer

The Mi-T-M HSE Series HSE-3004-0M10 is a premium electric hot water pressure washer engineered for industrial and commercial environments that demand maximum cleaning power, reliability, and extended duty cycles. Delivering 3000 PSI and 3.5–4.0 GPM, this model excels at removing baked-on grease, oils, hardened residue, and industrial contaminants in facilities such as manufacturing plants, garages, warehouses, food processing areas, and service shops.

Powered by an 8.0 HP TEFC electric motor and paired with a high-efficiency top-fired diesel/kerosene burner, this unit produces a 150°F temperature rise and a 225°F maximum outlet temperature. Built on a reinforced powder-coated steel frame with flat-free tires and a balanced lifting hook, the HSE Series offers outstanding mobility and rugged durability.

Key Features

Pump System

• External bypass system prevents heat buildup

• Factory-preset unloader

• Forged brass manifold

• Thermal relief valve

• High-pressure detergent injector

• Industrial General Pump (7-Year Warranty)

Motor

• Totally Enclosed Fan-Cooled (TEFC) electric motor

• Manual thermal overload protection

• 35-foot power cord

• 8.0 HP, 230V, 1Ø, 36.0A

• Plug Type: NEMA 6-50P

Frame & Mobility

• Reinforced powder-coated steel frame

• Center-balanced lifting hook for easy hoisting

• 13-inch flat-free tires

• Designed for industrial portability

Heating System

• Energy-efficient top-fired heat exchanger

• Burner compatible with No. 1 or No. 2 diesel / kerosene

• (Not approved for bio-fuel)

• Temperature rise: 150°F

• Maximum outlet temperature: 225°F

• Burner fuel tank capacity: 10.0 gallons

Included Accessories

• Quick-connect nozzles: 0°, 15°, 25°, 40°

• 50 ft × 3/8 in steel wire-braided hose

• Adjustable-pressure insulated dual-lance wand

• Industrial trigger gun

Specifications

Performance

Weights & Dimensions

Warranty

• 1-Year – Electric Motor

• 3-Year – Heating Coil

• 7-Year – General Pump
