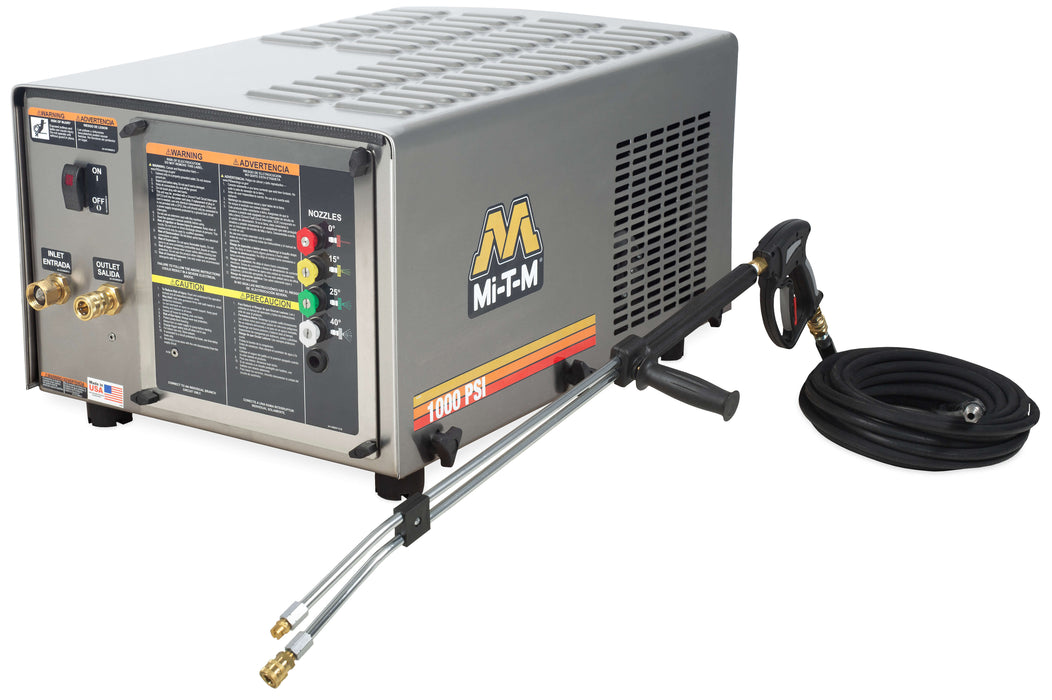

Mi-T-M CW Premium Series Cold Water Pressure Washer – CW-1003-SME1, Electric Belt Drive
Electric Belt Drive | Stationary | 1000 PSI | 2.5 GPM
Part Number: CW-1003-SME1
Motor: 2.0 HP, 120V, 1Ø
PSI: 1000
GPM: 2.5
The Mi-T-M CW-1003-SME1 is a stationary, belt-drive cold water pressure washer engineered for permanent installation in wash bays, commercial kitchens, restaurants, equipment shops, and indoor cleaning stations. Built with a durable stainless-steel cabinet and powered by a reliable open drip-proof electric motor, this model delivers long-lasting performance, low maintenance, and quiet operation—ideal for daily cleaning of equipment, vehicles, and facility surfaces.
Featuring a General triplex belt-drive pump, time-delay shutdown, and a chemical-resistant design, the CW-1003-SME1 is optimized for facilities that demand safe, efficient, and consistent cleaning capability.
Key Features
General Belt-Drive Pump
-
Factory preset unloader for stable operating pressure
-
Forged brass manifold for extended pump life
-
Thermal relief valve protects against overheating
-
Quick-connect low-pressure detergent injector
-
Accepts incoming water up to 165°F
-
Backed by a 7-Year General Pump Warranty
2.0 HP Electric Motor
-
Open drip-proof (ODP) motor with manual thermal overload protection
-
4-ft power cord for flexible installation
-
Smooth, low-noise operation ideal for indoor facilities
-
1-Year Electric Motor Warranty
Stainless-Steel Cabinet Frame
-
Corrosion-resistant stainless-steel enclosure with removable panel
-
Four rubber isolators reduce vibration and protect internal components
-
Built for long-term use in wet or corrosive environments
Time-Delay Shutdown System
-
Automatically shuts off the motor after inactivity
-
Reduces wear, saves energy, and improves component life
Included Accessories
-
Quick-connect nozzles: 0°, 15°, 25°, 40°
-
50 ft. x 3/8 in. black high-pressure hose
-
36-inch adjustable dual lance
-
Insulated trigger gun
Specifications
| Specification | Detail |
|---|---|
| PSI | 1000 |
| GPM | 2.5 |
| Motor | 2.0 HP, 120V, 1Ø, 18.8A |
| Pump | General |
| Plug Type | NEMA 5-20P |
| Net Weight | 172 lbs |
| Shipping Weight | 222 lbs |
| Length | 29.50 in |
| Width | 20.50 in |
| Height | 15.00 in |
Warranty
-
1 Year – Electric Motor
-
7 Years – General Pump
