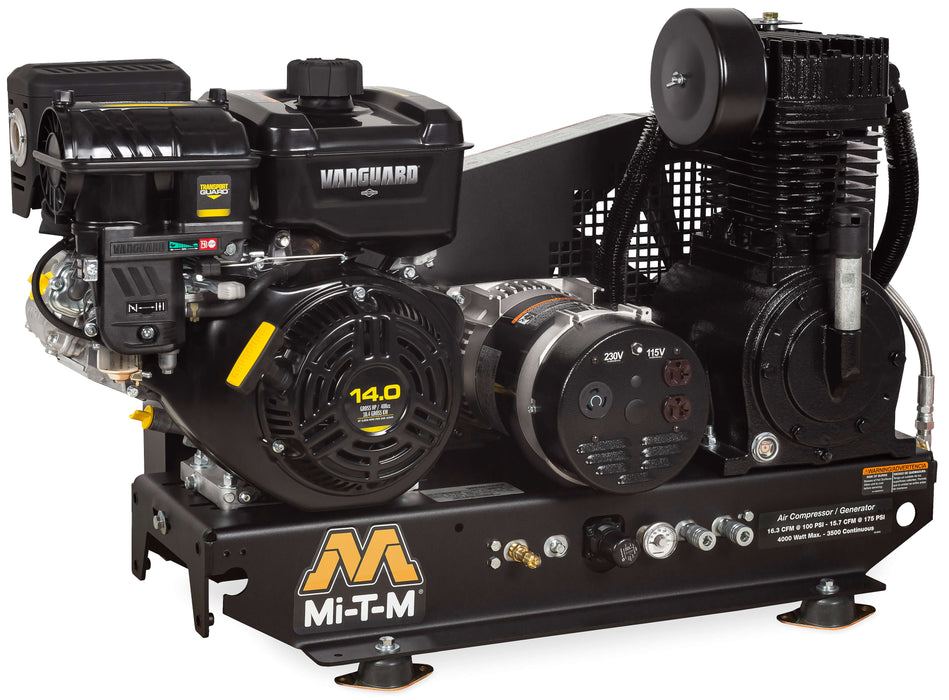

Mi-T-M Base-Mount Two-Stage Gasoline Air Compressor / Generator – Model AG2-SV14-B
Model: AG2-SV14-B
Category: Base-Mount Air Compressor Generator Combo | Two-Stage
Mounting Type: Base-Mount (Receiver Tank Required)
Starting System: Recoil Start
Engine Brand: Vanguard® OHV
The Mi-T-M AG2-SV14-B delivers dependable compressed air and electrical power in a rugged base-mount configuration designed for custom installations, service trucks, and stationary applications requiring a separate receiver tank.
Powered by a proven 408cc Vanguard® OHV gasoline engine, this unit produces 16.4 CFM at 90 PSI, 15.7 CFM at 175 PSI, and up to 4,000 watts of generator output. A brushless alternator with 100% copper windings ensures stable, low-distortion power for tools and equipment on demanding jobsites.
⚠️ Receiver tank required (not included).
⚠️ Recoil start configuration (no electric start).
Key Features
Compressor Pump
-
Two-stage cast iron compressor pump
-
Splash lubricated for extended service life
-
Stainless-steel braided discharge hose
-
Large canister intake filter
-
Oil level sight indicator
Generator
-
Brushless alternator
-
Total harmonic distortion (THD) < 6%
-
100% copper windings
-
Receptacles:
-
(2) NEMA 5-20R – 120V, 20A
-
(1) NEMA L6-20R – 240V, 20A
-
Frame & Mounting
-
Heavy-duty 3/16-inch base plate to reduce vibration
-
Powder-coated two-piece belt guard
-
Base-mount design for custom receiver tank installations
Components & Controls
-
Regulator with dual gauges (tank & outlet pressure)
-
150-PSI maximum rated regulator
-
Manual drain valves for proper maintenance
-
12 or 16½-inch flywheel
-
Quality pilot valve unloader
Performance Specifications
Air Compressor Output
| Specification | Value |
|---|---|
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
Generator Output
| Specification | Value |
|---|---|
| Max Alternator Output | 4,000 watts |
| Continuous (Compressor On-Load) | 2,300 watts |
| Continuous (Compressor Off-Load) | 3,500 watts |
Engine
| Specification | Detail |
|---|---|
| Engine | Vanguard® OHV |
| Displacement | 408cc |
| Fuel Type | Gasoline |
| Starting | Recoil Start |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 325 lbs |
| Shipping Weight | 390 lbs |
| Length | 47.00 in |
| Width | 22.00 in |
| Height | 28.00 in |
Compliance & Notes
-
Receiver tank required (not included)
-
49-state engine – not for sale in California
-
CARB-compliant engine required for California sales
-
Consult factory for CARB-approved configurations
Ideal Applications
-
Service trucks with custom air tanks
-
Stationary shop installations
-
Contractors needing air + generator power in one unit
-
Fleet, municipal, and industrial setups
Warranty
-
2-Year Alternator Warranty
-
2-Year Pump Exchange Warranty
-
3-Year Vanguard® Engine Warranty
