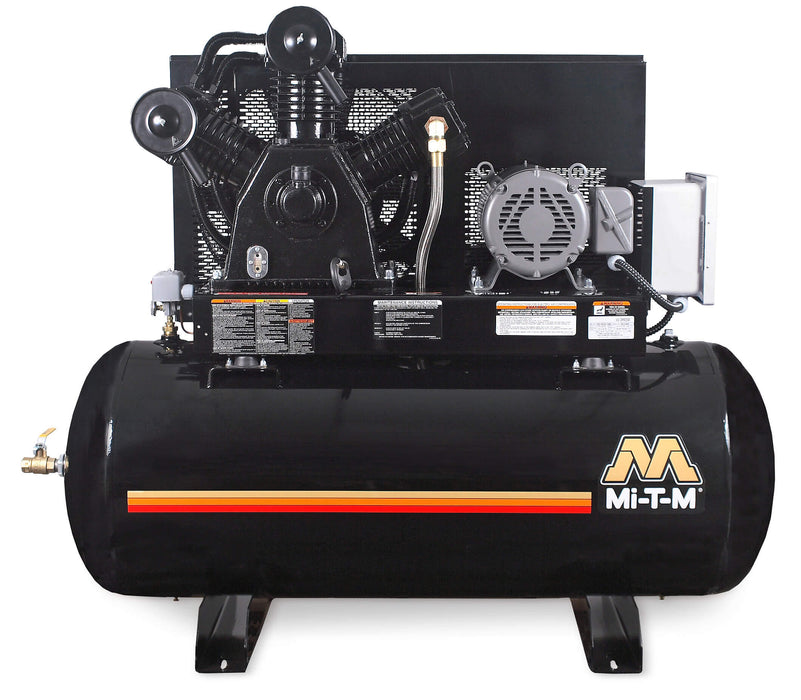

Mi-T-M AES Series Simplex Two-Stage Horizontal Air Compressor – 15 HP, 120-Gallon, 175 PSI, 3-Phase, 460V

Model: AES-46315-120H
Category: AES Series | Simplex | Horizontal | Two-Stage | Industrial Electric Air Compressor

The Mi-T-M AES Series 15 HP Simplex Horizontal Air Compressor is engineered for industrial and commercial operations that require high airflow, stable pressure, and dependable continuous-duty performance in a streamlined simplex configuration. Delivering 46.5 CFM at 175 PSI, this two-stage compressor is ideal for service bays, fabrication shops, maintenance facilities, and heavy shop-air applications.

Built with a cast-iron two-stage pump, a 120-gallon ASME-rated horizontal receiver tank, and a low-RPM industrial motor, the AES Series emphasizes durability, reduced wear, and long service life in demanding environments.

Key Features

Compressor Pump

• Heavy-duty cast-iron two-stage pump

• Splash-lubricated for extended pump life

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Motor

• Industrial low-RPM electric motor

• Magnetic starter with thermal overload protection

• 460V, 3-Phase, 19.0A electrical configuration

Frame & Construction

• Powder-coated ASME 120-Gallon Horizontal Receiver Tank

• Reinforced 3/16" steel base plate to reduce vibration

• Powder-coated two-piece belt guard

• Removable base plate for flexible installation

Components

• ASME safety valves

• Tank pressure gauge

• Hour meter

• Large cooling flywheel

• Intake filter/silencer

• Tank shut-off valve

• Pressure switch set at 145–175 PSI

Specifications

Performance

Weight

Warranty

• 1 Year – Electric Motor

• 2 Year – Pump Exchange
