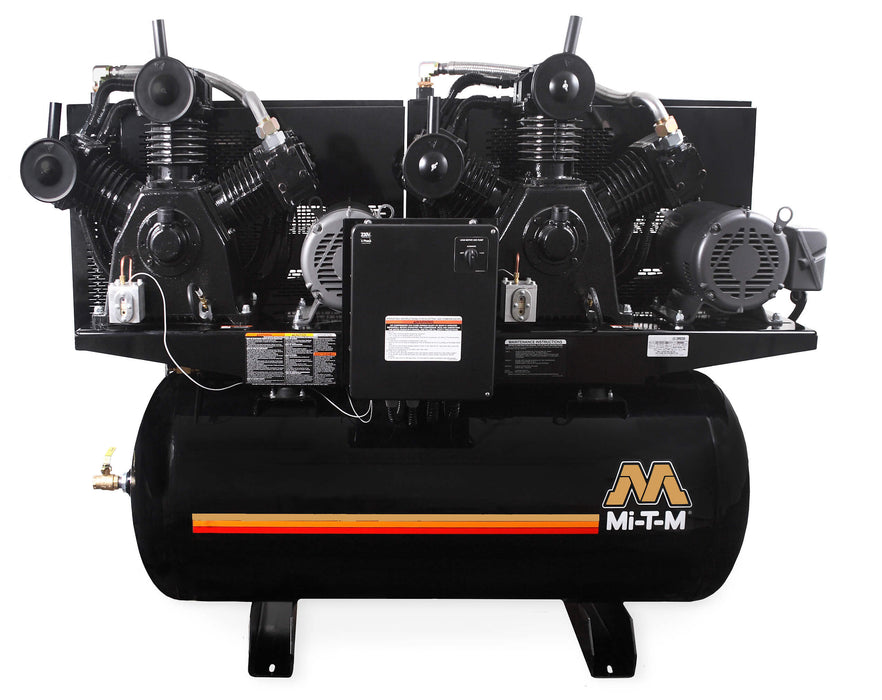

Mi-T-M AED Series Two-Stage Duplex Horizontal Air Compressor – 15 HP, 120-Gallon, 175 PSI, 3-Phase, 230V

Model: AED-23315-120H
Category: AED Series | Duplex | Horizontal | Two-Stage | Industrial Electric Air Compressor

The Mi-T-M AED Series 15 HP Duplex Horizontal Air Compressor is engineered for high-demand industrial environments that require reliable airflow, built-in redundancy, and continuous-duty performance. Producing 93.0 CFM at 175 PSI, this two-stage duplex compressor is ideal for service bays, manufacturing plants, blast rooms, and multi-operator compressed air systems.

Built with dual cast-iron two-stage pumps, a 120-gallon ASME-rated horizontal receiver tank, and an automatic alternating lead/lag control system, this unit balances pump runtime to reduce wear while maintaining consistent air delivery under heavy load.

Key Features

Compressor Pumps

• Dual heavy-duty cast-iron two-stage pumps

• Splash-lubricated for extended pump life

• Stainless-steel braided discharge hoses

• Large canister intake filters

• Oil level sight indicators

Motor

• Industrial low-RPM electric motors

• Magnetic starters with thermal overload protection

• 230V, 3-Phase, 76.0A electrical configuration

Frame & Construction

• Powder-coated ASME 120-Gallon Horizontal Receiver Tank

• Reinforced 3/16" steel base plate to reduce vibration

• Powder-coated two-piece belt guards

• Removable base plate for flexible installation

Components & Controls

• ASME safety valves

• Tank pressure gauge

• Hour meter

• Large cooling flywheels

• Intake filter/silencers

• Tank shut-off valve

• 3-position selector switch:

  • Compressor 1 (lead motor pump)

  • Automatic alternating (lead/lag operation)

  • Compressor 2 (lead motor pump)

• Dual pressure control ranges: 110–140 PSI and 145–175 PSI

Specifications

Performance

Weight

Warranty

• 1 Year – Electric Motor

• 2 Year – Pump Exchange
