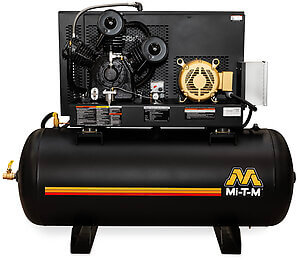

Mi-T-M ADS M-Series Simplex Two-Stage Horizontal Air Compressor – 10 HP, 120-Gallon, 175 PSI, 3-Phase, 460V

Model: ADS-46310-120HM
Category: ADS M-Series | Simplex | Horizontal | Two-Stage | Industrial Electric Compressor

The Mi-T-M ADS M-Series 10 HP Simplex Two-Stage Horizontal Air Compressor is designed for industrial workshops, service bays, and commercial facilities that require reliable high-pressure air, continuous-duty performance, and efficient horizontal installation. Producing 34.2 CFM at 175 PSI, this compressor is well suited for air tools, spray equipment, and demanding shop operations.

Built with a heavy-duty cast-iron two-stage compressor pump, an ASME-rated 120-gallon horizontal receiver tank, and a low-RPM industrial motor, this unit delivers long service life, reduced mechanical wear, and dependable operation in high-demand environments.

Key Features

Compressor Pump

• Heavy-duty cast-iron two-stage compressor pump

• Splash-lubricated design for extended pump life

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Motor

• Industrial low-RPM electric motor

• Magnetic starter with thermal overload protection

• 460V, 3-Phase, 13.4A electrical configuration

Frame & Construction

• Powder-coated ASME 120-Gallon Horizontal Receiver Tank

• Reinforced 3/16" steel base plate to reduce vibration

• Powder-coated two-piece belt guard

• Removable base plate for flexible installation

Components

• ASME safety valves

• Tank pressure gauge

• Hour meter

• Large cooling flywheel

• Intake filter/silencer

• Tank shut-off valve

• Start/stop pressure control set at 145–175 PSI

Specifications

Performance

Weight

Warranty

• 1 Year – Electric Motor

• 2 Year – Pump Exchange
