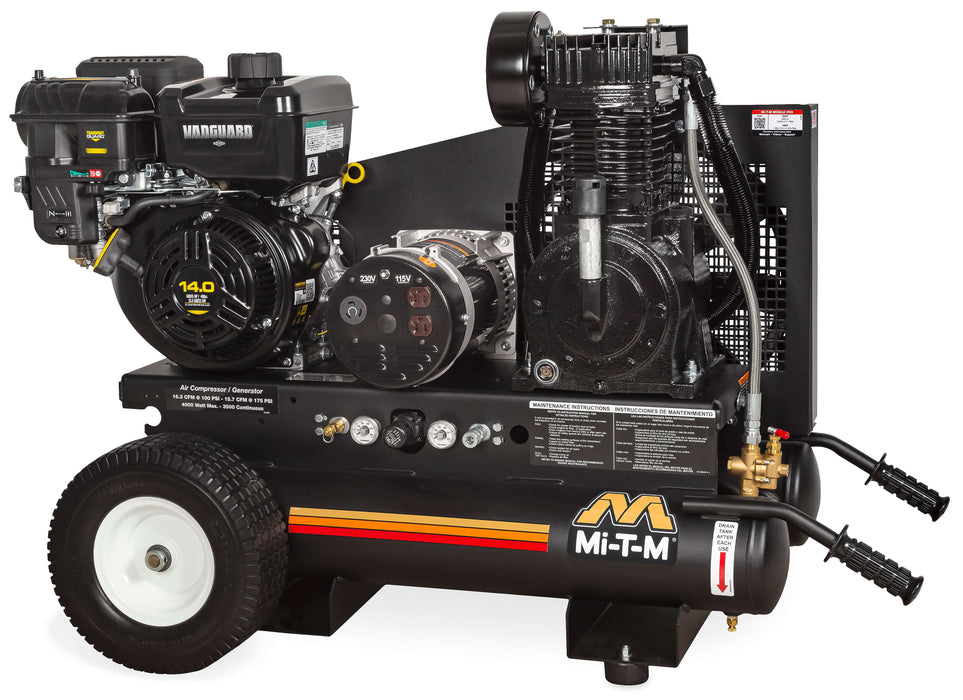

Mi-T-M 8-Gallon Two-Stage Gasoline Air Compressor / Generator – Model AG2-PV14-08M1E
Model: AG2-PV14-08M1E
Category: Gasoline Air Compressor Generator Combo | Two-Stage Combo Units
Starting System: Electric Start (battery, box & cables not included)
Engine Brand: Vanguard (Briggs & Stratton)
The Mi-T-M AG2-PV14-08M1E delivers powerful compressed air and dependable generator output in a compact, jobsite-ready design. Powered by a 408cc Vanguard OHV gasoline engine, this unit produces 16.4 CFM at 90 PSI, 15.7 CFM at 175 PSI, and up to 4,000 watts of electrical output—making it ideal for contractors who need reliable air and power from one rugged machine.
With a two-stage cast iron compressor pump, brushless alternator, electric start, and heavy-duty wheeled frame, the AG2-PV14-08M1E is built for demanding professional use in remote and mobile jobsite environments.
Key Features
Compressor Pump
-
Two-stage cast iron compressor pump
-
Splash lubricated for extended service life
-
Stainless-steel braided discharge hose
-
Large canister intake filter
-
Oil level sight indicator
Generator
-
Brushless alternator
-
Total harmonic distortion (THD) < 6%
-
100% copper windings
-
Receptacles:
-
(2) NEMA 5-20R – 120V, 20A
-
(1) NEMA L6-20R – 240V, 20A
-
Frame & Mobility
-
Powder-coated twin 8-gallon receiver tanks
-
Heavy-duty 3/16-inch base plate to reduce vibration
-
Powder-coated two-piece belt guard
-
13-inch flat-free tires for easy jobsite transport
Components & Controls
-
Regulator with dual gauges (tank & outlet pressure)
-
150-PSI maximum rated regulator
-
Manual drain valves for proper maintenance
-
12 or 16½-inch flywheel
-
Quality pilot valve unloader
Performance Specifications
Air Compressor Output
| Specification | Value |
|---|---|
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
Generator Output
| Specification | Value |
|---|---|
| Max Alternator Output | 4,000 watts |
| Continuous (Compressor On-Load) | 2,300 watts |
| Continuous (Compressor Off-Load) | 3,500 watts |
Engine
| Specification | Detail |
|---|---|
| Engine | Vanguard OHV |
| Displacement | 408cc |
| Fuel Type | Gasoline |
| Starting | Electric Start |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 382 lbs |
| Shipping Weight | 457 lbs |
| Length | 52.00 in |
| Width | 28.00 in |
| Height | 34.00 in |
Compliance Notes
-
49-state engine
-
Not for sale in California
-
CARB-compliant versions available by factory request
Ideal Applications
-
Professional contractors and trades
-
Jobsites requiring high-CFM air tools plus generator power
-
Mobile service trucks and remote locations
-
Users preferring Vanguard engine durability with electric start convenience
Warranty
-
2-Year Alternator Warranty
-
2-Year Pump Exchange Warranty
-
3-Year Vanguard Engine Warranty
