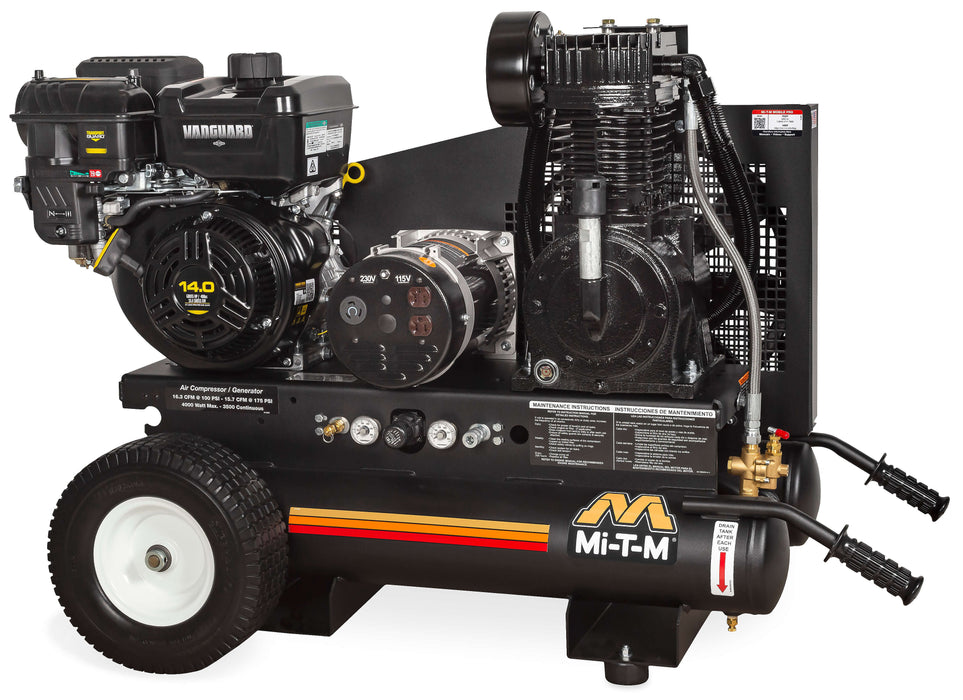

Mi-T-M 8-Gallon Two-Stage Gasoline Air Compressor / Generator – Model AG2-PV14-08M1
Model: AG2-PV14-08M1
Category: Gasoline Air Compressor Generator Combo | Two-Stage Combo Units
Starting System: Recoil Start
Engine Brand: Vanguard (Briggs & Stratton)
The Mi-T-M AG2-PV14-08M1 combines high-CFM compressed air and reliable generator output in a compact, jobsite-ready design. Powered by a 408cc Vanguard OHV gasoline engine, this unit delivers 16.4 CFM at 90 PSI, 15.7 CFM at 175 PSI, and up to 4,000 watts of electrical output—making it an excellent solution for contractors who need both air and power from a single machine.
Built with a rugged two-stage cast iron compressor pump, brushless alternator, and heavy-duty wheeled frame, the AG2-PV14-08M1 is engineered for demanding field applications where durability and performance are critical.
Key Features
Compressor Pump
-
Two-stage cast iron compressor pump
-
Splash lubricated for long service life
-
Stainless-steel braided discharge hose
-
Large canister intake filter
-
Oil level sight indicator
Generator
-
Brushless alternator
-
Total harmonic distortion (THD) < 6%
-
100% copper windings
-
Receptacles:
-
(2) NEMA 5-20R – 120V, 20A
-
(1) NEMA L6-20R – 240V, 20A
-
Frame & Construction
-
Powder-coated twin 8-gallon receiver tanks
-
Heavy-duty 3/16-inch base plate to reduce vibration
-
Powder-coated two-piece belt guard
-
13-inch flat-free tires for easy transport
Components & Controls
-
Regulator with dual gauges (tank & outlet pressure)
-
150-PSI maximum rated regulator
-
Manual drain valves for proper maintenance
-
12 or 16½-inch flywheel
-
Quality pilot valve unloader
Performance Specifications
Air Compressor Output
| Specification | Value |
|---|---|
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
Generator Output
| Specification | Value |
|---|---|
| Max Alternator Output | 4,000 watts |
| Continuous (Compressor On-Load) | 2,300 watts |
| Continuous (Compressor Off-Load) | 3,500 watts |
Engine
| Specification | Detail |
|---|---|
| Engine | Vanguard OHV |
| Displacement | 408cc |
| Fuel Type | Gasoline |
| Starting | Recoil Start |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 375 lbs |
| Shipping Weight | 450 lbs |
| Length | 52.00 in |
| Width | 28.00 in |
| Height | 34.00 in |
Compliance Notes
-
49-state engine
-
Not for sale in California
-
CARB-compliant versions available by factory request
Ideal Applications
-
Contractors and professional trades
-
Jobsites requiring high-CFM air tools plus generator power
-
Mobile service and remote work locations
-
Users who prefer Vanguard engine reliability with recoil start simplicity
Warranty
-
2-Year Alternator Warranty
-
2-Year Pump Exchange Warranty
-
3-Year Vanguard Engine Warranty
