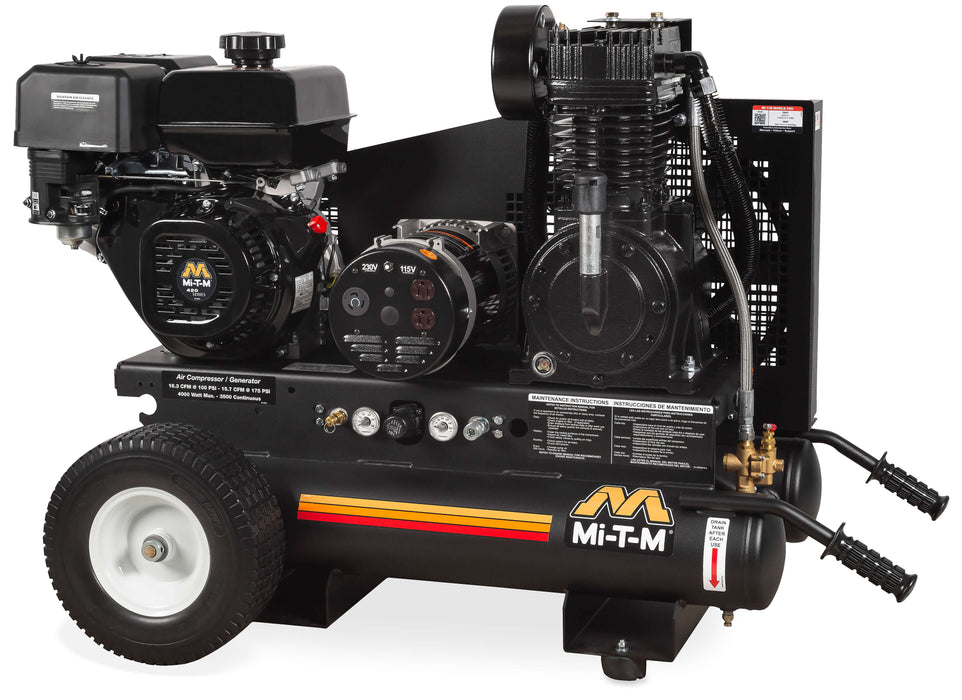

Mi-T-M 8-Gallon Two-Stage Gasoline Air Compressor / Generator – Model AG2-PM14-08M1E
Model: AG2-PM14-08M1E
Category: Gasoline Air Compressor Generator Combo | Two-Stage Combo Units
Starting System: Electric Start (battery, box & cables not included)
Engine Brand: Mi-T-M
The Mi-T-M AG2-PM14-08M1E delivers powerful compressed air and dependable generator output in a compact, jobsite-ready package. Powered by a 420cc Mi-T-M OHV gasoline engine, this electric-start unit produces 16.4 CFM at 90 PSI, 15.7 CFM at 175 PSI, and up to 4,000 watts of generator power—ideal for contractors who need high airflow and electrical output from a single machine.
With a rugged two-stage compressor pump, brushless alternator, and electric start convenience, the AG2-PM14-08M1E is built for demanding field use where portability and performance matter.
Key Features
Compressor Pump
-
Two-stage cast iron compressor pump
-
Splash lubricated for extended pump life
-
Stainless-steel braided discharge hose
-
Large canister intake filter
-
Oil level sight indicator
Generator
-
Brushless alternator
-
Total harmonic distortion (THD) < 6%
-
100% copper windings
-
Receptacles:
-
(2) NEMA 5-20R – 120V, 20A
-
(1) NEMA L6-20R – 240V, 20A
-
Frame & Construction
-
Powder-coated twin 8-gallon receiver tanks
-
Heavy-duty 3/16-inch base plate to minimize vibration
-
Powder-coated two-piece belt guard
-
13-inch flat-free tires for easy transport
Components & Controls
-
Regulator with dual gauges (tank & outlet pressure)
-
150-PSI maximum rated regulator
-
Manual drain valves for proper maintenance
-
12 or 16½-inch flywheel
-
Quality pilot valve unloader
Performance Specifications
Air Compressor Output
| Specification | Value |
|---|---|
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
Generator Output
| Specification | Value |
|---|---|
| Max Alternator Output | 4,000 watts |
| Continuous (Compressor On-Load) | 2,300 watts |
| Continuous (Compressor Off-Load) | 3,500 watts |
Engine
| Specification | Detail |
|---|---|
| Engine | Mi-T-M OHV |
| Displacement | 420cc |
| Fuel Type | Gasoline |
| Starting | Electric Start (battery not included) |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 382 lbs |
| Shipping Weight | 457 lbs |
| Length | 52.00 in |
| Width | 28.00 in |
| Height | 34.00 in |
Compliance Notes
-
CARB-compliant engine required for California
-
Consult factory for California-approved configurations
Ideal Applications
-
Contractors and professional trades
-
Jobsites requiring high-CFM air tools plus generator power
-
Mobile service trucks and field operations
-
Users who prefer electric start convenience over recoil
Warranty
-
2-Year Alternator Warranty
-
2-Year Pump Exchange Warranty
-
3-Year Mi-T-M Engine Warranty
