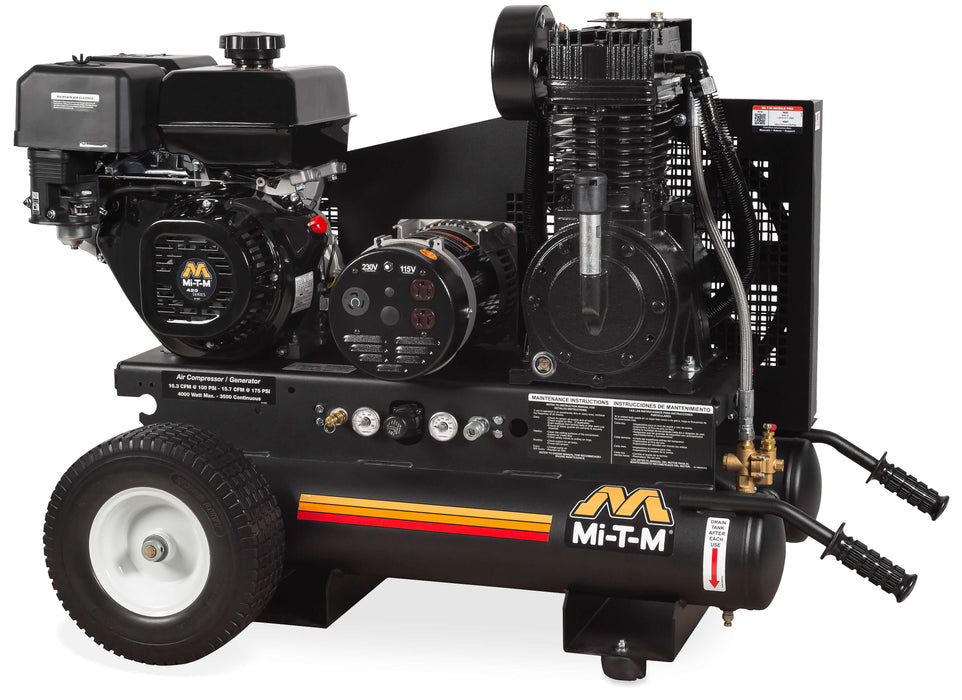

Mi-T-M 8-Gallon Two-Stage Gasoline Air Compressor / Generator – Model AG2-PM14-08M1
Model: AG2-PM14-08M1
Category: Gasoline Air Compressor Generator Combo | Two-Stage Combo Units
Starting System: Recoil Start
Engine Brand: Mi-T-M
The Mi-T-M AG2-PM14-08M1 is a compact, jobsite-ready 8-gallon two-stage air compressor and generator combination, designed to deliver both high-output compressed air and reliable electrical power from a single gasoline-powered unit. Driven by a 420cc Mi-T-M OHV engine, this model produces 16.4 CFM at 90 PSI, 15.7 CFM at 175 PSI, and up to 4,000 watts of generator output.
Built for contractors and professionals who need portability without sacrificing performance, the AG2-PM14-08M1 combines rugged construction, a brushless alternator, and a proven two-stage pump into one efficient package.
Key Features
Compressor Pump
-
Two-stage cast iron compressor pump
-
Splash lubricated for durability
-
Stainless-steel braided discharge hose
-
Large canister intake filter
-
Oil level sight indicator
Generator
-
Brushless alternator
-
Total harmonic distortion (THD) < 6%
-
100% copper windings
-
Receptacles:
-
(2) NEMA 5-20R – 120V, 20A
-
(1) NEMA L6-20R – 240V, 20A
-
Frame & Construction
-
Powder-coated twin 8-gallon receiver tanks
-
Heavy-duty 3/16-inch base plate to reduce vibration
-
Powder-coated two-piece belt guard
-
13-inch flat-free tires for easy jobsite transport
Components & Controls
-
Regulator with dual gauges (tank & outlet pressure)
-
150-PSI maximum rated regulator
-
Manual drain valves for routine maintenance
-
12 or 16½-inch flywheel
-
Quality pilot valve unloader
Performance Specifications
Air Compressor Output
| Specification | Value |
|---|---|
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
Generator Output
| Specification | Value |
|---|---|
| Max Alternator Output | 4,000 watts |
| Continuous (Compressor On-Load) | 2,300 watts |
| Continuous (Compressor Off-Load) | 3,500 watts |
Engine
| Specification | Detail |
|---|---|
| Engine | Mi-T-M OHV |
| Displacement | 420cc |
| Fuel Type | Gasoline |
| Starting | Recoil Start |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 375 lbs |
| Shipping Weight | 450 lbs |
| Length | 52.00 in |
| Width | 28.00 in |
| Height | 34.00 in |
Compliance Notes
-
CARB-compliant engine required for California
-
Consult factory for California-approved configurations
Ideal Applications
-
Contractors and professional trades
-
Mobile service and repair crews
-
Jobsites needing high-CFM air tools plus generator power
-
Users wanting two-stage performance without electric start
Warranty
-
2-Year Alternator Warranty
-
2-Year Pump Exchange Warranty
-
3-Year Mi-T-M Engine Warranty
