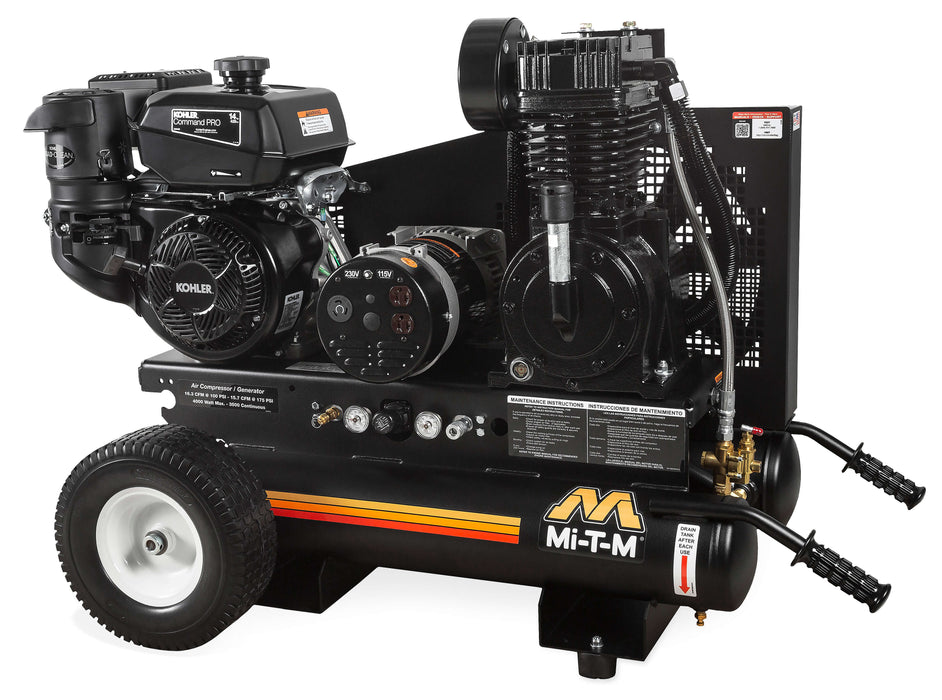

Mi-T-M 8-Gallon Two-Stage Gasoline Air Compressor / Generator – Model AG2-PK14-08M1E
Model: AG2-PK14-08M1E
Category: Gasoline Air Compressor Generator Combo | Two-Stage Combo Units
Starting System: Electric Start (Battery Not Included)
Engine Brand: Rehlko
The Mi-T-M AG2-PK14-08M1E delivers professional-grade compressed air and generator power in a compact, mobile 8-gallon two-stage platform, powered by a 429cc Rehlko CH440 OHV engine. Designed for contractors who need reliable air volume and electrical output on the same machine, this unit produces 16.4 CFM at 90 PSI, 15.7 CFM at 175 PSI, and up to 4,000 watts of generator power.
With electric start, rugged construction, and a brushless alternator, the AG2-PK14-08M1E is built to perform on demanding jobsites where downtime isn’t an option.
Key Features
Compressor Pump
-
Two-stage cast iron compressor pump
-
Splash lubricated for extended pump life
-
Stainless-steel braided discharge hose
-
Large canister intake filter
-
Oil level sight indicator
Generator
-
Brushless alternator
-
Total harmonic distortion (THD) < 6%
-
100% copper windings
-
Receptacles:
-
(2) NEMA 5-20R – 120V, 20A
-
(1) NEMA L6-20R – 240V, 20A
-
Frame & Construction
-
Powder-coated twin 8-gallon receiver tanks
-
Reinforced 3/16-inch base plate to reduce vibration
-
Powder-coated two-piece belt guard
-
13-inch flat-free tires for jobsite mobility
Components & Controls
-
Regulator with dual gauges (tank & outlet pressure)
-
150-PSI maximum rated regulator
-
Manual drain valves for routine maintenance
-
12 or 16½-inch flywheel
-
Quality pilot valve unloader
Performance Specifications
Air Compressor Output
| Specification | Value |
|---|---|
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
Generator Output
| Specification | Value |
|---|---|
| Max Alternator Output | 4,000 watts |
| Continuous (Compressor On-Load) | 2,300 watts |
| Continuous (Compressor Off-Load) | 3,500 watts |
Engine
| Specification | Detail |
|---|---|
| Engine | Rehlko CH440 OHV |
| Displacement | 429cc |
| Fuel Type | Gasoline |
| Starting | Electric Start (battery, box & cables not included) |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 382 lbs |
| Shipping Weight | 457 lbs |
| Length | 52.00 in |
| Width | 28.00 in |
| Height | 34.00 in |
Compliance Notes
-
49-state engine
-
Not for sale in California
-
CARB-compliant engine required for CA (consult factory)
Ideal Applications
-
Contractors and professional trades
-
Mobile service and repair trucks
-
Jobsites needing high-CFM air tools plus generator power
-
Users preferring electric start convenience with two-stage performance
Warranty
-
2-Year Alternator Warranty
-
2-Year Pump Exchange Warranty
-
3-Year Rehlko Engine Warranty
