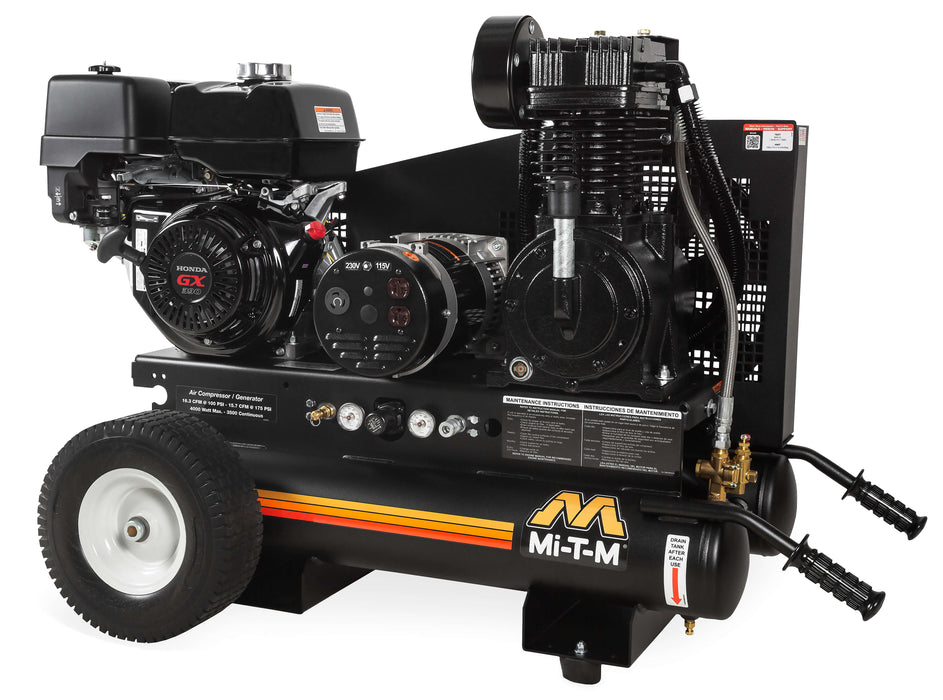

Mi-T-M 8-Gallon Two-Stage Gasoline Air Compressor / Generator – Model AG2-PH13-08M1E
Model: AG2-PH13-08M1E
Category: Gasoline Air Compressor Generator Combo | Two-Stage Combo Units
Starting System: Electric Start (Battery Not Included)
Engine Brand: Honda
The Mi-T-M AG2-PH13-08M1E combines two-stage compressed air performance with high-output generator power in a compact, mobile 8-gallon platform—now upgraded with electric start for added convenience. Delivering 16.4 CFM at 90 PSI, 15.7 CFM at 175 PSI, and up to 4,000 watts, this unit is built for professional contractors who demand both power and ease of operation on the jobsite.
Powered by a 389cc Honda GX390 OHV engine, the AG2-PH13-08M1E provides proven reliability, strong torque, and long service life in demanding environments.
Key Features
Compressor Pump
-
Two-stage cast iron compressor pump
-
Splash lubricated for durability
-
Stainless-steel braided discharge hose
-
Large canister intake filter
-
Oil level sight indicator
Generator
-
Brushless alternator
-
Total harmonic distortion (THD) less than 6%
-
100% copper windings
-
Receptacles:
-
(2) NEMA 5-20R – 120V, 20A
-
(1) NEMA L6-20R – 240V, 20A
-
Frame & Construction
-
Powder-coated twin 8-gallon receiver tanks
-
Reinforced 3/16-inch base plate to reduce vibration
-
Powder-coated two-piece belt guard
-
13-inch flat-free tires for easy jobsite transport
Components & Controls
-
Regulator with two gauges (tank & outlet pressure)
-
150-PSI maximum rated regulator
-
Manual drain valves for proper maintenance
-
12 or 16½-inch flywheel
-
Quality pilot valve unloader
Performance Specifications
Air Compressor Output
| Specification | Value |
|---|---|
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
Generator Output
| Specification | Value |
|---|---|
| Max Alternator Output | 4,000 watts |
| Continuous (Compressor On-Load) | 2,300 watts |
| Continuous (Compressor Off-Load) | 3,500 watts |
Engine
| Specification | Detail |
|---|---|
| Engine | Honda GX390 OHV |
| Displacement | 389cc |
| Fuel Type | Gasoline |
| Starting | Electric Start (battery, box & cables not included) |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 382 lbs |
| Shipping Weight | 457 lbs |
| Length | 52.00 in |
| Width | 28.00 in |
| Height | 34.00 in |
Compliance Notes
-
49-state engine
-
Not for sale in California
-
CARB-compliant engine required for CA (consult factory)
Ideal Applications
-
Professional contractors and remodelers
-
Mobile service and repair crews
-
Jobsites requiring high-CFM air tools plus generator power
-
Users who prefer electric start convenience with two-stage performance
Warranty
-
2-Year Alternator Warranty
-
2-Year Pump Exchange Warranty
-
3-Year Honda Engine Warranty
