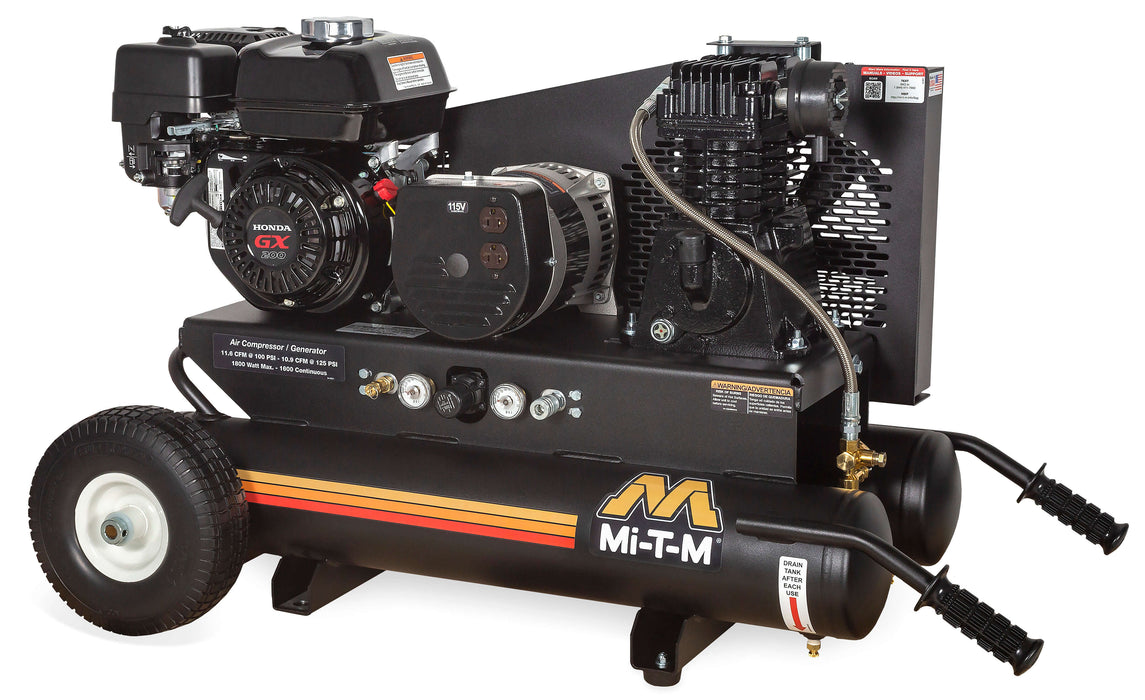

Mi-T-M 8-Gallon Single-Stage Gasoline Air Compressor / Generator – Model AG1-PM07-08M1

Model: AG1-PM07-08M1
Category: Gasoline Air Compressor Generator Combo | Portable Combo Units
Starting System: Recoil Start
Engine Brand: Mi-T-M

The Mi-T-M AG1-PM07-08M1 is a compact, jobsite-ready air compressor and generator combination designed to deliver dependable compressed air and electrical power wherever work takes you. Producing 11.9 CFM at 90 PSI and up to 1,800 watts of generator output, this unit is ideal for contractors, maintenance crews, and mobile applications that demand portability without sacrificing performance.

Powered by a 212cc Mi-T-M OHV gasoline engine, the AG1-PM07-08M1 offers reliable operation and long service life for everyday jobsite use.

Key Features

Compressor Pump

• Single-stage cast iron compressor pump

• Splash-lubricated for extended pump life

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Generator

• Brushless alternator

• Total harmonic distortion (THD) less than 6%

• 100% copper windings

• Receptacles:

  • (2) NEMA 5-20R – 120V, 20A

Frame & Construction

• Powder-coated twin 8-gallon receiver tanks

• Reinforced 3/16-inch base plate to reduce vibration

• Powder-coated two-piece belt guard

• 10-inch flat-free tires for easy transport

Components & Controls

• Regulator with two gauges (tank & outlet pressure)

• Manual drain valves for proper maintenance

• 12- or 16½-inch flywheel

• Quality pilot valve unloader

Performance Specifications

Air Compressor Output

Generator Output

Engine

Weights & Dimensions

Compliance Notes

• CARB-compliant engine required for California (consult factory)

Ideal Applications

• Light construction and remodeling

• Maintenance and service crews

• Mobile jobsite power and air supply

• Users seeking a compact compressor/generator combo with Mi-T-M engine support

Warranty

• 2-Year Alternator Warranty

• 2-Year Pump Exchange Warranty

• 3-Year Mi-T-M Engine Warranty
