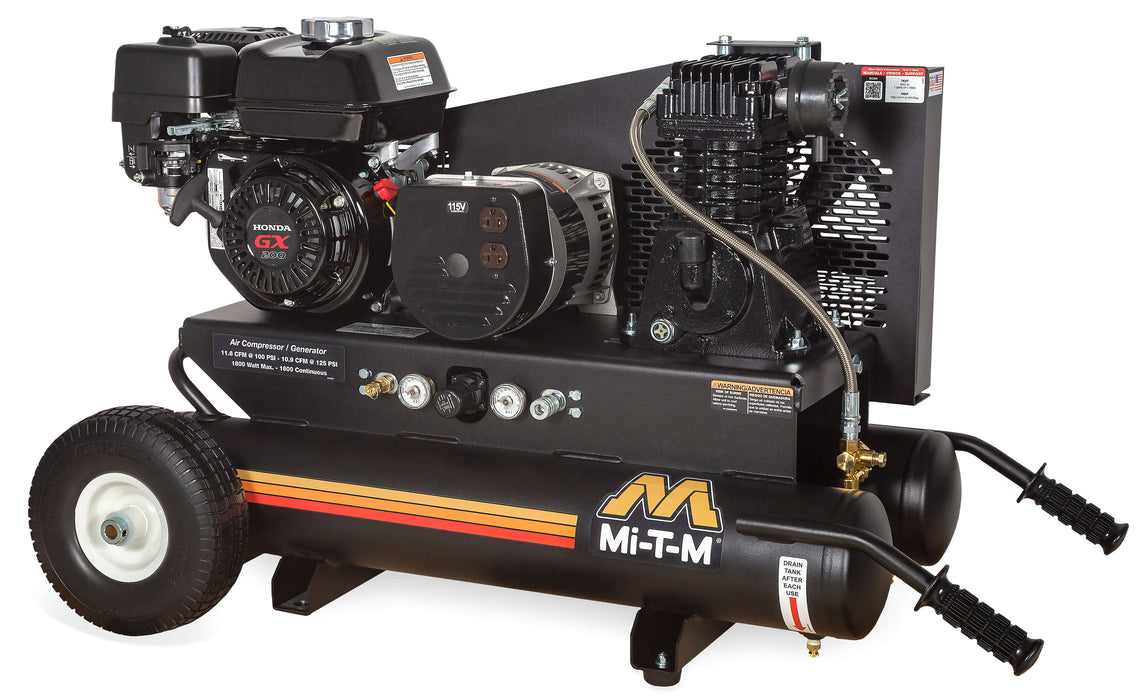

Mi-T-M 8-Gallon Single-Stage Gasoline Air Compressor / Generator – Model AG1-PH65-08M1
Model: AG1-PH65-08M1
Category: Gasoline Air Compressor Generator Combo | Portable Combo Units
Starting System: Recoil Start
Engine Brand: Honda
The Mi-T-M AG1-PH65-08M1 is a compact, jobsite-ready air compressor and generator combination designed to deliver reliable compressed air and electrical power wherever it’s needed. With 11.9 CFM at 90 PSI and up to 1,800 watts of generator output, this unit is ideal for contractors, maintenance crews, and mobile applications requiring portability without sacrificing performance.
Powered by a proven 196cc Honda GX200 OHV gasoline engine, the AG1-PH65-08M1 delivers dependable starts, efficient operation, and long service life in demanding environments.
Key Features
Compressor Pump
-
Single-stage cast iron compressor pump
-
Splash lubricated for extended pump life
-
Stainless-steel braided discharge hose
-
Large canister intake filter
-
Oil level sight indicator
Generator
-
Brushless alternator
-
Total harmonic distortion (THD) less than 6%
-
100% copper windings
-
Receptacles:
-
(2) NEMA 5-20R – 120V, 20A
-
Frame & Construction
-
Powder-coated twin 8-gallon receiver tanks
-
Reinforced 3/16-inch base plate to reduce vibration
-
Powder-coated two-piece belt guard
-
10-inch flat-free tires for easy transport
Components & Controls
-
Regulator with two gauges (tank & outlet pressure)
-
Manual drain valves for proper maintenance
-
12- or 16½-inch flywheel
-
Quality pilot valve unloader
Performance Specifications
Air Compressor Output
| Specification | Value |
|---|---|
| CFM @ 90 PSI | 11.9 |
| CFM @ 125 PSI | 10.9 |
Generator Output
| Specification | Value |
|---|---|
| Max Alternator Output | 1,800 watts |
| Continuous (Compressor On-Load) | 600 watts |
| Continuous (Compressor Off-Load) | 1,600 watts |
Engine
| Specification | Detail |
|---|---|
| Engine | Honda GX200 OHV |
| Displacement | 196cc |
| Fuel Type | Gasoline |
| Starting | Recoil Start |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 207 lbs |
| Shipping Weight | 257 lbs |
| Length | 44.50 in |
| Width | 26.00 in |
| Height | 27.50 in |
Compliance Notes
-
49-state engine
-
Not for sale in California
-
CARB-compliant engine required for California (consult factory)
Ideal Applications
-
Light construction and remodeling jobs
-
Maintenance and service crews
-
Mobile jobsite power and air supply
-
Applications requiring portable compressed air and electricity
-
Users who want Honda GX reliability in a compact combo unit
Warranty
-
2-Year Alternator Warranty
-
2-Year Pump Exchange Warranty
-
3-Year Honda Engine Warranty
