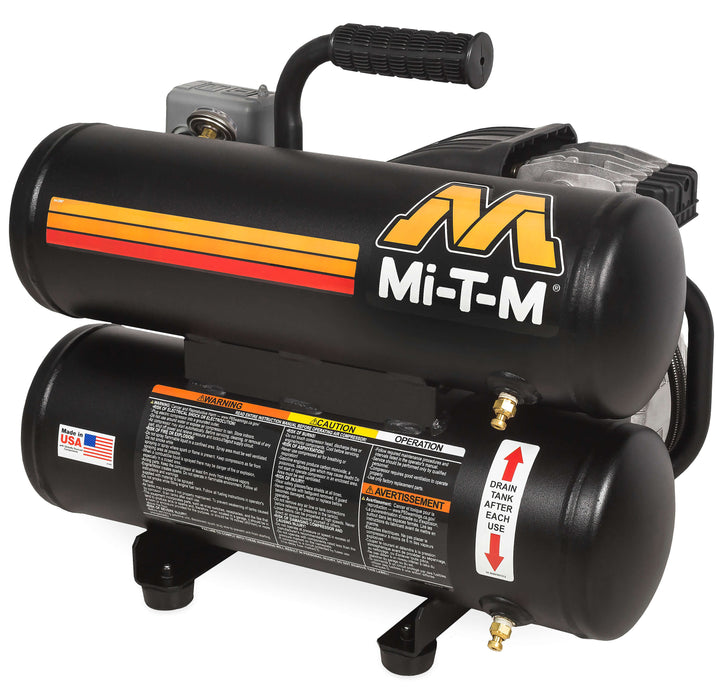

Mi-T-M 5-Gallon Single Stage Electric Air Compressor – AM1-HE02-05M, Portable, 2.0 HP
Part Number: AM1-HE02-05M
Category: Electric Air Compressor (Single Stage, Portable)
The Mi-T-M AM1-HE02-05M is a compact but powerful 5-gallon, 2.0 HP electric air compressor built for contractors, technicians, and homeowners who need dependable air power in a portable footprint. Featuring a cast-iron cylinder pump, twin powder-coated tanks, splash-lubricated crankcase, and industrial-grade components, this unit is ideal for brad nailers, staplers, trim tools, and general shop projects.
Durable, quiet, and easy to transport — the AM1-HE02-05M delivers reliable performance wherever the job takes you.
Key Features
Compressor Pump
-
Cast iron cylinder for long service life
-
Splash-lubricated aluminum crankcase
-
Stainless-steel braided discharge hose
-
Inlet air filter
Motor
-
2.0 HP electric motor (120V)
-
Thermal overload motor protection
-
8-foot power cord
Frame & Construction
-
Powder-coated twin tank assembly (5 gallons total)
-
Protective pump/motor housing
-
Compact, portable form factor
Components
-
Regulator with dual gauges (tank & outlet pressure)
-
Industrial interchange quick-connect fittings
-
Drain valve & pressure relief valve
-
Start/stop control: 95–125 PSI
Specifications
Performance
| Specification | Detail |
|---|---|
| CFM @ 90 PSI | 4.2 |
| Horsepower/Motor | 2.0 HP, 120V, 15.0A |
| Tank Capacity | 5 Gallons (Twin Tank) |
| Pump Type | Splash-Lubricated |
| Plug Type | NEMA 5-15P |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 61 lbs |
| Shipping Weight | 70 lbs |
| Length | 20.50 in |
| Width | 15.50 in |
| Height | 17.50 in |
Warranty
-
1-Year – Compressor Pump
-
1-Year – Electric Motor
