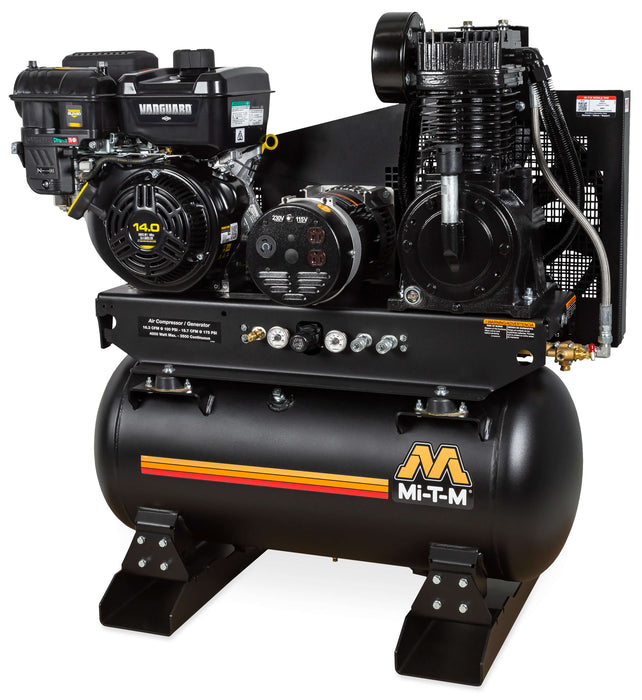

Mi-T-M 30-Gallon Two-Stage Gasoline Air Compressor / Generator – Model AG2-SV14-30M
Model: AG2-SV14-30M
Category: Gasoline Air Compressor Generator Combo | Industrial Combo Units
Starting System: Recoil Start
Engine Brand: Vanguard
The Mi-T-M AG2-SV14-30M is a professional-grade air compressor and generator combination designed for remodelers, contractors, and jobsite professionals who need reliable compressed air and portable power from a single compact unit. Delivering 15.7 CFM at 175 PSI and up to 4,000 watts of generator output, this combo unit provides dependable performance for demanding applications.
Powered by a 408cc Vanguard OHV gasoline engine, the AG2-SV14-30M offers proven durability and consistent output for mobile and stationary jobsite use.
Key Features
Compressor Pump
-
Two-stage cast iron compressor pump
-
Splash lubricated for extended pump life
-
Stainless-steel braided discharge hose
-
Large canister intake filter
-
Oil level sight indicator
Generator
-
Brushless alternator
-
Total harmonic distortion (THD) < 6%
-
100% copper windings
-
Receptacles:
-
(2) NEMA 5-20R – 120V, 20A
-
(1) NEMA L6-20R – 240V, 20A
-
Frame & Construction
-
Powder-coated ASME-certified 30-gallon receiver tank
-
3/16-inch base plate to reduce vibration
-
Powder-coated two-piece belt guard
-
Removable base plate for flexible installation
Components & Controls
-
Regulator with two gauges (tank & outlet pressure)
-
150-PSI maximum rated regulator
-
Manual drain valve for proper maintenance
-
16½-inch flywheel
-
Quality pilot valve unloader
Performance Specifications
Air Compressor Output
| Specification | Value |
|---|---|
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
Generator Output
| Specification | Value |
|---|---|
| Max Alternator Output | 4,000 watts |
| Continuous (Compressor ON) | 2,300 watts |
| Continuous (Compressor OFF) | 3,500 watts |
Engine
| Specification | Detail |
|---|---|
| Engine | Vanguard OHV |
| Displacement | 408cc |
| Fuel Type | Gasoline |
| Starting | Recoil Start |
| Emissions | CARB-compliant engine required for CA (consult factory) |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 450 lbs |
| Shipping Weight | 550 lbs |
| Length | 40.00 in |
| Width | 24.50 in |
| Height | 45.00 in |
Ideal Applications
-
Remodeling and construction jobsites
-
Contractor service trucks
-
Mobile maintenance and repair operations
-
Applications requiring compressed air and generator power in one unit
-
Users preferring Vanguard engine reliability
Warranty
-
2-Year Alternator Warranty
-
2-Year Pump Exchange Warranty
-
3-Year Vanguard Engine Warranty
