Gasoline • Two Stage • 30-Gallon • 9.0 HP • Stationary • Electric Start

Part Number: AM2-SH09-30ME
Category: Gasoline Air Compressor (Two Stage, Stationary)

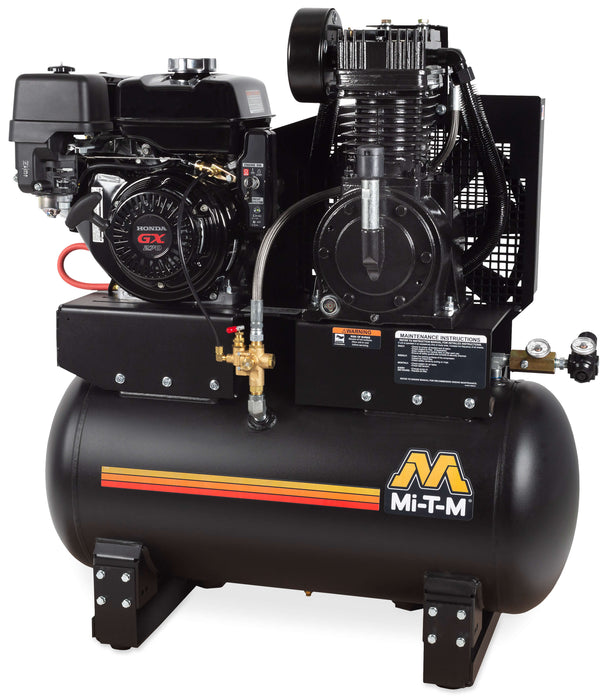

The Mi-T-M AM2-SH09-30ME is a heavy-duty 30-gallon stationary air compressor engineered for contractors, service trucks, industrial shops, and automotive applications requiring consistent, high-pressure air. Powered by a 270cc Honda GX270 OHV engine and delivering 17.2 CFM at 175 PSI, this unit provides dependable airflow for pneumatic tools including impact wrenches, grinders, air hammers, and spray equipment.

With an electric start system (battery/box/cables not included), a cast-iron two-stage pump, and a reinforced ASME-rated receiver tank, this model is built for long-term, high-demand performance on demanding jobsites.

Key Features

Compressor Pump

• Heavy-duty cast iron two-stage pump

• Splash lubricated for long service life

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Engine

• 270cc Honda GX270 OHV – 9.0 HP

• Industrial-grade reliability

• Electric start (battery, box & cables not included)

• Pneumatic idle control

Frame & Construction

• Powder-coated ASME 30-gallon receiver tank

• Reinforced 3/16-inch vibration-reducing base plate

• Powder-coated two-piece belt guard

• Removable base plate for flexible installation on shop floors or service trucks

Components

• Regulator with dual gauges (tank & outlet pressure)

• Manual drain valve

• Quality pilot valve unloader

• 16-1/2-inch flywheel

• Start/stop control set at 145–175 PSI

• Equipped with 150 PSI max-rated regulator

Specifications

Performance

Weights & Dimensions

Warranty

• 2-Year – Pump Exchange

• 3-Year – Honda Engine
