Gasoline • Two Stage • 30-Gallon • 9.0 HP • Stationary

Part Number: AM2-SH09-30M
Category: Gasoline Air Compressor (Two Stage, Stationary)

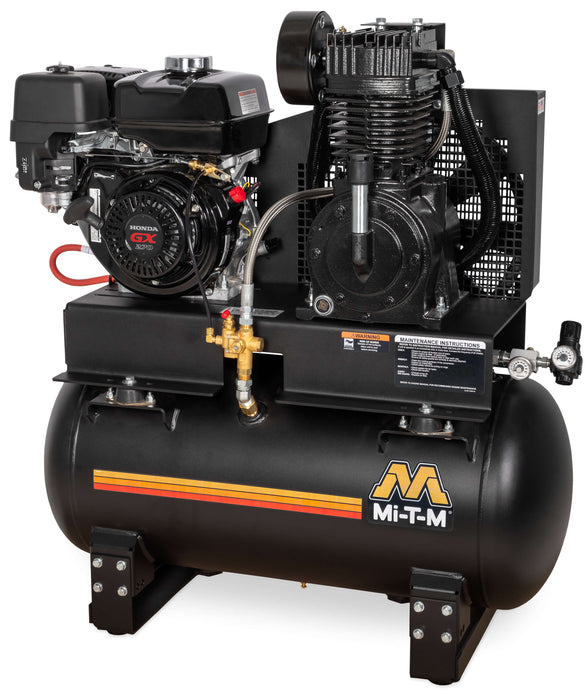

The Mi-T-M AM2-SH09-30M is a rugged, heavy-duty 30-gallon stationary air compressor engineered for contractors, service trucks, industrial shops, and automotive applications requiring reliable high-pressure air. Equipped with a 270cc Honda GX270 OHV engine and a two-stage cast-iron pump, this unit delivers 17.2 CFM at 175 PSI, providing consistent airflow for impact wrenches, grinders, air hammers, spray equipment, and other high-demand pneumatic tools.

Designed for long-term durability, the AM2-SH09-30M features an ASME-rated tank, a vibration-resistant 3/16" base plate, and a removable base plate for flexible mounting on shop floors, trailers, or service vehicles.

Key Features

Compressor Pump

• Heavy-duty cast iron two-stage pump

• Splash-lubricated for extended pump life

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Engine

• 270cc Honda GX270 OHV – 9.0 HP

• Industrial-grade reliability

• Pneumatic idle control

Frame & Construction

• Powder-coated ASME 30-gallon receiver tank

• Reinforced 3/16-inch base plate minimizes vibration

• Powder-coated two-piece belt guard

• Removable base plate for easy installation and service

Components

• Regulator with dual gauges (tank & outlet pressure)

• Manual tank drain valve

• Quality pilot valve unloader

• 16-1/2-inch flywheel for efficient cooling

• Start/stop control set at 145–175 PSI

• Equipped with 150 PSI max-rated regulator

Specifications

Performance

Weights & Dimensions

Warranty

• 2-Year – Pump Exchange

• 3-Year – Honda Engine
