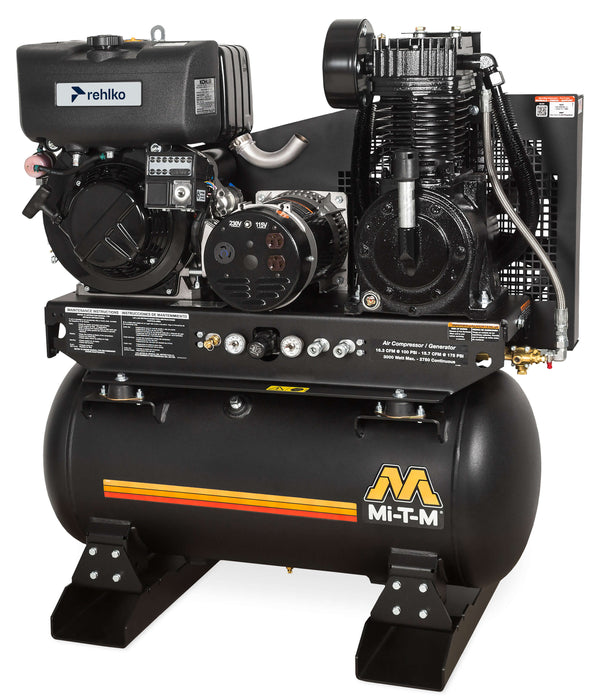

Mi-T-M 30-Gallon Two-Stage Diesel Air Compressor / Generator – Model AG2-SKD9-30M
Model: AG2-SKD9-30M
Category: Diesel Air Compressor Generator Combo | Industrial Combo Units
The Mi-T-M AG2-SKD9-30M combines a two-stage diesel air compressor and a brushless generator into one compact, jobsite-ready solution. Designed for contractors and industrial users who need compressed air and electrical power from a single machine, this unit delivers reliable performance in demanding environments while reducing equipment footprint and transport requirements.
Powered by a 9.1 HP Rehlko (Kohler) KD440 OHV diesel engine, this combo unit offers excellent fuel efficiency, cold-weather reliability, and long service life—making it ideal for remote jobsites, service trucks, and maintenance operations.
Key Features
Compressor Pump
-
Two-stage cast iron compressor pump
-
Splash lubricated for long life
-
Stainless-steel braided discharge hose
-
Large canister intake filter
-
Oil level sight indicator
Generator
-
Brushless alternator
-
Total harmonic distortion (THD) less than 6%
-
100% copper windings
-
Receptacles:
-
(2) NEMA 5-20R – 120V, 20A
-
(1) NEMA L6-20R – 240V, 20A
-
Engine
-
9.1 HP Rehlko (Kohler) KD440 OHV diesel engine
-
Glow plug equipped for easy cold-weather starting
-
Electric start capable (battery, box, and cables not included)
Frame & Construction
-
Powder-coated ASME-certified 30-gallon receiver tank
-
3/16-inch base plate to reduce vibration
-
Powder-coated two-piece belt guard
-
Removable base plate for flexible installation
Components & Controls
-
Regulator with two gauges (tank & outlet pressure)
-
150-PSI maximum rated regulator
-
Manual drain valve for proper maintenance
-
16½-inch flywheel
-
Quality pilot valve unloader
Performance Specifications
Air Compressor Output
| Specification | Detail |
|---|---|
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
Generator Output
| Specification | Detail |
|---|---|
| Max Alternator Output | 3,000 watts |
| Continuous Output (Compressor ON) | 2,300 watts |
| Continuous Output (Compressor OFF) | 3,000 watts |
Engine
| Specification | Detail |
|---|---|
| Engine | Rehlko KD440 OHV |
| Horsepower | 9.1 HP |
| Fuel Type | Diesel |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 489 lbs |
| Shipping Weight | 554 lbs |
| Length | 41.00 in |
| Width | 23.00 in |
| Height | 47.00 in |
Ideal Applications
-
Remote and off-grid jobsites
-
Construction and industrial service work
-
Mobile maintenance trucks
-
Situations requiring compressed air + electrical power from one unit
-
Diesel-preferred environments for fuel efficiency and durability
Warranty
-
2-Year Alternator Warranty
-
2-Year Pump Exchange Warranty
-
3-Year Rehlko (Kohler) Engine Warranty
