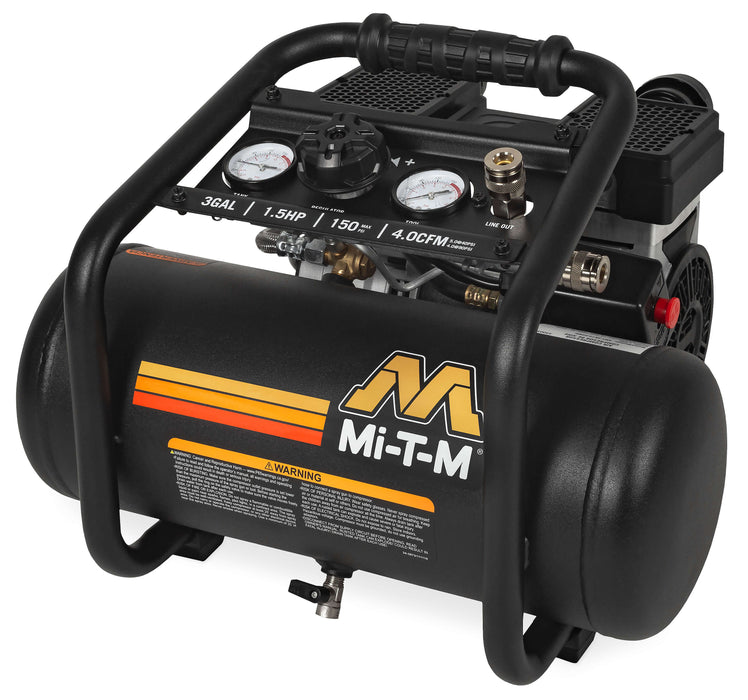

Mi-T-M 3-Gallon Single Stage Electric Air Compressor – AM1-HE15-03QM, Portable, 1.5 HP, Quiet Series
Part Number: AM1-HE15-03QM
Category: Electric Air Compressor (Quiet Series, Portable)
The Mi-T-M AM1-HE15-03QM delivers big power in a compact, ultra-quiet package—ideal for impact wrenches, grinders, trim tools, and general jobsite or home-shop use. With a noise rating under 70 dBA, an oil-free aluminum pump, and a rugged powder-coated tank, this unit is engineered for portability, clean operation, and long service life.
Perfect for contractors, technicians, and DIY users who need reliable compressed air without the bulk or noise of a full-size compressor.
Key Features
Compressor Pump
-
Aluminum single-stage compressor pump
-
Oil-free aluminum crankcase
-
Copper discharge hose
-
Cartridge-style air filter for easy service
Motor
-
Durable induction motor
-
Thermal overload protection to prevent overheating
Frame & Construction
-
Powder-coated 3-gallon tank
-
Protective pump/motor housing
-
Lightweight, compact design for maximum portability
Components
-
Regulator with dual gauges (tank & outlet pressure)
-
Industrial interchange quick-connect fittings
-
Drain valve & pressure relief valve
-
Start/stop control: 95–125 PSI
-
Integrated control panel for simple operation
Miscellaneous
-
Quiet operation: <70 dBA (low-noise performance ideal for indoor use)
Specifications
Performance
| Specification | Detail |
|---|---|
| CFM @ 90 PSI | 4.0 |
| Horsepower/Motor | 1.5 HP, 120V, 15.0A |
| Pump Type | Oil-Free |
| Tank Capacity | 3 Gallons |
| Noise Level | <70 dBA |
| Plug Type | NEMA 5-15P |
Weights & Dimensions
| Measurement | Detail |
|---|---|
| Net Weight | 51 lbs |
| Shipping Weight | 58 lbs |
| Length | 16.00 in |
| Width | 15.50 in |
| Height | 14.50 in |
Warranty
-
1-Year – Compressor Pump
-
1-Year – Electric Motor
