Gasoline • Two Stage • 20-Gallon • 9.0 HP (Stationary)

Part Number: AM2-SH09-20M
Category: Gasoline Air Compressor (Two Stage, Stationary)

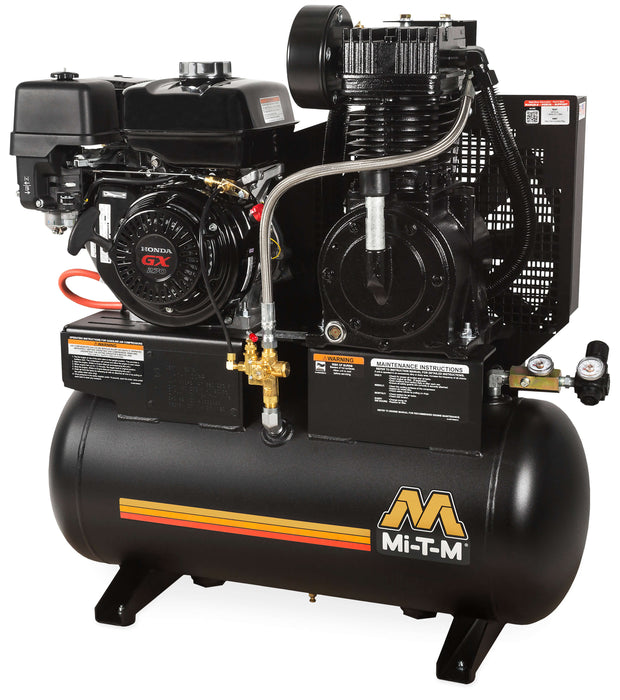

The Mi-T-M AM2-SH09-20M is a stationary 20-gallon, two-stage gasoline air compressor engineered for high-demand applications including construction, industrial service, fleet maintenance, and remote worksites where reliable air output is essential.

Powered by a 270cc Honda GX270 OHV engine and delivering 17.2 CFM @ 175 PSI, this model is built for continuous, rugged performance while maintaining maximum pressure and airflow for professional pneumatic tools.

Key Features

Compressor Pump

• Heavy-duty cast iron two-stage pump

• Splash-lubricated for long service life

• Stainless-steel braided discharge hose

• Large canister intake filter

• Built-in oil level sight indicator

Engine

• 270cc Honda GX270 OHV

• Industrial-grade reliability and long lifespan

• Pneumatic idle control for reduced fuel consumption

• Backed by a 3-Year Honda Engine Warranty

Frame & Construction

• Powder-coated ASME-certified 20-gallon receiver tank

• 3/16-inch steel base plate reduces vibration & enhances stability

• Powder-coated two-piece belt guard

• Stationary skid design — ideal for shop or mounted applications

Components

• Regulator with tank & outlet pressure gauges

• Manual drain valve for routine moisture removal

• Heavy-duty pilot valve unloader

• Large 16.5-inch flywheel for improved pump cooling

• Start/stop control: 145–175 PSI

• Equipped with 150-PSI max rated regulator

Specifications

Performance

Weights & Dimensions

Warranty

• 2-Year – Pump Exchange

• 3-Year – Honda Engine
