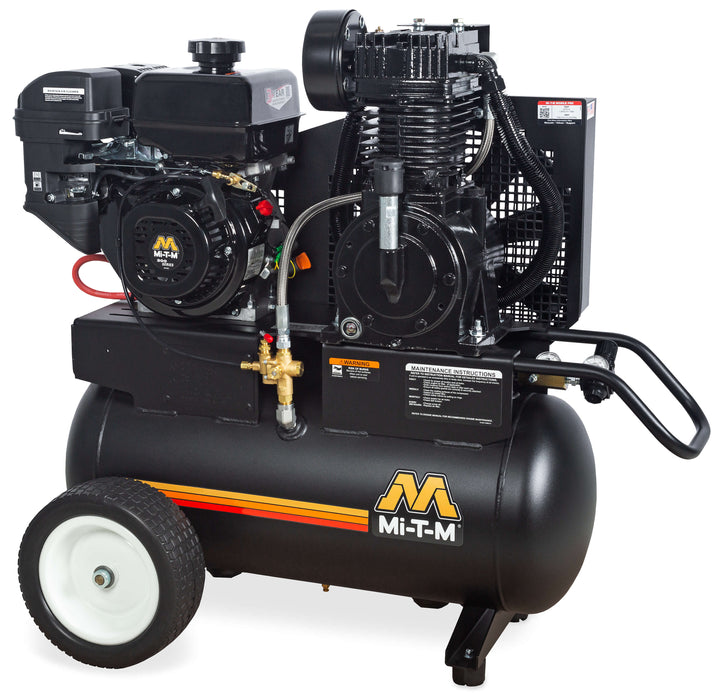

Mi-T-M 20-Gallon Two Stage Gasoline Air Compressor – AM2-PM09-20M, Portable, Mi-T-M Engine, 9.0 HP

Part Number: AM2-PM09-20M
Category: Gasoline Air Compressor (Two Stage, Portable)

The Mi-T-M AM2-PM09-20M is a heavy-duty, two-stage 20-gallon gasoline air compressor engineered for demanding remote worksites where reliable, high-pressure air is essential. Powered by a 300cc Mi-T-M OHV engine, this unit delivers 17.2 CFM @ 175 PSI, making it ideal for framing crews, service trucks, roofing operations, agricultural work, and industrial air tool applications requiring sustained power.

Built around a rugged ASME tank, reinforced frame, and premium two-stage cast-iron pump, this compressor provides unmatched durability, smooth operation, and long service life in tough jobsite environments.

Key Features

Compressor Pump

• Cast iron two-stage compressor pump

• Splash-lubricated for long lifespan

• Stainless-steel braided discharge hose

• Large canister intake filter

• Oil level sight indicator

Engine

• 300cc Mi-T-M OHV gasoline engine

• 9.0 HP output for demanding air requirements

• Pneumatic idle control for fuel savings and smoother operation

• 49-state compliant (check local regulations)

Frame & Construction

• Powder-coated ASME-rated 20-gallon receiver tank

• Heavy-duty 3/16-inch base plate to reduce vibration

• Powder-coated, two-piece belt guard

• 13-inch flat-free tires for jobsite mobility

Components

• Regulator with tank & outlet pressure gauges

• Manual tank drain valve

• 16.5-inch flywheel for cooler pump operation

• Quality pilot valve unloader

• Start/stop pressure control set at 145–175 PSI

• 150 PSI maximum rated outlet regulator

Specifications

Performance

Weights & Dimensions

Warranty

• 2-Year – Pump Exchange

• 3-Year – Mi-T-M Engine
