KIM Stainless Steel Ball Bearing Pressure Washer Swivel – 1/4" MPT x 1/4" FPT, 3500 PSI
Part Number: 3786
Category: Pressure Washer Parts → Swivels & Fittings
Type: KIM Stainless Steel Ball Bearing Pressure Washer Swivel – 1/4" MPT x 1/4" FPT, 3500 PSI

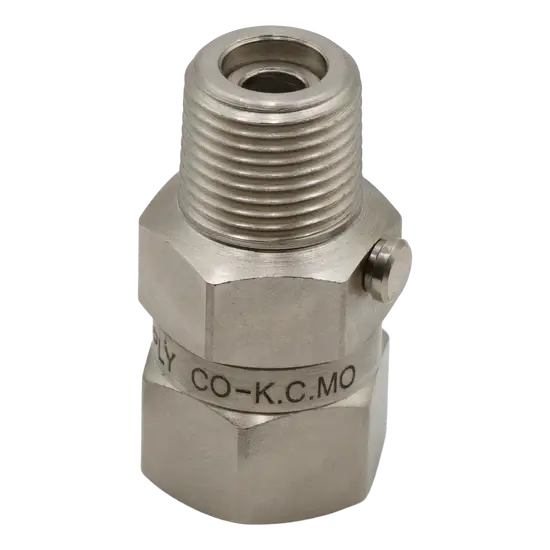

The KIM Stainless Steel Ball Bearing Pressure Washer Swivel (Part #3786) is a premium high-pressure swivel manufactured by Suttner for professional pressure washing, industrial cleaning, wash bays, spray guns, hose reels, and high-pressure hose applications. Featuring a precision ball bearing design, this swivel provides exceptionally smooth 360-degree rotation under pressure, helping eliminate hose twisting, reduce operator fatigue, and extend hose service life.
Key Features & Benefits
- Genuine KIM high-pressure ball bearing swivel
- Part Number: 3786
- Manufactured by Suttner
- Precision ball bearing swivel design
- 1/4" Female NPT inlet
- 1/4" Male NPT outlet
- Smooth 360° swivel rotation under pressure
- Constructed from 304 stainless steel
- Rated for systems up to 3,500 PSI
- Maximum operating temperature: 180°F
- Excellent corrosion resistance
- Helps prevent hose twisting and kinking
- Reduces stress on hoses and fittings
- Heavy-duty commercial construction
Technical Specifications
Part Number: 3786
Manufacturer: Suttner
Product Type: Ball Bearing Pressure Washer Swivel
Inlet Connection: 1/4" Female NPT
Outlet Connection: 1/4" Male NPT
Maximum Working Pressure: 3,500 PSI
Maximum Temperature: 180°F
Material: 304 Stainless Steel
Bearing Type: Ball Bearing
Swivel Rotation: 360°
OEM Replacement: Yes
Compatible Applications
Suitable for use with:
- Commercial pressure washers
- Industrial pressure washing systems
- Hot and cold water pressure washers
- Pressure washer spray guns
- Spray wands and lances
- High-pressure hose assemblies
- Hose reels
- Surface cleaners
- Wash bay equipment
- Fleet washing systems
- Agricultural cleaning equipment
- Industrial fluid transfer systems
Always verify thread size, pressure rating, temperature rating, and equipment compatibility before ordering.
Function of the Swivel
The KIM Ball Bearing Pressure Washer Swivel helps:
- Provide smooth 360° rotation under pressure
- Prevent hose twisting and kinking
- Reduce stress on hoses and plumbing components
- Improve spray gun maneuverability
- Maintain uninterrupted high-pressure water flow
- Extend the service life of hoses, spray guns, and fittings
Its precision ball bearing design minimizes rotational resistance, providing exceptionally smooth swivel performance during continuous operation.
Common Signs Replacement Is Needed
Replace the swivel if you notice:
- Water leaking around the swivel body
- Restricted or rough swivel rotation
- Excessive hose twisting
- Damaged or worn threads
- Corrosion or physical damage
- Bearing wear or excessive rotational play
Replacing a worn swivel restores smooth hose movement and dependable system performance.
Installation & Service Notes
Turn off the pressure washer and relieve all system pressure before installation.
Apply an appropriate thread sealant where required and install the swivel using the 1/4" Female NPT inlet and 1/4" Male NPT outlet connections.
Tighten all fittings securely without overtightening.
Verify the swivel rotates freely and inspect all connections for leaks before placing the equipment into service.
Important: Never exceed the maximum 3,500 PSI working pressure or 180°F operating temperature. Always verify compatibility with your pressure washer system and connected accessories before installation.
Maintenance Recommendations
- Inspect the swivel regularly for leaks and smooth rotation.
- Check threaded connections during routine maintenance.
- Keep the swivel clean and free of dirt, debris, and mineral buildup.
- Replace worn seals or damaged components promptly.
- Inspect hoses for twisting or abnormal wear during operation.
- Use only genuine OEM replacement parts to maintain proper fit, reliable performance, and long-term service life.
