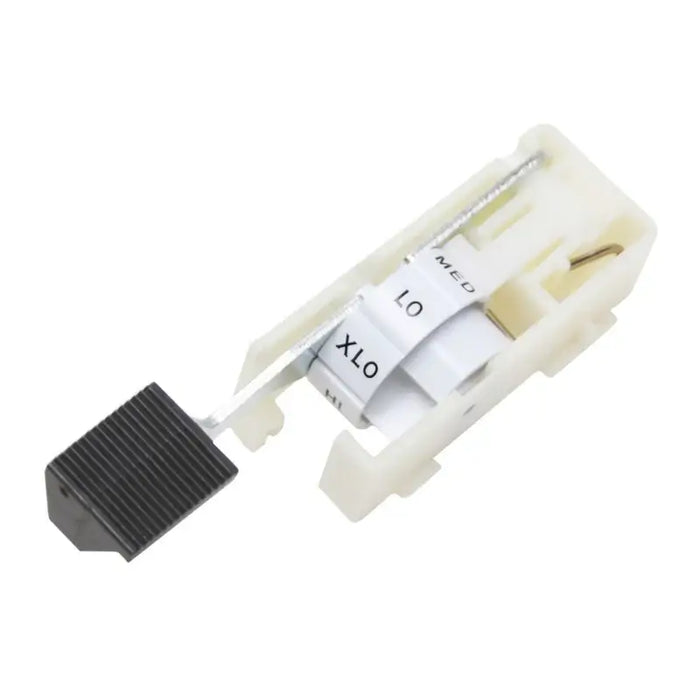

Kenmore KS588543 / 8191506 Power Nozzle Indicator Block Assembly – Genuine OEM Replacement Vacuum Cam Pedal Unit

Part Number: KS588543
Category: Vacuum Parts & Accessories → Vacuum Power Nozzle Components → Cam Pedals & Indicator Assemblies
Type: Kenmore KS588543 / 8191506 Power Nozzle Indicator Block Assembly – Genuine OEM Replacement Vacuum Cam Pedal Unit

The Kenmore KS588543 / 8191506 Power Nozzle Indicator Block Assembly is a genuine OEM replacement cam pedal unit designed for compatible Kenmore PowerMate power nozzle assemblies. This precision component functions as part of the power nozzle's pedal and indicator mechanism, helping actuate internal components while supporting smooth operation of the nozzle controls. Manufactured to original equipment specifications, it provides a direct-fit replacement for worn, cracked, or damaged cam pedal assemblies, helping restore proper operation and dependable performance of the PowerMate nozzle.

Key Features & Benefits

• Part Number: KS588543 / 8191506
• Alternate Part Number: 747291
• Genuine OEM Kenmore replacement part
• Replacement Power Nozzle Indicator Block Assembly (Cam Pedal Unit)
• Supports proper operation of the PowerMate pedal mechanism
• Helps maintain smooth movement of internal nozzle components
• Durable precision-molded construction
• Direct-fit OEM replacement
• Manufactured to original equipment specifications

Technical Specifications

Part Number: KS588543 / 8191506

Alternate Part Number: 747291

Manufacturer: Kenmore

Product Type: Power Nozzle Indicator Block Assembly (Cam Pedal Unit)

OEM Part: Yes

Application: PowerMate Nozzle Control & Cam Mechanism

Compatible Applications

The Kenmore KS588543 / 8191506 Power Nozzle Indicator Block Assembly fits select:

• Kenmore 116.54212400 PowerMate Vacuum
• Kenmore 116.5718180 PowerMate Vacuum
• Kenmore 116.2511290 PowerMate Vacuum
• Kenmore 116.5319190 PowerMate Vacuum
• Other compatible Kenmore PowerMate nozzle assemblies utilizing Part #KS588543 or #8191506

Always verify your vacuum model number and original part number before ordering to ensure proper compatibility.

Function of the Power Nozzle Indicator Block Assembly

The Kenmore KS588543 / 8191506 Power Nozzle Indicator Block Assembly serves as part of the PowerMate nozzle's internal control mechanism. It helps to:

• Support proper operation of the cam pedal mechanism
• Assist movement of internal nozzle components
• Maintain proper alignment of the pedal assembly
• Promote smooth operation of the PowerMate controls
• Help restore dependable nozzle functionality
• Maintain the vacuum's original operating performance

Using a genuine OEM replacement cam pedal unit helps ensure proper fit, smooth operation, and long-term vacuum reliability.

Common Signs Replacement Is Needed

Replace the indicator block assembly if you notice:

• Broken or cracked cam pedal unit
• Pedal binding or sticking during operation
• Loose or damaged internal nozzle components
• Difficulty operating the PowerMate controls
• Excessive wear from repeated use
• Missing or damaged indicator block assembly

A worn or damaged cam pedal unit can affect the operation of the PowerMate nozzle and reduce the reliability of its control mechanism.

Installation & Service Notes

Disconnect the vacuum from the power source before performing any repairs.

Disassemble the PowerMate nozzle according to the manufacturer's service instructions to access the KS588543 / 8191506 Power Nozzle Indicator Block Assembly. Remove the damaged assembly and inspect the surrounding cam mechanism, springs, and related components for wear or damage. Install the replacement assembly in its original position, ensuring all moving components operate freely and are properly aligned. Reassemble the nozzle and verify smooth pedal operation before returning the vacuum to service.

Important: Always verify your vacuum model number and original part number before ordering. Use genuine OEM Kenmore replacement components to ensure proper fit, reliable operation, and long-term PowerMate performance.

Maintenance Recommendations

• Keep the PowerMate nozzle free of dirt and debris.
• Inspect the pedal mechanism during routine maintenance.
• Avoid applying excessive force to the pedal controls.
• Replace worn or damaged internal nozzle components promptly.
• Verify smooth pedal operation after servicing the nozzle.
• Use genuine OEM replacement parts to maintain factory fit, dependable PowerMate operation, and long-term vacuum reliability.
