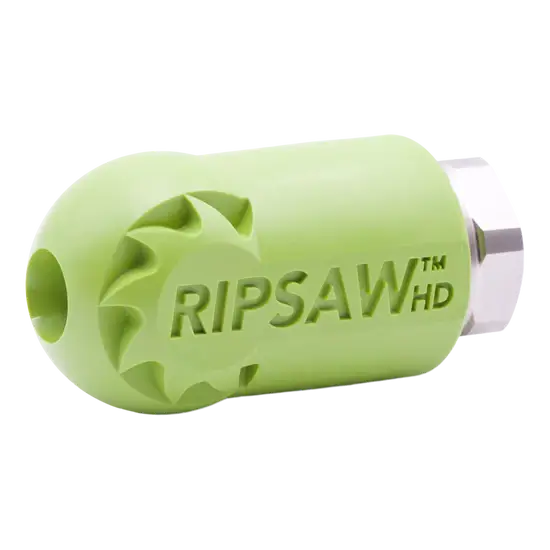

Hydra-Flex RIPSAW™ Rotating Turbo Nozzle – HD 6.0 Orifice, 3200 PSI Pressure Washer Nozzle

Part Number: 7183
Category: Pressure Washer Parts & Accessories → Pressure Washer Nozzles → Turbo Nozzles
Type: Hydra-Flex RIPSAW™ Rotating Turbo Nozzle – HD 6.0 Orifice, 3,200 PSI Pressure Washer Nozzle

The Hydra-Flex RIPSAW™ Rotating Turbo Nozzle (Part #7183) is a premium heavy-duty rotating pressure washer nozzle engineered for demanding commercial, industrial, and hydro-excavation cleaning applications. Featuring an HD 6.0 orifice, 1/2" FPT inlet, and an operating pressure range of 1,000–3,200 PSI, this turbo nozzle combines the concentrated cleaning force of a zero-degree spray with a high-speed rotating action to deliver exceptional cleaning performance while covering more surface area.

Key Features & Benefits

• Part Number: 7183
• Genuine Hydra-Flex RIPSAW™ Rotating Turbo Nozzle
• HD 6.0 orifice
• 1/2" FPT inlet
• Operating pressure range: 1,000–3,200 PSI
• Maximum operating temperature: 180°F
• Heavy-duty urethane protective coating
• Stainless steel housing
• Tungsten carbide nozzle tip for extended wear resistance
• High-speed rotating spray pattern for aggressive cleaning
• Non-conductive urethane cover
• Ideal for commercial, industrial, and hydro-excavation applications

Technical Specifications

Part Number: 7183

Manufacturer: Hydra-Flex

Product Line: RIPSAW™

Product Type: Rotating Turbo Nozzle

Orifice Size: 6.0 HD

Inlet Connection: 1/2" FPT

Operating Pressure: 1,000–3,200 PSI

Maximum Temperature: 180°F

Housing Material: Stainless Steel

Protective Cover: Heavy-Duty Urethane (Non-Conductive)

Nozzle Tip Material: Tungsten Carbide

Compatible Applications

Ideal for cleaning:

• Concrete and masonry
• Sidewalks and parking lots
• Construction equipment
• Heavy machinery
• Agricultural equipment
• Industrial facilities
• Fleet vehicles
• Hydro-excavation equipment
• Municipal maintenance equipment
• Commercial pressure washing applications

Function of the RIPSAW™ Turbo Nozzle

The Hydra-Flex RIPSAW™ HD 6.0 Turbo Nozzle generates a rapidly spinning high-pressure water jet that combines concentrated impact with a rotating spray pattern. This design helps to:

• Remove stubborn dirt, grease, mud, and heavy buildup
• Increase cleaning efficiency on durable surfaces
• Cover larger areas more quickly
• Reduce operator fatigue during extended use
• Deliver consistent, high-impact cleaning performance
• Protect the nozzle from impacts with its heavy-duty urethane coating

Common Signs Replacement Is Needed

Replace the turbo nozzle if you notice:

• Reduced cleaning performance
• Uneven or distorted spray pattern
• Nozzle no longer rotates properly
• Excessive vibration or internal noise
• Water leaking from the nozzle body
• Damaged urethane protective cover
• Worn tungsten carbide nozzle tip
• Damaged inlet threads or housing

Replacing a worn turbo nozzle restores maximum cleaning efficiency and reliable rotating performance.

Installation & Service Notes

Turn off the pressure washer and relieve all system pressure before replacing the nozzle.

Install the Hydra-Flex RIPSAW™ Rotating Turbo Nozzle (Part #7183) onto a compatible spray lance using the 1/2" FPT inlet. Tighten securely according to the pressure washer manufacturer's specifications and verify that the nozzle rotates freely before operation.

Important: Match the HD 6.0 orifice to your pressure washer's flow rate for optimum performance. Operate only within the specified pressure range of 1,000–3,200 PSI and do not exceed the maximum operating temperature of 180°F. This turbo nozzle is intended for use on durable surfaces only and should not be used on painted finishes, vehicles, glass, soft wood, or other delicate materials that may be damaged by concentrated high-pressure spray.

Maintenance Recommendations

• Flush the nozzle thoroughly with clean water after every use.
• Inspect the tungsten carbide tip regularly for wear.
• Check the urethane protective cover for cuts or impact damage.
• Inspect the rotating mechanism for smooth operation.
• Use clean, filtered water whenever possible to maximize service life.
• Store the nozzle in a clean, dry location when not in use.
• Replace the nozzle if rotation becomes inconsistent or cleaning performance declines to maintain peak productivity and reliability.
