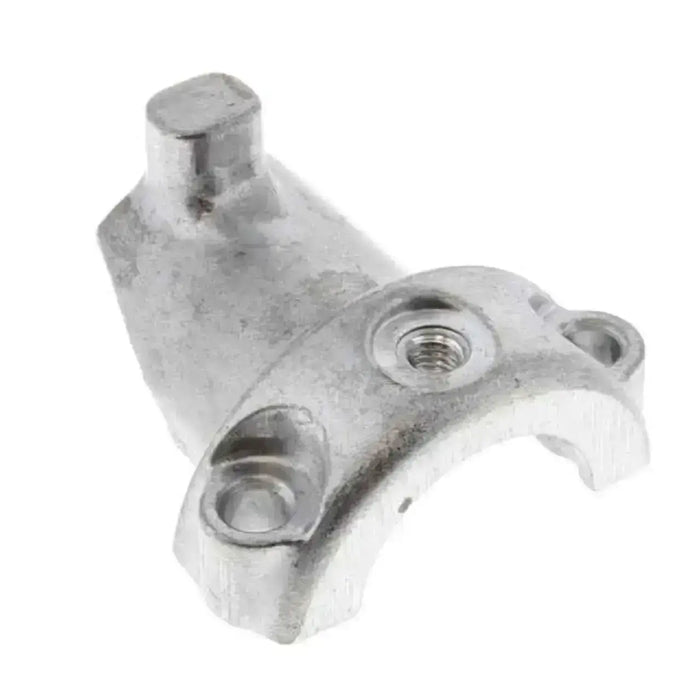

Husqvarna 576420702 M5x0.8 Upper Bracket – Genuine OEM Replacement Equipment Bracket
Part Number: 576420702
Category: Trimmer, Brushcutter & Handheld Equipment Components
Type: M5x0.8 Upper Bracket – Genuine OEM Replacement Equipment Bracket
The Husqvarna 576420702 M5x0.8 Upper Bracket is a genuine OEM replacement support bracket designed for select Husqvarna string trimmers, brushcutters, edgers, hedge trimmers, pole saws, and compatible handheld outdoor power equipment.
Product Specifications
- Part Number: 576420702
- Manufacturer: Husqvarna
- Product Type: Upper Bracket
- OEM Description: BRACKET UPPER M5X0.8
- Alternate Description: Upper Equipment Bracket / M5x0.8 Bracket / Engine Support Bracket
- Component Type: Equipment Support / Mounting Component
- Primary Application: String Trimmer / Brushcutter / Handheld Outdoor Power Equipment
- System: Engine / Crankcase / Clutch Area – Model Dependent
- Position: Upper
- Associated Thread Reference: M5x0.8
- Associated Components: Lower Bracket / Cushion / Clutch Components / Housing – Model Dependent
- Companion Lower Bracket: 576420802 in applicable assemblies
- Replacement Type: Direct OEM Replacement
- OEM Status: Genuine Husqvarna OEM Part
- Condition: New
- Quantity: 1 Upper Bracket
- Part Number Reference: 576420702
- Alternate Number Format: 576 42 07-02
- UPC Reference: 705788578610
Features & Benefits
- Genuine Husqvarna OEM replacement component
- Factory-designated BRACKET UPPER M5X0.8
- Designed for compatible Husqvarna handheld equipment
- Provides structural support within the applicable assembly
- Helps maintain proper positioning of associated components
- Works with the corresponding lower bracket in applicable configurations
- Helps maintain original equipment alignment
- Application-specific shape and mounting geometry
- Designed to match the factory installation configuration
- Suitable for replacing bent, cracked, distorted, or damaged brackets
- Used across select trimmer and brushcutter applications
- Direct replacement for equipment specifying 576420702
- Sold individually
Upper Bracket Function
The 576420702 serves as an upper structural bracket within the applicable handheld equipment assembly.
A simplified arrangement can be represented as:
Upper Bracket 576420702 → Cushion / Supported Assembly → Lower Bracket 576420802
The exact configuration varies by model, but Husqvarna parts diagrams show the upper and lower brackets positioned with associated clutch, cushion, bearing, and housing components.
The bracket helps maintain the physical relationship between these components during equipment operation.
Upper & Lower Bracket Arrangement
In applicable equipment, 576420702 is paired with:
576420802 – Lower Bracket
The two components occupy different positions and should not automatically be treated as interchangeable.
Upper Bracket
576420702 – installs in the specified upper position.
Lower Bracket
576420802 – installs in the corresponding lower position.
Their shapes, mounting relationships, and surrounding components are determined by the specific equipment design.
M5x0.8 Identification
The factory description specifically identifies the component as:
BRACKET UPPER M5X0.8
The M5x0.8 designation refers to the metric fastener/thread specification associated with the bracket description.
When servicing the assembly, use only the correct equipment-specific hardware and do not assume that visually similar fasteners are interchangeable.
Handheld Equipment Applications
Parts references identify 576420702 for a range of Husqvarna handheld equipment, including applicable:
- String trimmers
- Brushcutters
- Edgers
- Hedge trimmers
- Pole saws
Known model families using the bracket include applications such as the 125RJ, 130C, 130L, 322L, 522L, 524L, and multiple 525-series machines, although compatibility varies by production version.
Always verify the exact model and serial/product information before ordering.
Structural Support Function
A bracket's primary purpose is to provide a rigid mounting or supporting interface between components.
Within the applicable assembly, 576420702 helps maintain:
- Component positioning
- Mechanical support
- Assembly alignment
- Proper mounting geometry
- Separation between adjoining components
Because handheld equipment produces vibration during operation, correct bracket condition and mounting are important.
Vibration & Bracket Condition
Trimmers and brushcutters operate at relatively high engine speeds and naturally generate vibration.
A damaged or loose bracket can potentially contribute to:
- Component movement
- Rattling
- Misalignment
- Abnormal vibration
- Increased stress on mounting hardware
- Wear of adjoining components
If the original bracket failed, inspect the surrounding assembly for the underlying cause rather than replacing only the bracket.
Common Reasons for Replacement
Replacement of the 576420702 M5x0.8 Upper Bracket may be appropriate if the original has:
- Bent
- Cracked
- Become distorted
- Developed mounting-point damage
- Sustained impact damage
- Developed excessive wear
- Become loose
- Been damaged during engine service
- Been damaged during clutch service
- Developed corrosion
- Been lost during disassembly
A bracket that no longer maintains its original shape or mounting position should generally be replaced.
Possible Signs of Bracket Damage
Depending on the exact equipment configuration, a damaged upper bracket may contribute to:
- Excessive vibration
- Loose components
- Rattling
- Improper component alignment
- Movement around the clutch or engine assembly
- Difficulty securing associated components
- Visible bracket distortion
- Repeated loosening of mounting hardware
These symptoms can also originate from damaged cushions, housings, bearings, clutch components, or fasteners.
Bracket Inspection
Inspect the existing 576420702 for:
- Cracks
- Bending
- Distortion
- Corrosion
- Enlarged mounting points
- Damaged mounting surfaces
- Excessive wear
- Missing material
- Impact damage
Pay particular attention to areas around fasteners and component-contact surfaces.
Lower Bracket Inspection
Whenever replacing the upper bracket, inspect the corresponding 576420802 lower bracket where used.
Check for:
- Cracks
- Bending
- Distortion
- Loose mounting
- Excessive wear
- Damaged fastener locations
Damage to one bracket may indicate that the adjoining bracket has also experienced abnormal loading.
Cushion Inspection
Husqvarna parts diagrams show 576420501 Cushion alongside the bracket components in applicable assemblies.
Inspect the cushion for:
- Cracking
- Compression
- Deterioration
- Tearing
- Distortion
- Missing material
A deteriorated cushion may allow additional movement or vibration within the assembly.
Clutch Area Inspection
Because Husqvarna diagrams place 576420702 in assemblies containing clutch-related components, inspect the applicable area for:
- Loose hardware
- Damaged clutch components
- Bearing wear
- Housing damage
- Excessive movement
- Abnormal wear
For example, Husqvarna's 525RS parts documentation shows 576420702 alongside the lower bracket, upper cushion, clutch housing, and bearing.
Mounting Hardware Inspection
Inspect applicable:
- Bolts
- Screws
- Washers
- Retainers
- Threaded mounting points
Look for:
- Damaged threads
- Bending
- Corrosion
- Missing hardware
- Stripped mounting points
- Looseness
Correct hardware is necessary for the replacement bracket to remain securely installed.
Upper Bracket vs. Lower Bracket
Do not select the bracket solely by approximate shape.
The upper and lower brackets have separate OEM part numbers:
Upper: 576420702
Lower: 576420802
Always confirm which position requires replacement before ordering.
Why Correct Bracket Fitment Matters
Equipment brackets that appear similar can differ in:
- Overall dimensions
- Mounting-hole locations
- Contours
- Fastener configuration
- Component clearances
- Upper/lower orientation
- Equipment compatibility
An incorrect bracket may prevent surrounding components from aligning correctly.
For this reason, use 576420702 as the primary replacement reference.
Installation Considerations
Before replacing 576420702:
- Shut off the equipment completely.
- Allow the engine and muffler to cool.
- Disconnect the spark plug.
- Drain or secure fuel as appropriate before extensive disassembly.
- Place the equipment on a stable work surface.
- Locate the upper bracket assembly.
- Photograph the original configuration if helpful.
- Note the location of surrounding components.
- Remove applicable covers or housings.
- Remove the necessary mounting hardware.
- Carefully remove the existing upper bracket.
- Inspect the corresponding lower bracket.
- Inspect applicable cushions and mounting components.
- Check surrounding clutch or housing components.
- Inspect all mounting hardware.
- Clean the applicable mounting surfaces.
- Compare the replacement 576420702 with the original.
- Position the new upper bracket correctly.
- Reinstall applicable components in their original sequence.
- Install the correct mounting hardware.
- Tighten hardware according to model-specific requirements.
- Verify proper component alignment.
- Confirm that no moving components contact the bracket.
- Reinstall all covers and guards.
- Reconnect the spark plug.
- Test equipment operation in a safe, controlled area.
Installation Tips
During installation:
- Photograph the original assembly before disassembly
- Keep mounting hardware organized
- Note the upper bracket orientation
- Inspect the lower bracket at the same time
- Check applicable cushions for deterioration
- Inspect mounting points for cracks
- Use the correct hardware
- Make sure the bracket seats properly
- Avoid cross-threading metric fasteners
- Do not overtighten hardware
- Verify component clearance after installation
- Reinstall all applicable guards and housings
OEM Parts Diagram Verification
Official Husqvarna illustrated parts documentation lists 576420702 as a BRACKET, quantity one, in applicable equipment assemblies. The same diagrams identify 576420802 as the corresponding second bracket and show related clutch, cushion, housing, bearing, and fastener components.
This makes the equipment's model-specific parts diagram the best reference for determining the exact installation position.
Maintenance Tips
To help maintain reliable equipment operation:
- Inspect mounting brackets during engine service
- Check fasteners for looseness
- Investigate abnormal vibration promptly
- Inspect cushions and vibration-isolation components
- Replace bent or cracked brackets
- Check housings for damage
- Inspect bearings when excessive movement is present
- Keep mounting areas free of excessive debris
- Replace missing hardware
- Follow model-specific service procedures
Important Notes
- Verify compatibility with your exact equipment model, product number, serial number, and production revision before ordering.
- Match part number 576420702 directly with the applicable OEM parts documentation.
- 576420702 is identified as BRACKET UPPER M5X0.8.
- Official Husqvarna parts diagrams identify 576420702 as a bracket used in applicable handheld equipment assemblies.
- The corresponding lower bracket is 576420802 in applicable configurations.
- This component is used on select Husqvarna trimmers, brushcutters, and other handheld equipment; exact fitment is model dependent.
- Do not assume every Husqvarna trimmer or brushcutter uses 576420702.
- Do not confuse the upper bracket with the corresponding lower bracket.
- Do not select a replacement bracket solely by approximate dimensions or appearance.
- Mounting geometry, position, fastener configuration, component clearance, and equipment compatibility must match.
- Use 576420702 as the primary fitment reference.
- Inspect the corresponding lower bracket, cushion, housing, and mounting hardware whenever replacing the upper bracket.
- Investigate excessive vibration or repeated bracket failure for additional damaged components.
- Do not cut, drill, grind, bend, weld, reshape, or otherwise modify the replacement bracket to force fitment.
- Shut off the engine, allow it to cool, and disconnect the spark plug before servicing engine or clutch-area components.
- Reinstall all applicable covers, housings, and protective components before operating the equipment.
- This listing is for one Husqvarna 576420702 M5x0.8 Upper Bracket only unless otherwise specified. Lower bracket, cushion, clutch components, bearings, housings, bolts, screws, and other associated components are sold separately unless explicitly included.
- Match Husqvarna 576420702 with your equipment's OEM parts documentation before ordering to ensure proper fitment.
